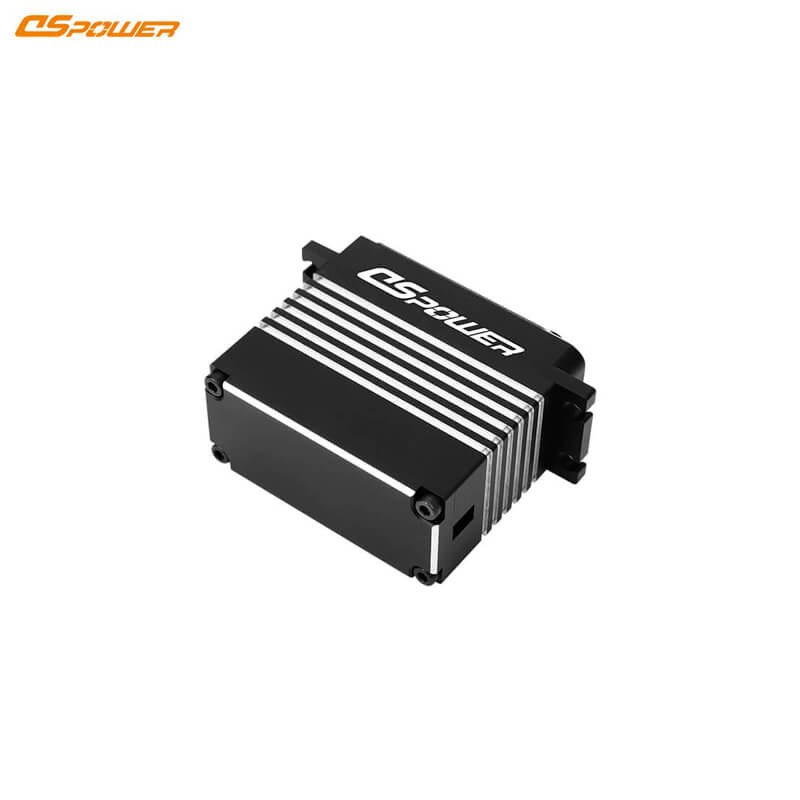

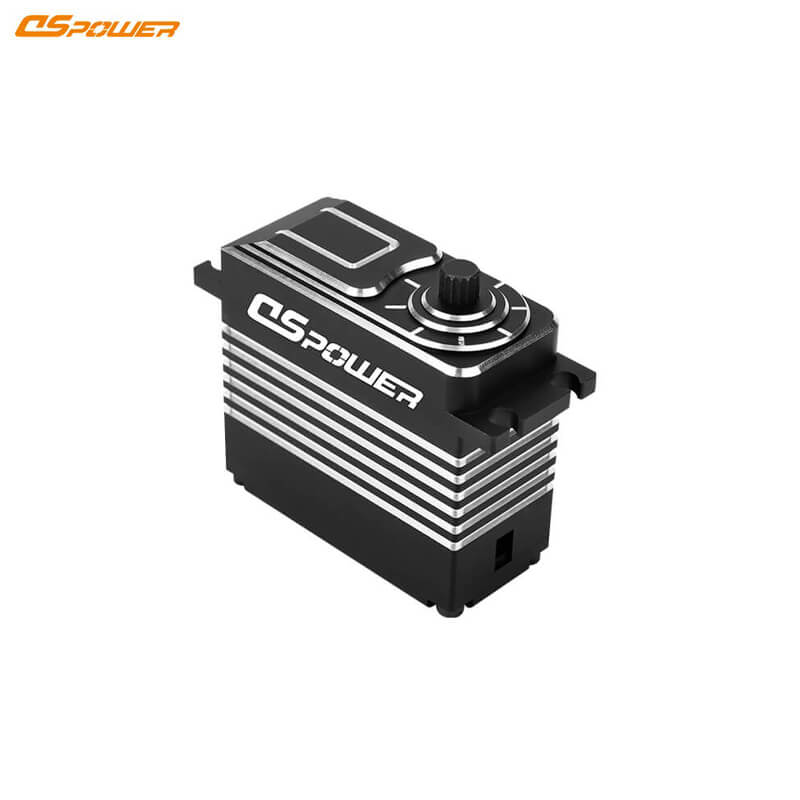

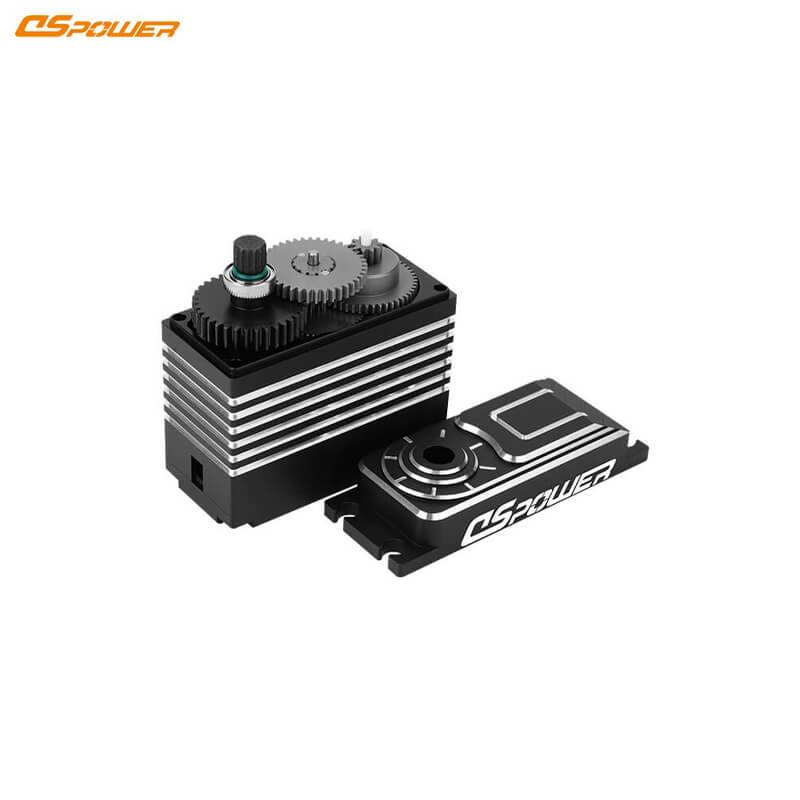

DSpower DS-R009F Servo Motor
Regular price
$400.00
Unit price
DSpower DS-R009F Servo Motor - DS-R009F is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
DSpower DS-R009F Servo Motor
Regular price
$400.00
Unit price
DSpower DS-R009F Servo Motor - DS-R009F is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Operating Voltage | 9~30V DC |
| Static current | ≤70mA at 24V |
| Stall Current | ≤4A at 24V |
| Stall Torque | ≥150kgf·cm at 24V |
| Rotating Direction | CCW (500 ~ 2500us) |
| No-load speed | ≤0.27S/60° at 24V |
| Pulse Width Range | 500 ~ 2500us |
| Operating Travel Angle | 180°±10° |
| Return Angle Deviation | ≤1° |
| Weight | 350±2 g |
| Communication Interface | PWM |
| Wire length | ≤1° (Note: value appears incorrect; may need check) |
| Output shaft | 11T |
| Plug | JR-2.54mm |
| Lifting torque | 100KG (10KG load at 10cm, up/down 10 times) |
| Protection mechanism | Overload protection / Overcurrent protection |
