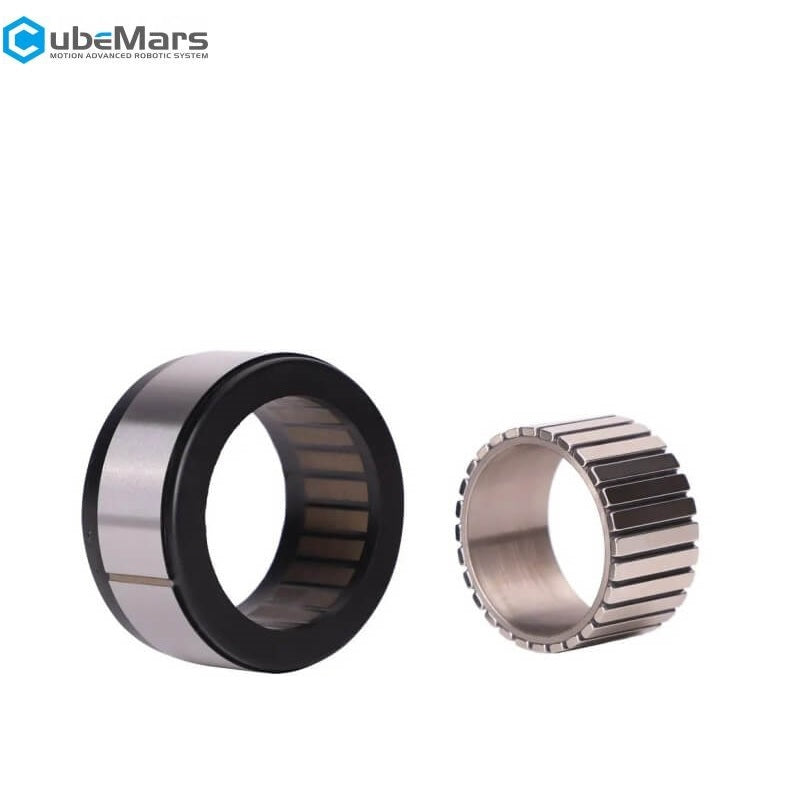

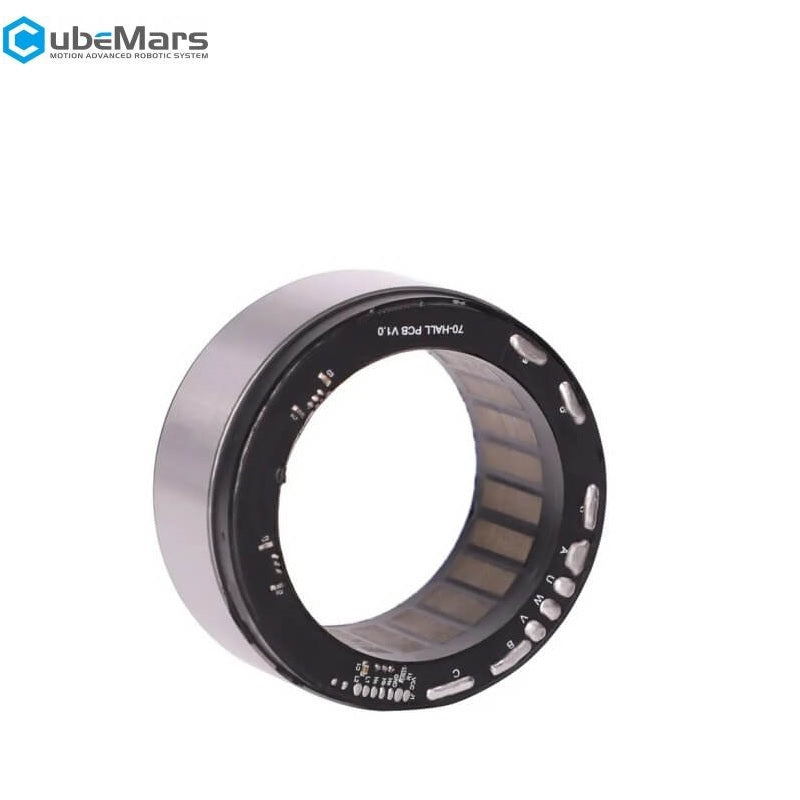

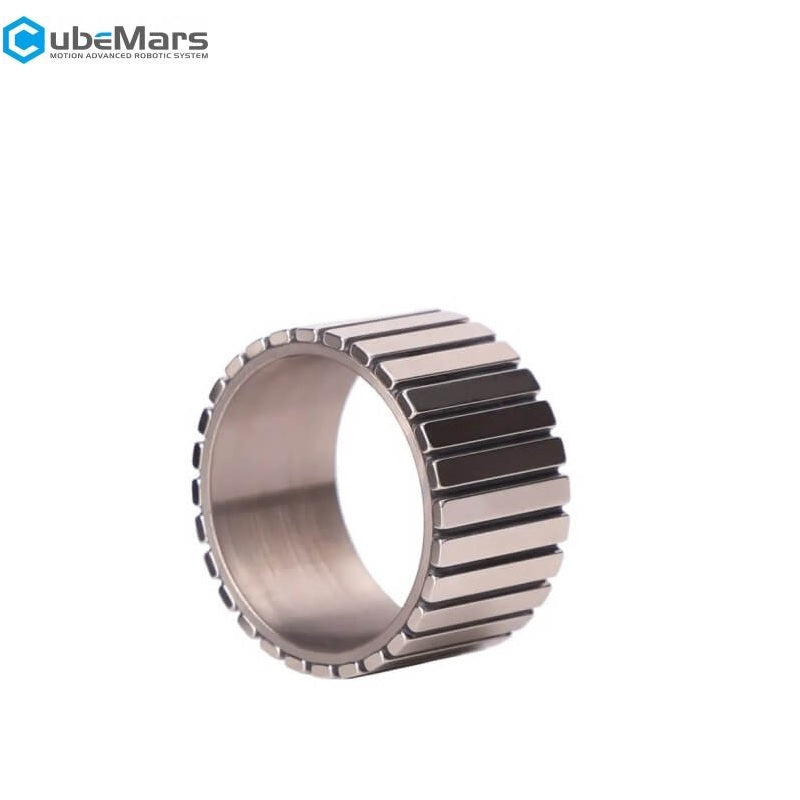

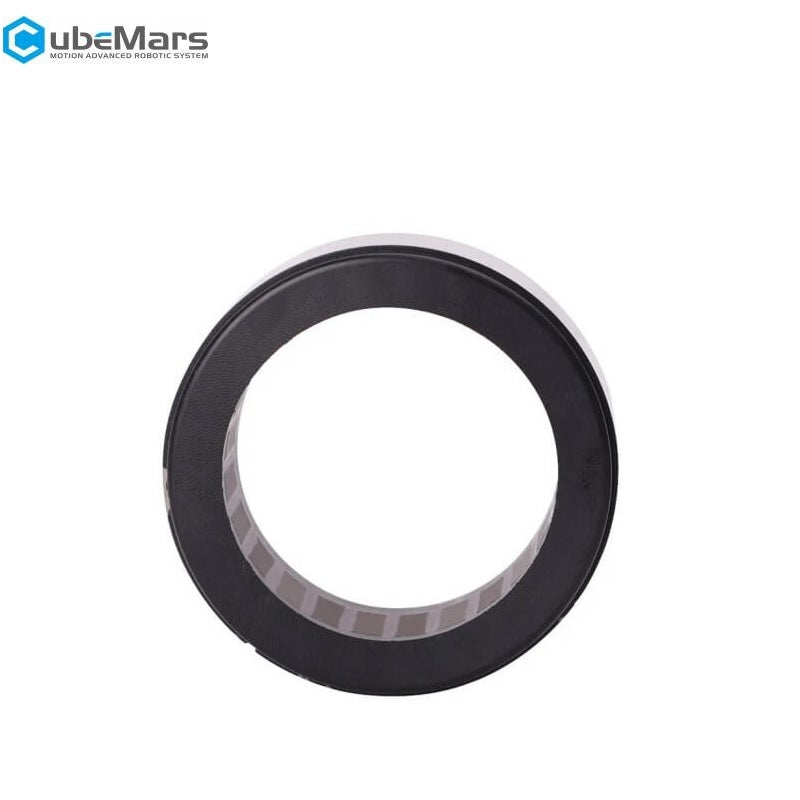

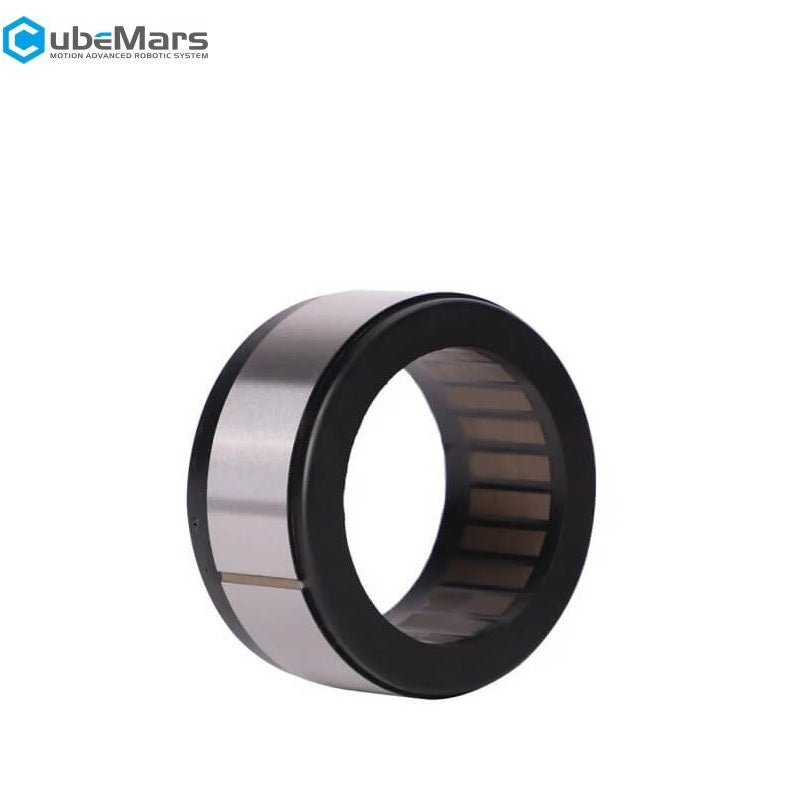

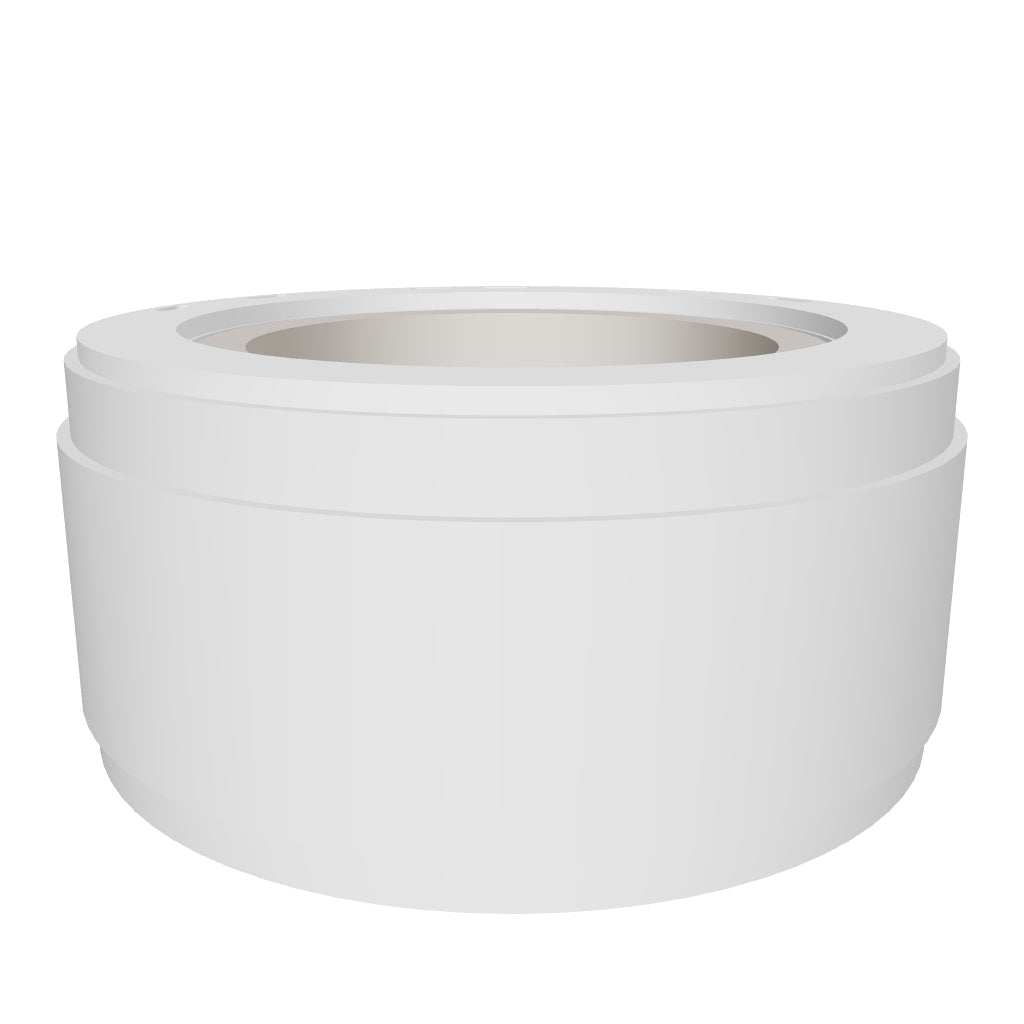

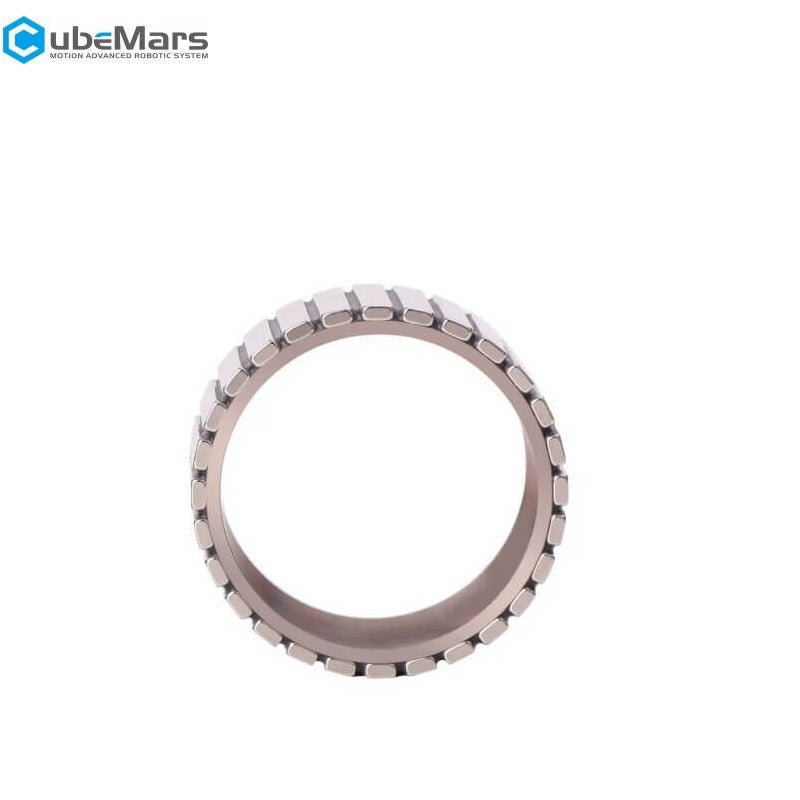

CubeMars RI75-PH Motor
Regular price
$138.90
Unit price
/
Unavailable
CubeMars RI75-PH Motor - RI75-PH KV70 (Pre-Order) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
CubeMars RI75-PH Motor
Regular price
$138.90
Unit price
/
Unavailable
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Hall Distribution Angle | 120 electrical degrees |
| Operating Environment | -20°C~+85°C |
| Dielectric Strength |
1000VAC/1S |
| Insulation Class | Class H |
| Insulation Resistance | 100MΩ, 500VDC |
| Motor Weight (g) | 348 |
| Speed Constant (RPM/V) |
70 |
| Voltage (V) | 48 |
| Motor Constant (N·m/√W) |
0.203 |
| Continuous Torque (N·m) | 1.2 |
| Inertia (g·cm²) |
416 |
| Peak Torque (N·m) | 3.8 |
| Number of Pole Pairs | 14 |
| Max Speed at Continuous Torque (RPM) | 2365 |
| Phase Resistance (mΩ) | 495 |
| Continuous Current (A) | 7.28 |
| Phase Inductance (μH) |
673 |
| Peak Current (A) |
24.2 (Ref) |
| Maximum Torque-to-Weight Ratio (N·m/kg) | 11.8 |
| Torque Constant (N·m/A) | 0.143 |
| Electrical Time Constant (ms) | 0.0013 |
| Back EMF Constant (V/RPM) | 0.015 |
| Electromechanical Time Constant (ms) | 0.001 |
