CubeMars | SKU:

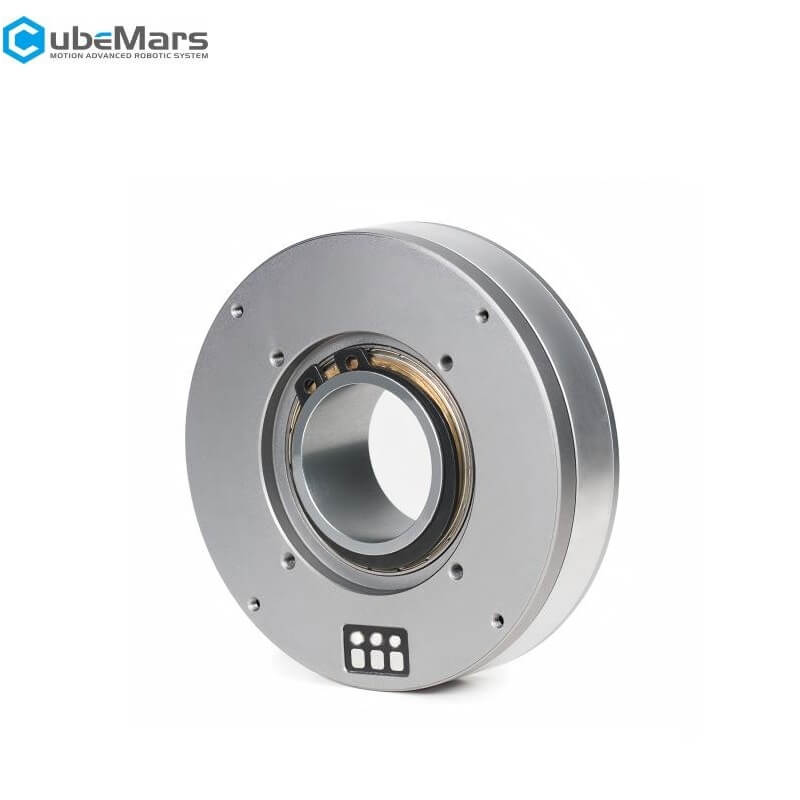

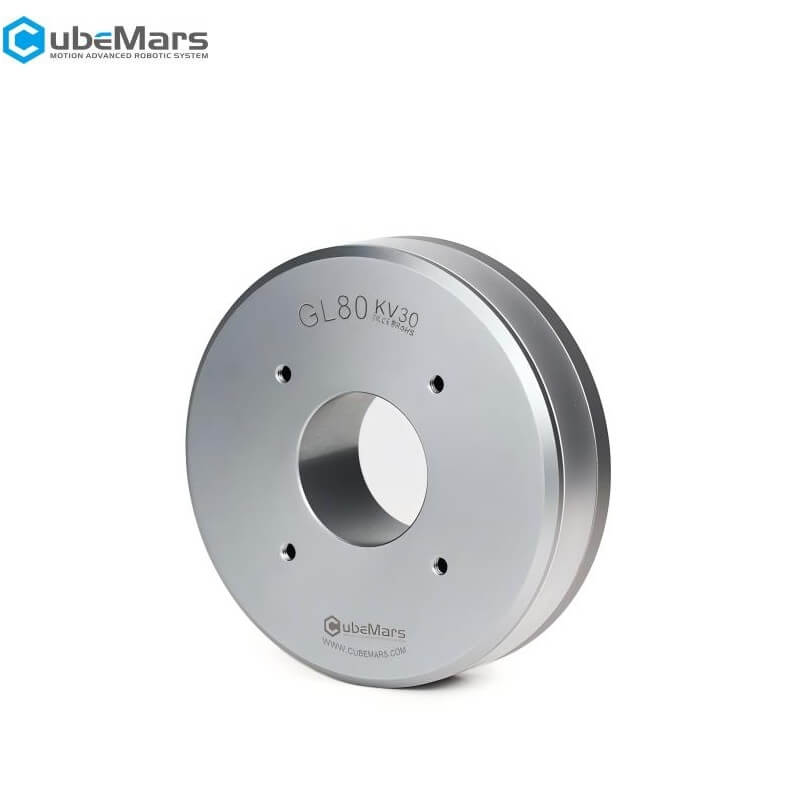

CubeMars GL80 Motor
Regular price
$181.99
Unit price
/
Unavailable
CubeMars GL80 Motor - GL80 KV30 Motor is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
CubeMars GL80 Motor
Regular price
$181.99
Unit price
/
Unavailable
Product Information
Technical Specifications
| Parameter | Value | Value |
|---|---|---|
| Mode | KV30 | KV60 |
| Insulation High-Voltage | 1000V 5mA/2s | 1000V 5mA/2s |
| Insulation Resistance | 1000V 10MΩ | 1000V 10MΩ |
| Phase | 3 | 3 |
| Pole Pairs | 21 | 21 |
| Driving Way | FOC | FOC |
| Operation Ambient Temperature |
-20℃~50℃ |
-20℃~50℃ |
| Winding Type | Star | Star |
| Insulation Class |
H |
H |
| Ke |
35.27V/krpm |
17.37V/krpm |
| Phase To Phase Resistance | 1800mΩ | 450mΩ |
| Phase To Phase Inductace |
1100μH |
270μH |
| Inertia | 650gc㎡ | 650gc㎡ |
| Km |
0.265346733Nm/√W |
0.265346733Nm/√W |
| Mechanical Time Constant | 0.92ms | 0.92ms |
| Electrical Time Constant | 0.61ms | 0.60ms |
| Weight | 315g | 315g |
| Maximum Torque Weight Ratio | 9.21Nm/Kg | 9.21Nm/Kg |
| Rated Voltage | 24V | 24V |
| No-Load Speed |
650rpm |
1300rpm |
| Rated Torque | 1N.m | 1N.m |
| Rated Speed | 450rpm | 1010rpm |
| Rated Current |
2.8ADC |
5.6ADC |
| Peak Torque |
2.9N.m |
2.9N.m |
| Peak Current | 8.2ADC | 16.3ADC |
| Kv | 27rpm/V | 54.5rpm/V |
| Kt | 0.356Nm/A | 0.178Nm/A |
