CubeMars | SKU:

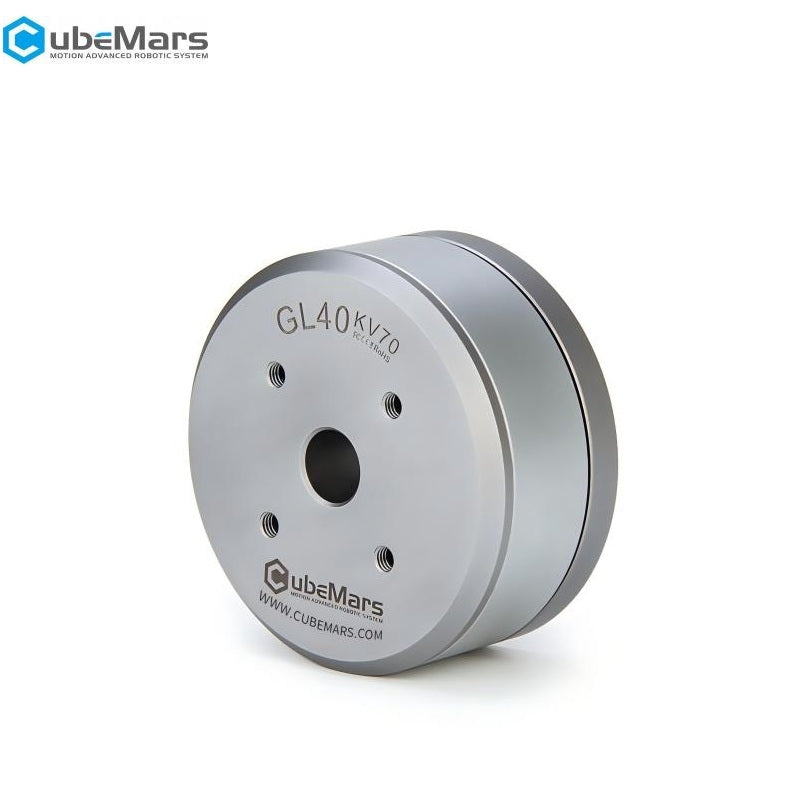

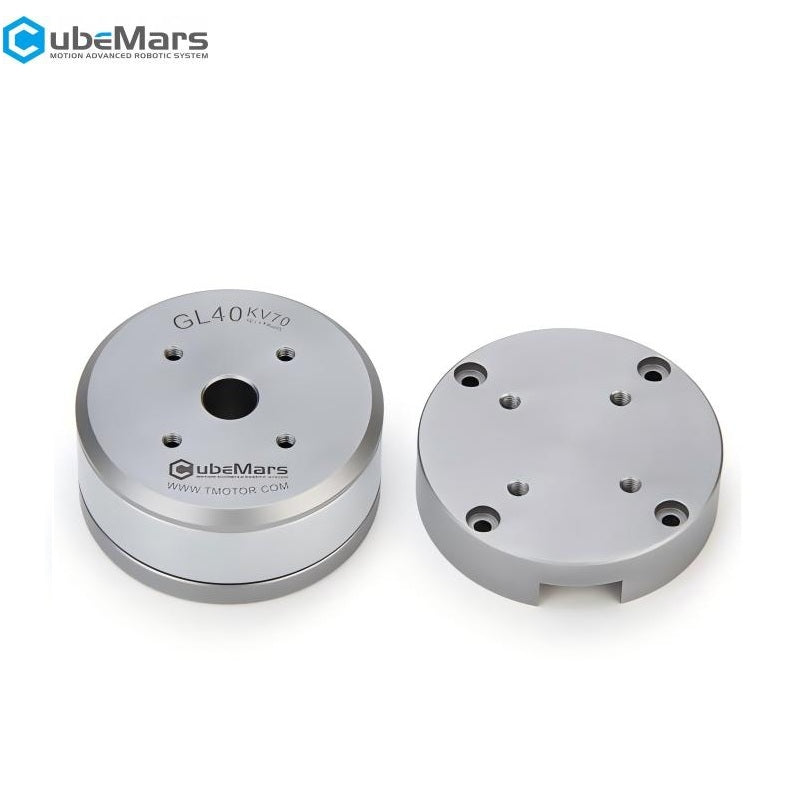

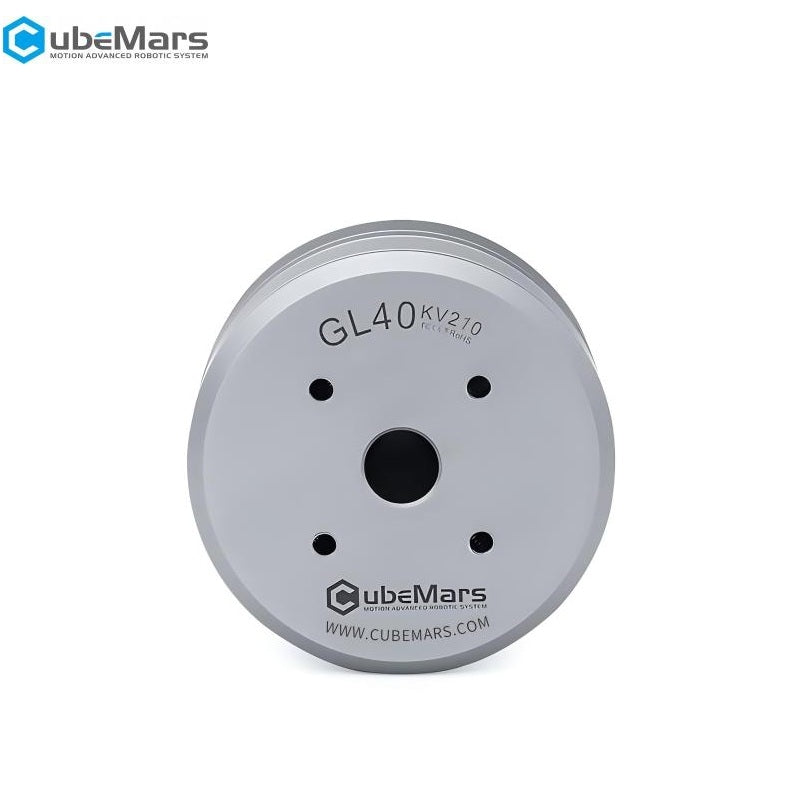

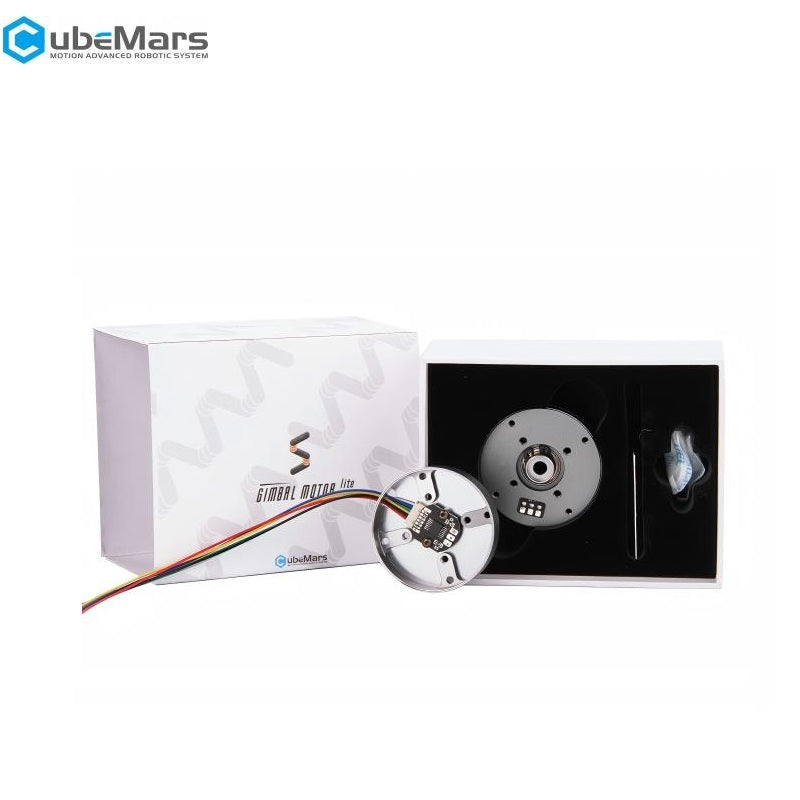

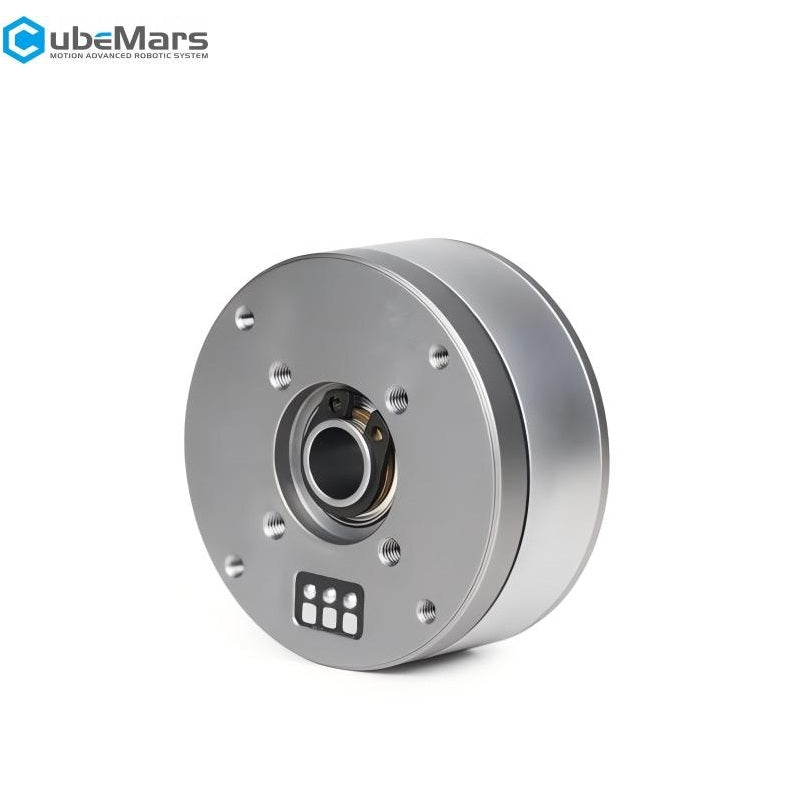

CubeMars GL40 Motor
Regular price
$72.99
Unit price
/
Unavailable
CubeMars GL40 Motor - GL40 KV70 Motor without Encoder (Pre-Order) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
CubeMars GL40 Motor
Regular price
From
$72.99
Unit price
/
Unavailable
Product Information
Technical Specifications
| Parameter | Value(KV70) | Value(KV210) |
|---|---|---|
| Rated Voltage | 16V | 16V |
| Rated Current | 1.62A | 4.9A |
| Rated Speed | 430rpm | 2100rpm |
| Rated Torque | 0.25N.M | 0.25N.m |
| Peak Current | 3.3A | 14.9A |
| Peak Torque |
0.5N.m |
0.75N.m |
| Weight | 107g | 107g |
| No-Load Speed |
1015rpm |
3120rpm |
| Kv |
63.5rpm/V |
195rpm/V |
| Kt |
0.150Nm/A |
0.050Nm/A |
| Ke |
15V/krpm |
4.88V/krpm |
| Phase To Phase Resistance |
4500mΩ |
500mΩ |
| Phase To Phase Inductance |
1800μH |
180μH |
| Inertia |
74g·cm² |
74g·cm² |
| Km |
0.070710678Nm/√W |
0.070710678Nm/√W |
| Mechanical Time Constant |
1.48ms |
1.48ms |
| Electrical Time Constant |
0.40ms |
0.36ms |
| Maximum Torque Weight Ratio |
4.67Nm/kg |
7.01Nm/kg |
| Insulation High-Voltage |
500V 5mA/2s |
500V 5mA/2s |
| Driving Way |
FOC |
FOC |
| Insulation Resistance |
500V 10MΩ |
500V 10MΩ |
| Operation Ambient Temperature |
-20℃~50℃ |
-20℃~50℃ |
| Phase |
3 |
3 |
| Winding Type |
star |
star |
| Pole Pairs |
14 |
14 |
| Insulation Class |
H |
H |
