CubeMars | SKU:

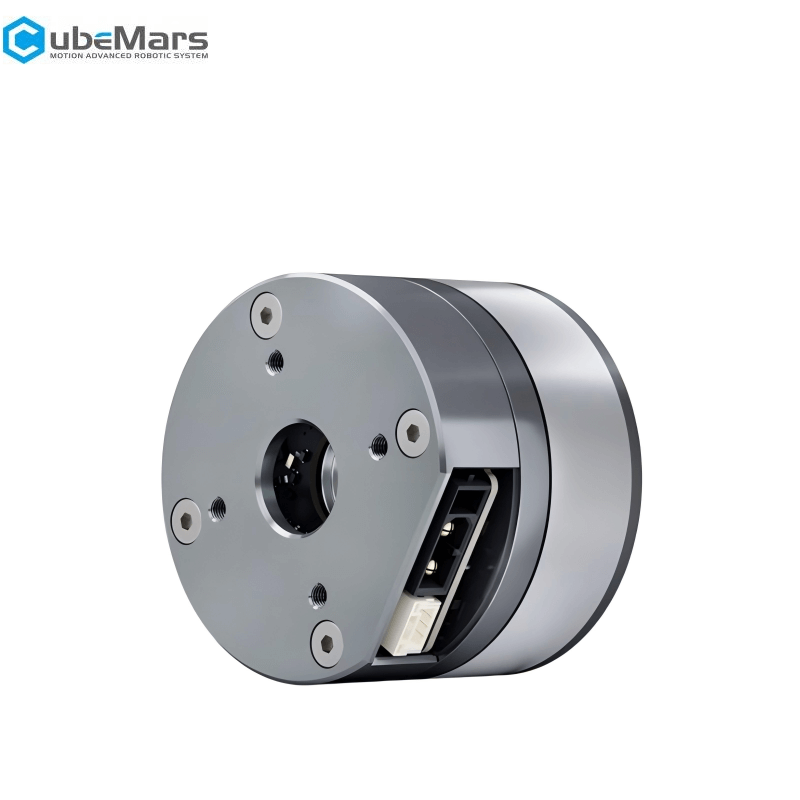

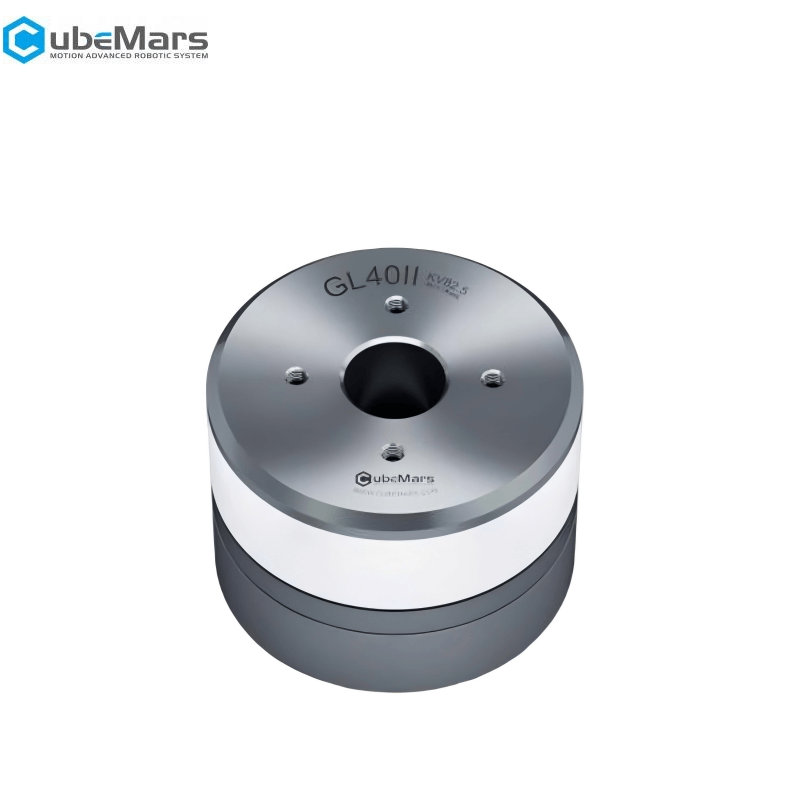

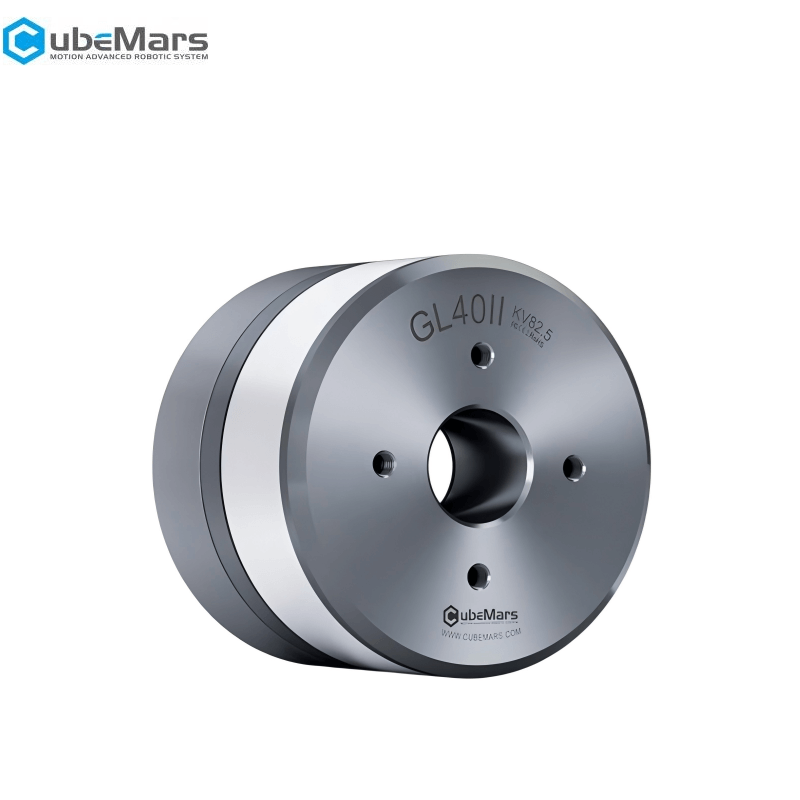

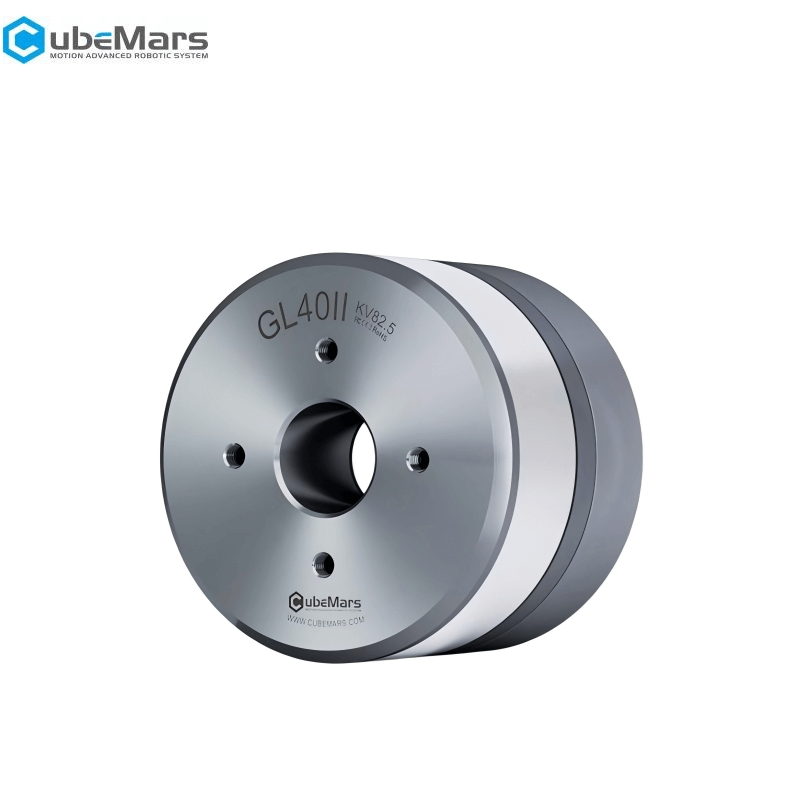

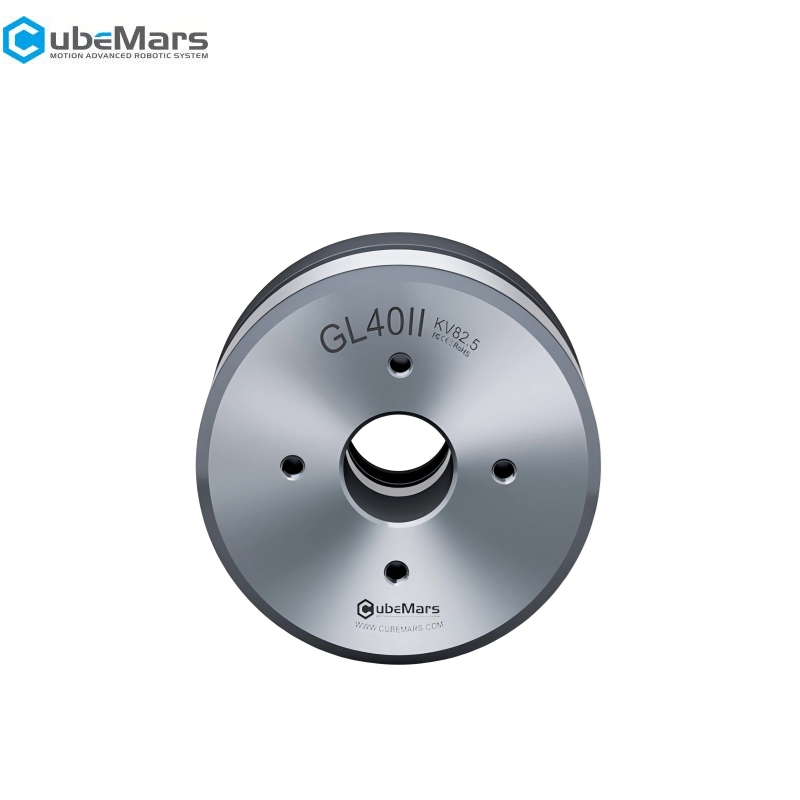

CubeMars GL40 II Motor
Regular price
$133.99
Unit price
/
Unavailable
CubeMars GL40 II Motor - GL40 II KV82.5 Motor is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
CubeMars GL40 II Motor
Regular price
$133.99
Unit price
/
Unavailable
Product Information
Technical Specifications
| Parameter | Value |
|---|---|
| Peak torque | 0.68N.m |
| Peak current | 5.22ADC |
| No-load speed | 1388rpm |
| Kv | 82.5rpm/V |
| Kt | 0.11N.m/A |
| Ke | 0.0115V/krpm |
| Phase to Phase resistance | 3000mΩ |
| Phase to Phase inductance |
1320μH |
| Inertia |
79.45g.cm² |
| Km | 0.06392Nm/√W |
| Mechanical Time Constant |
2.045ms |
| Maximum Torque Weight Ratio | 60.71N.m/kg |
| Electrical Time Constant |
0.44ms |
| Weight | 112g |
| Rated Torque | 0.25N.m |
| Rated Speed | 697rpm |
| Rated Current | 1.88ADC |
| Rated Voltage | 16V |
| Insulation Class |
H |
| Driving way | FOC |
| Operation Ambient Temperature |
-20℃~50℃ |
| Winding type |
star |
| Insulation High-Voltage |
500V 5mA/2s |
| Insulation Resistance | 500V 10MΩ |
| Phase | 3 |
| Pole Pairs | 14 |
