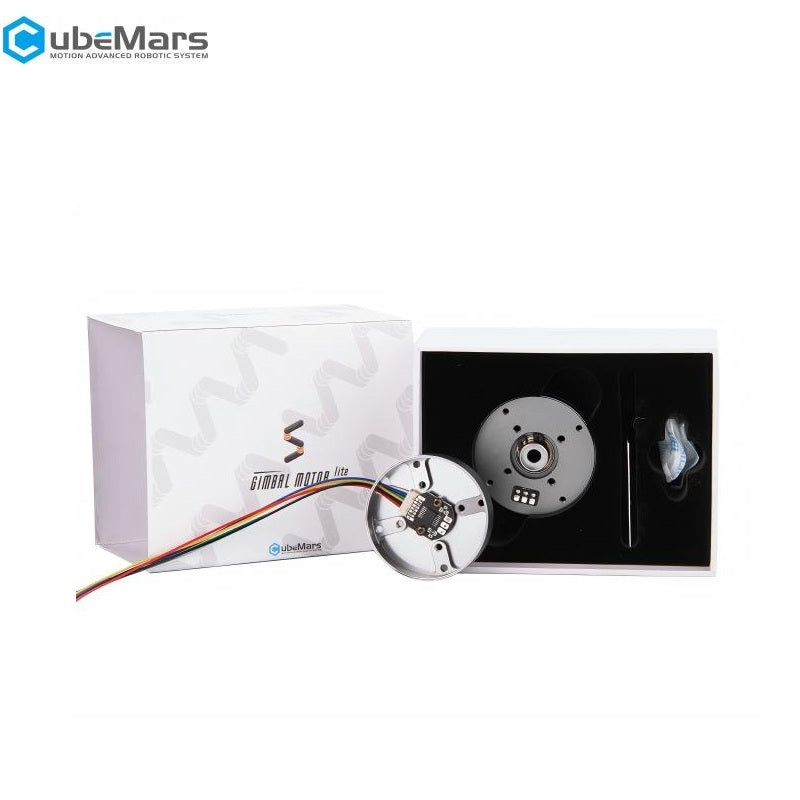

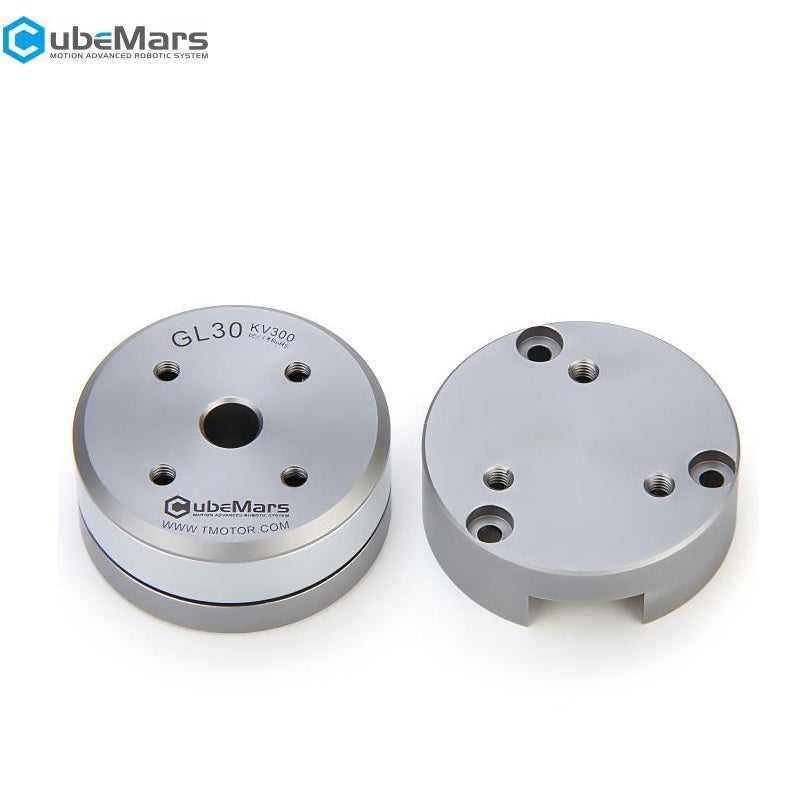

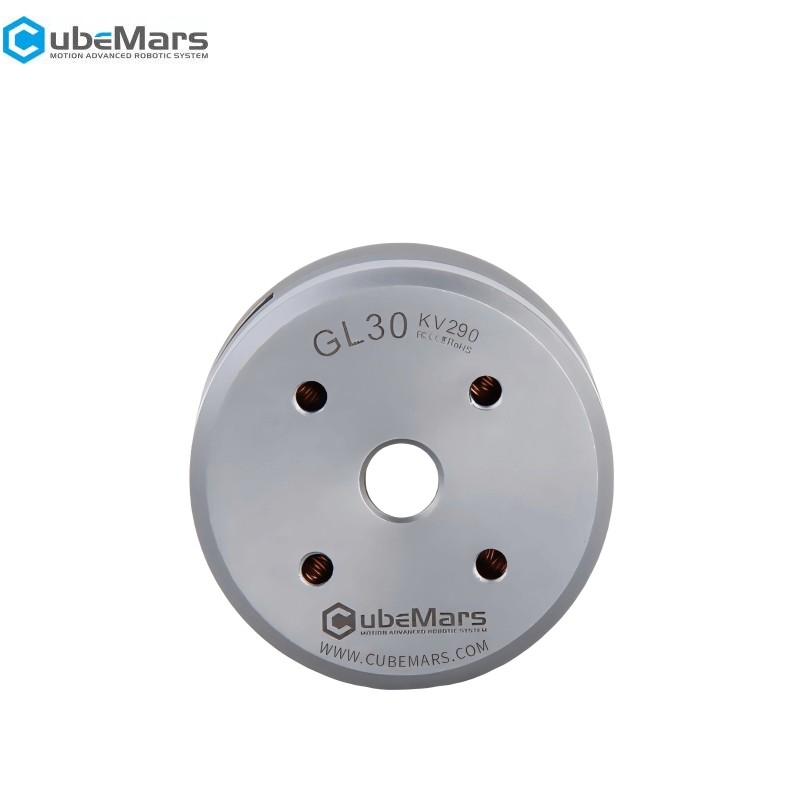

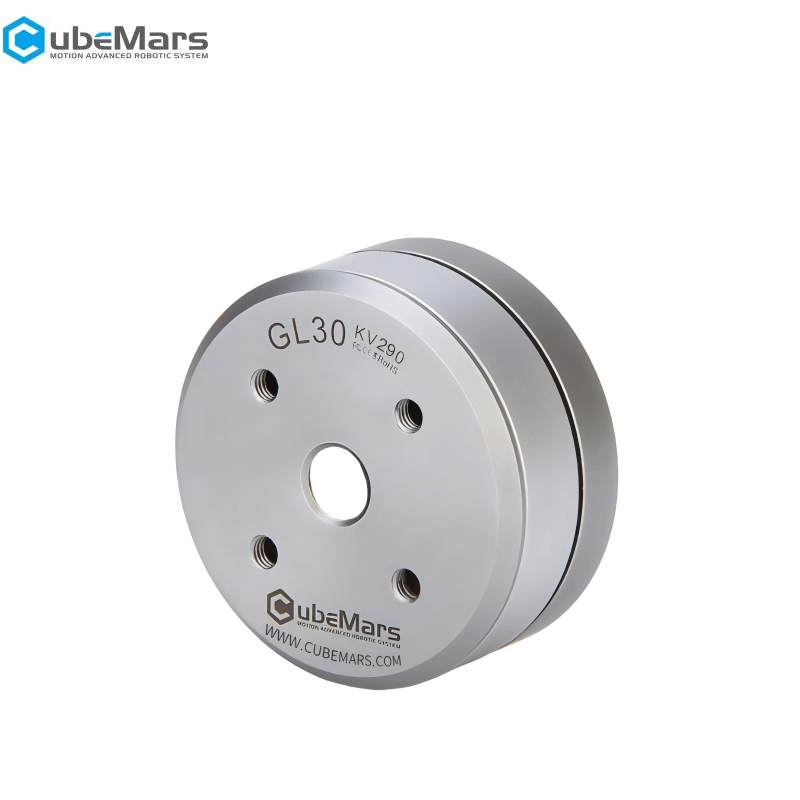

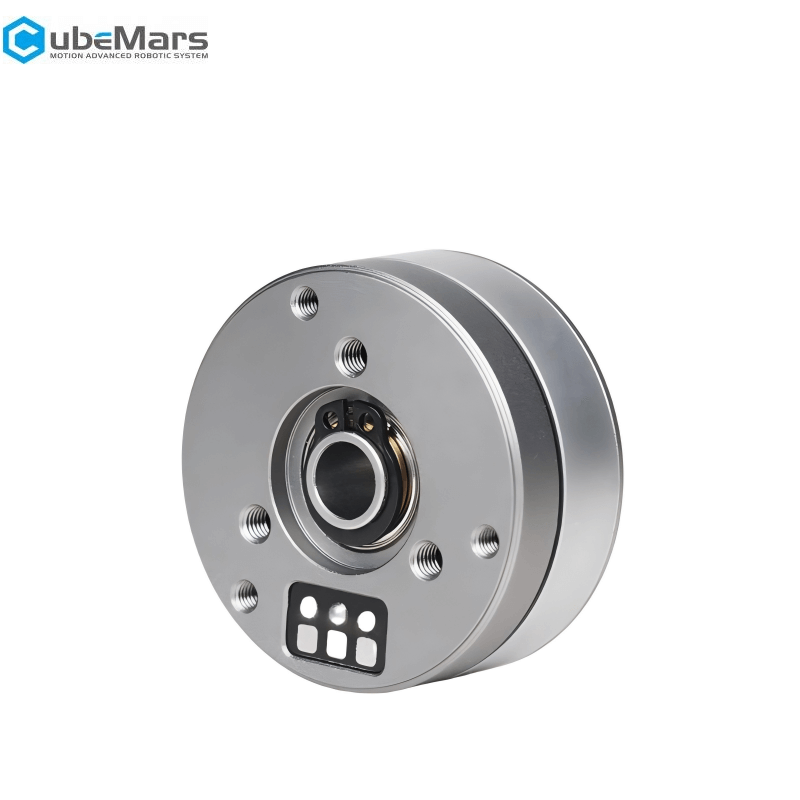

CubeMars GL30 Motor
Regular price
$75.99
Unit price
/
Unavailable
CubeMars GL30 Motor - GL30 KV290 Motor with Encoder (Pre-Order) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
CubeMars GL30 Motor
Regular price
From
$50.99
Unit price
/
Unavailable
Product Information
Technical Specifications
| Parameter | Value |
|---|---|
| Peak torque | 0.28N.m |
| Peak current | 7.4ADC |
| No-load speed | 3060rpm |
| Kv | 255rpm/V |
| Kt | 0.038N.m/A |
| Ke | 3.73V/krpm |
| Phase to Phase resistance | 1530mΩ |
| Phase to Phase inductance |
330μH |
| Inertia |
24.2g.cm² |
| Km | 0.030721179Nm/√W |
| Mechanical Time Constant |
2.56ms |
| Maximum Torque Weight Ratio | 6.83N.m/kg |
| Electrical Time Constant |
0.22ms |
| Weight | 41g |
| Rated Torque | 0.08N.m |
| Rated Speed | 1990rpm |
| Rated Current | 2.13ADC |
| Rated Voltage | 12V |
| Insulation Class |
H |
| Driving way | FOC |
| Operation Ambient Temperature |
-20℃~50℃ |
| Winding type |
star |
| Insulation High-Voltage |
500V 5mA/2s |
| Insulation Resistance | 500V 10MΩ |
| Phase | 3 |
| Pole Pairs | 7 |
