CubeMars

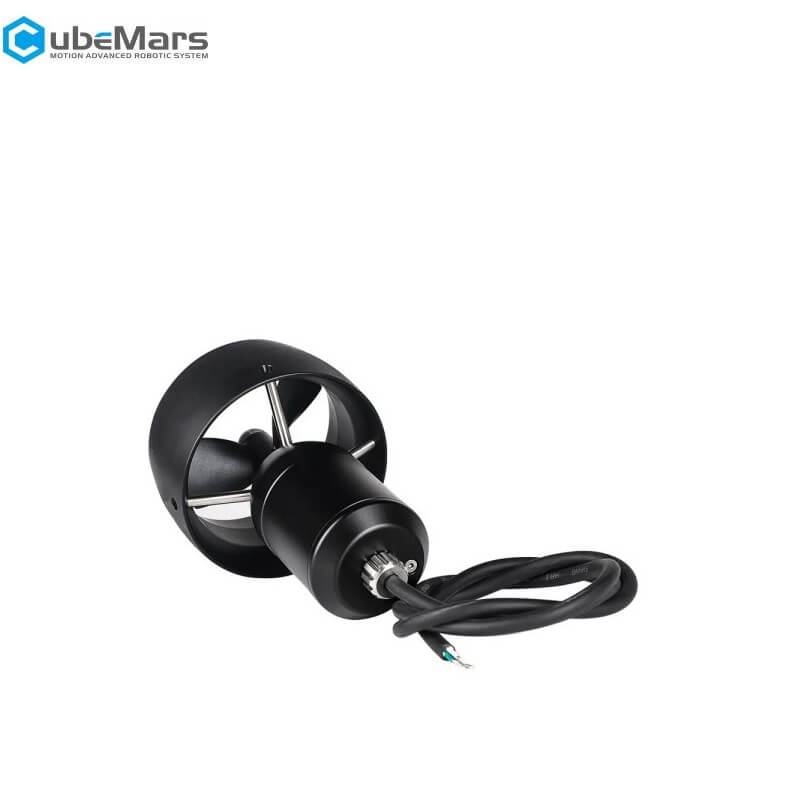

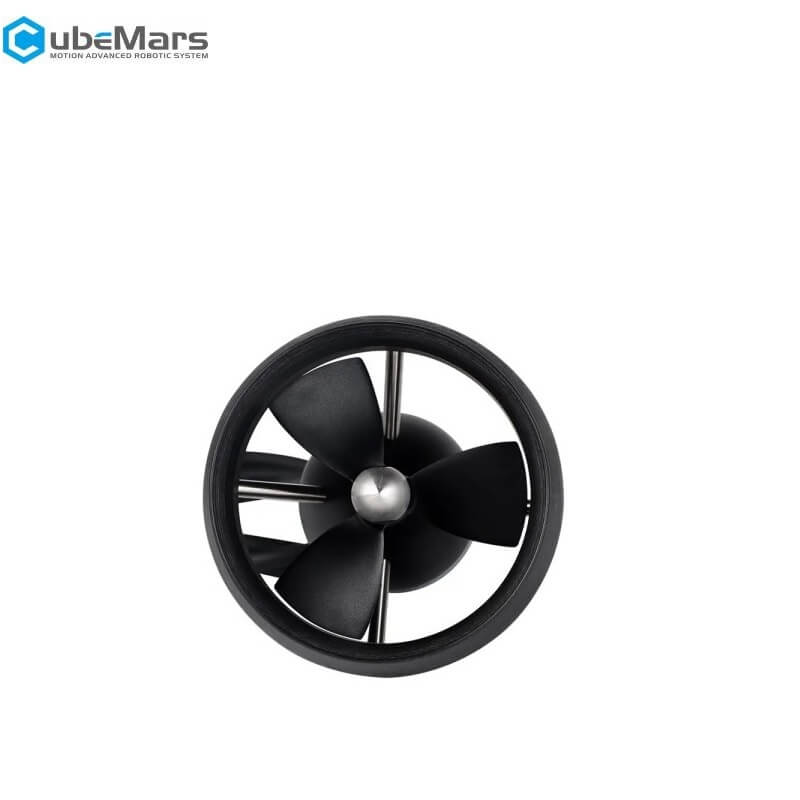

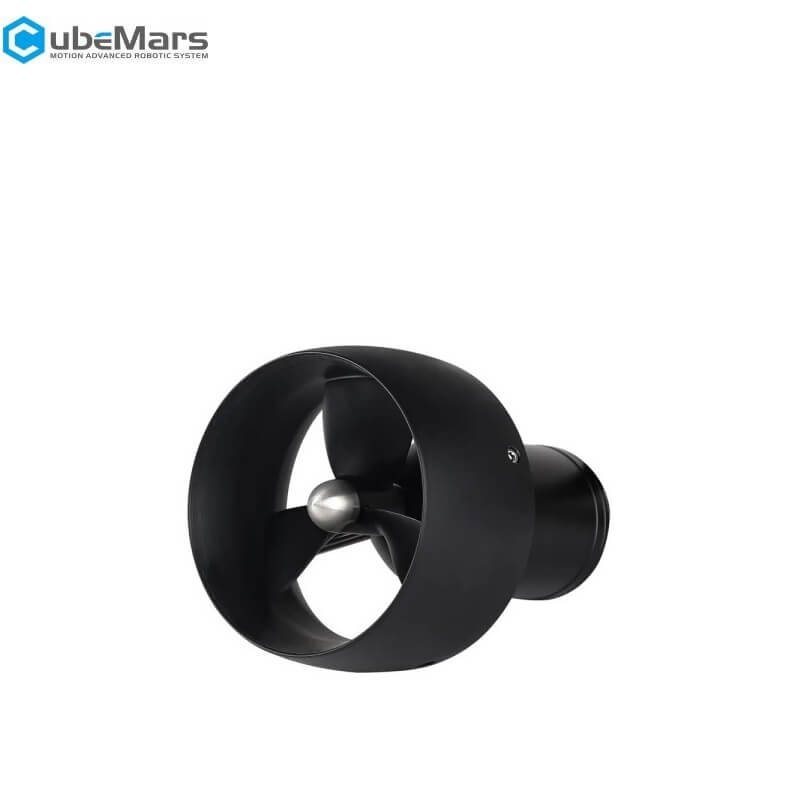

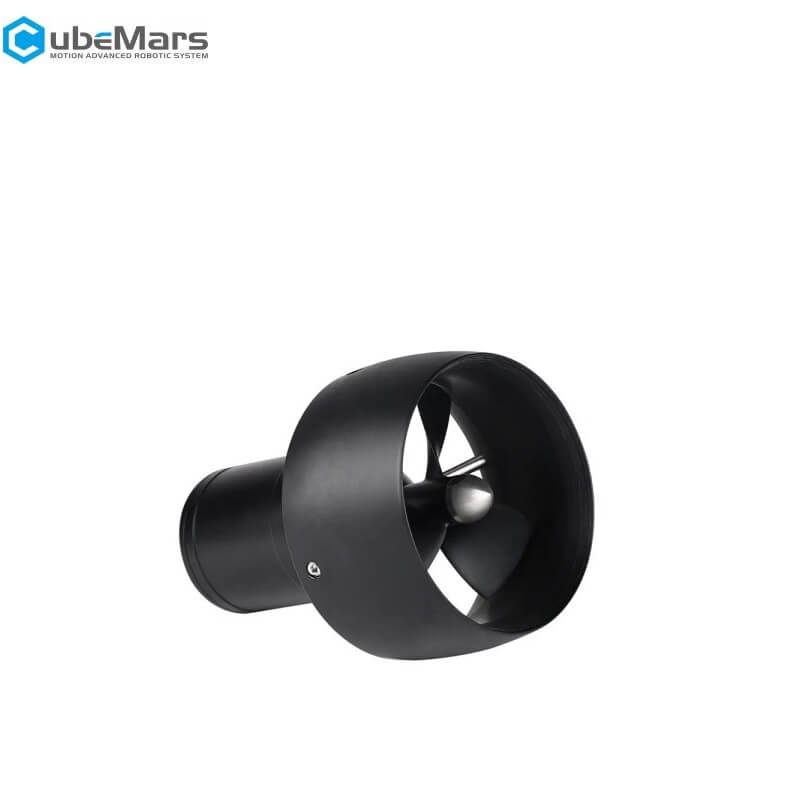

CubeMars DW15 Underwater Thruster

$399.90
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information



Technical Specifications

Parameter Value
Rated power 750W
Rated voltage 48V
Maximum mooring thrust ≥15kgf
Applicable water depth 0-350M
Material of the nozzle POM
Material of the propeller Aluminum alloy
Material of the shell Aluminum alloy
Propeller specifications φ106mm
Motor rotor pole number 28P
Main shaft sealing method Low-resistance dynamic seal
Main body structure Two-stage sealing chamber
Cable specifications TPU(Glossy) φ8mm- 3*16AWG- 1.5M
Driver External
Applications Unmanned surface vehicle, Electric surfboard，ROV,etc.
Weight 1300g(in the air) 735g(in the water)
Environmental conditions 0-50℃(Storage) 0-40℃(Operating )
Usage tips Rinse with clean water promptly after use.
Recommended ESC matching TW-40A-12S
DW15-2D.pdf

DW15-3D.stp
