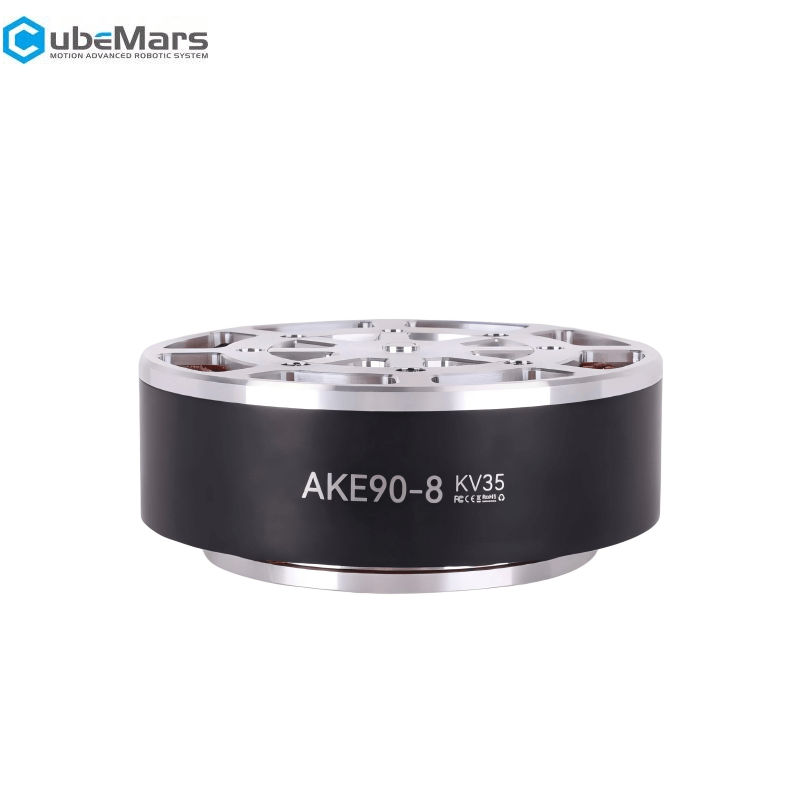

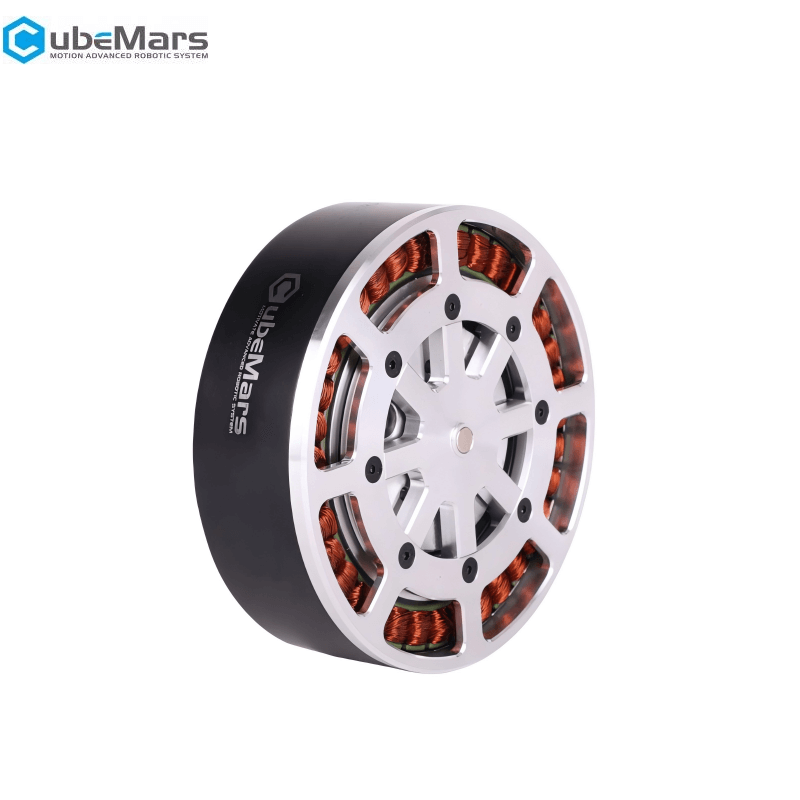

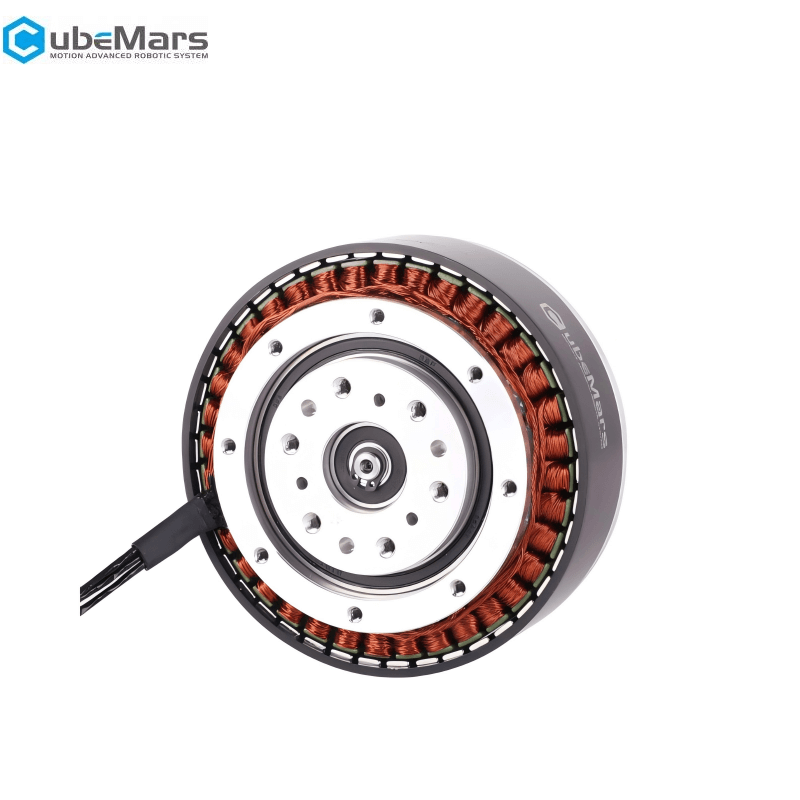

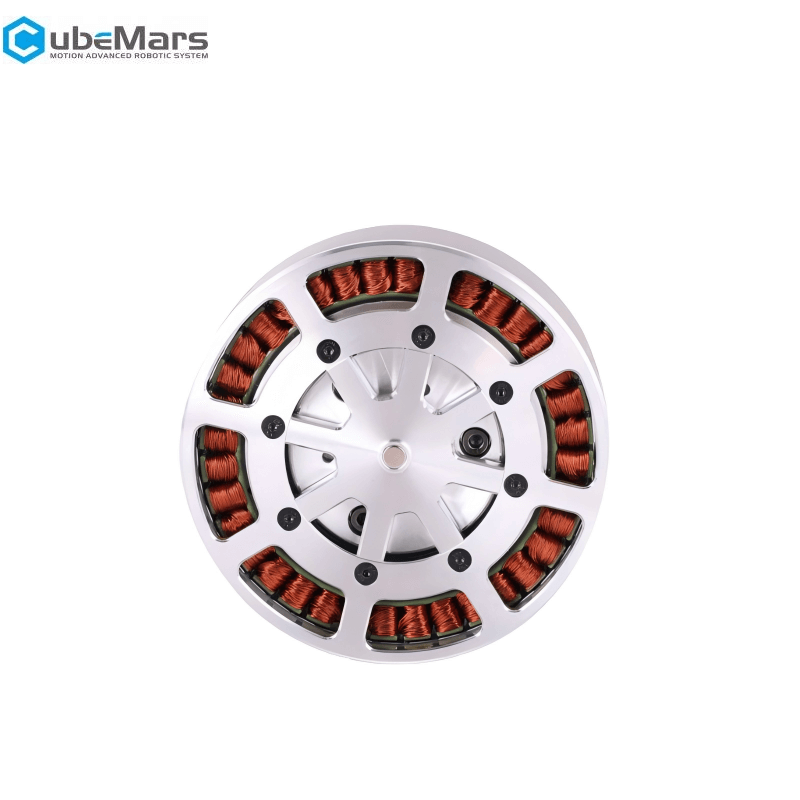

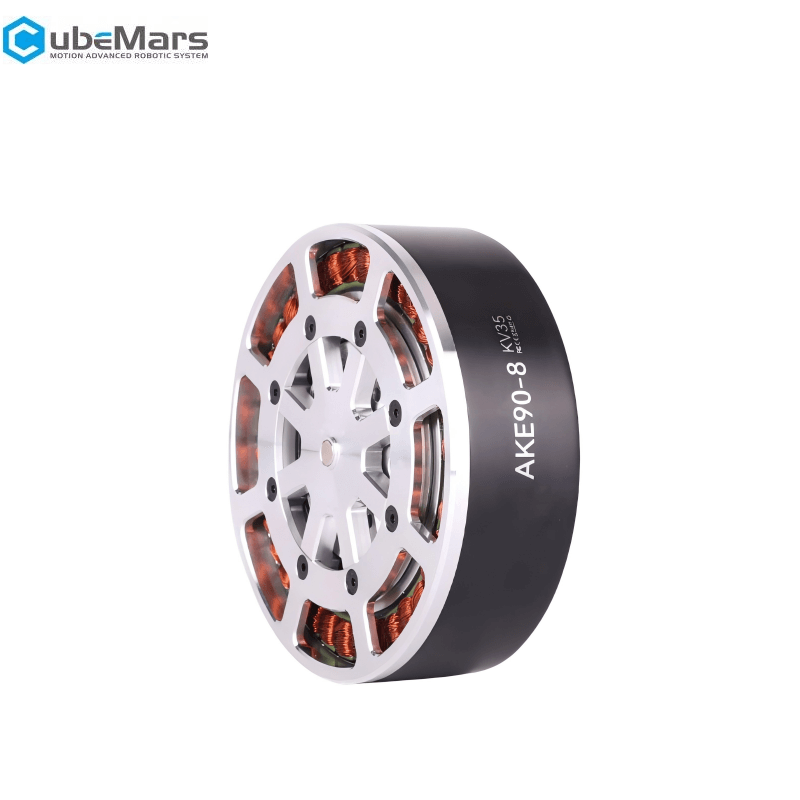

CubeMars AKE90-8 Motor
Regular price
$483.90
Unit price
Unavailable
CubeMars AKE90-8 Motor - AKE90-8 KV35 Motor is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
CubeMars AKE90-8 Motor
Regular price
$483.90
Unit price
Unavailable
CubeMars AKE90-8 Motor - AKE90-8 KV35 Motor is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Peak torque | 170Nm |
| Driving way | FOC |
| Peak current | 72ADC |
| Operation ambient temperature | -20℃~50℃ |
| Kv | 35rpm/V |
| Winding type | delta |
| Kt | 0.272Nm/A |
| Insulation class | H |
| Ke | 0.0285V/krpm |
| Insulation High-voltage | 1000V 5mA/2s |
| Phase to Phase resistance | 164mΩ |
| Insulation resistance | 1000V 10MΩ |
| Phase to Phase inductance | 235μH |
| Pole pairs | 21 |
| Inertia | 3377.08gcm² |
| Backlash | 9arcmin |
| Km | 0.67372Nm/√W |
| Rated voltage | 48V |
| Mechanical time constant | 2.18ms |
| No-load speed | 210rpm |
| Electrical time constant | 1.4329ms |
| Rated torque | 55Nm |
| Weight | 1400g |
| Rated speed | 120rpm |
| Maximum torque weight ratio | 121.4Nm/kg |
| Rated current | 21ADC |
