BWSENSING | SKU:

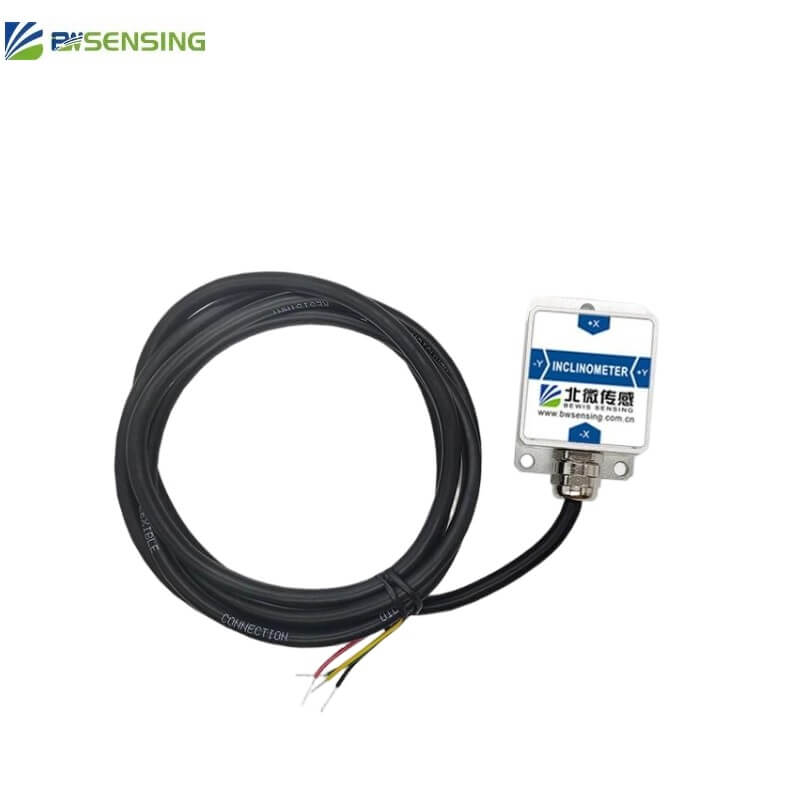

BWSENSING BWN426S Dual-Axis Inclinometer Sensor
Regular price
$126.00
Unit price
Unavailable
BWSENSING BWN426S Dual-Axis Inclinometer Sensor - BWN426S is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
BWSENSING BWN426S Dual-Axis Inclinometer Sensor
Regular price
$126.00
Unit price
Unavailable
BWSENSING BWN426S Dual-Axis Inclinometer Sensor - BWN426S is backordered and will ship as soon as it is back in stock.
Product Information
Technical Specifications
| Parameter | Value |
|---|---|
| Model | BWN426S |
| Power voltage |
Min:9V Typical:12V Max:36V |
| Working Current |
Min:20mA Typical:30mA Max:40mA |
| Operating Temperature | -40°C~+85°C |
| Storage Temperature |
-55°C~+100℃ |
| Measuring range | ±90° |
| Measuring axis | X-Y |
| Accuracy | 0.02° |
| Resolution | 0.001° |
| Zero bias | ±0.05°/°C (-40°C~+85°C) |
| Start-up time | <3S |
| Output Frequency | Up to 100HZ |
| Mean time between failures MTBF |
≥90000 h
|
| Electromagnetic compatibility | According to GBT17626 |
| Insulation resistance | ≥100MΩ |
| Shock resistance |
2000g,0.5ms,3times/axis |
| Connector |
Metal Joint (Cable 1.5m) |
| Protection level |
IP67 |
| Shell material |
Magnesium aluminum alloy oxidation |
|
Installation
|
Three M4 screws |
