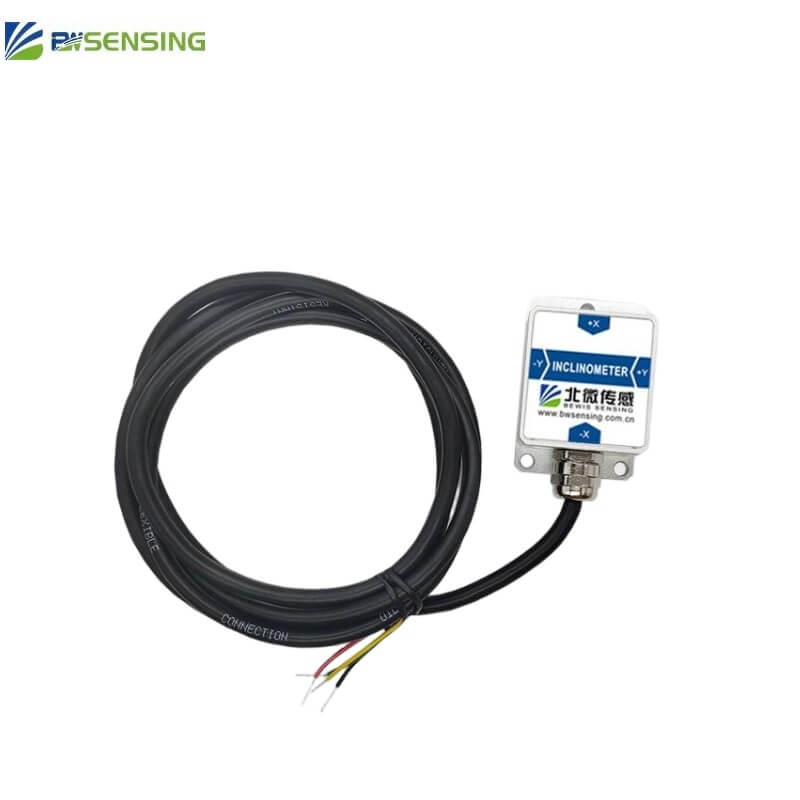

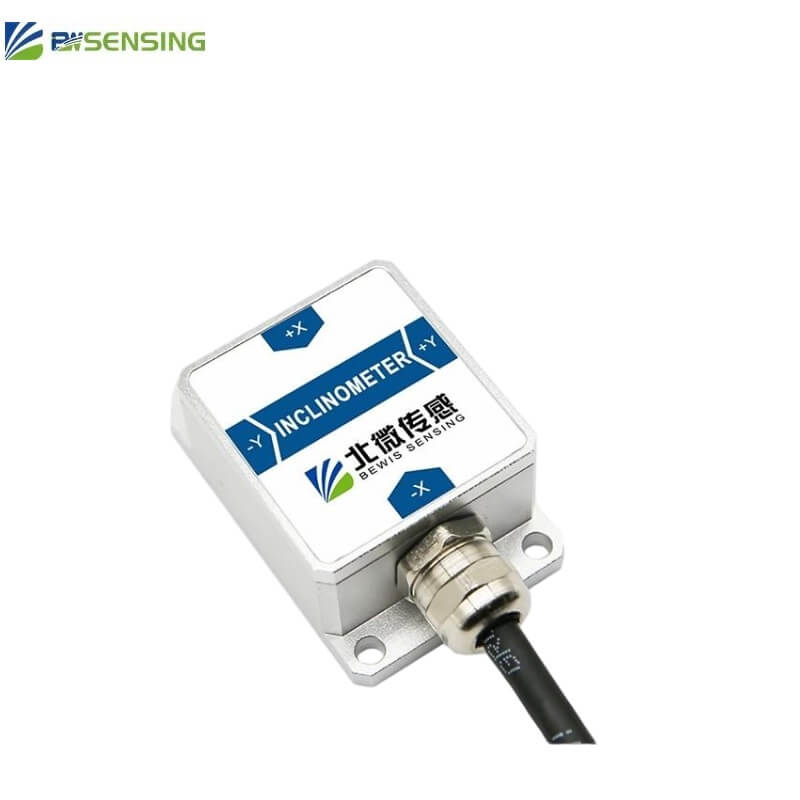

BWSENSING BWN426S Dual-Axis Inclinometer Sensor
Regular price
$126.00
Unit price
/
Unavailable
BWSENSING BWN426S Dual-Axis Inclinometer Sensor - BWN426S is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Product Information
Technical Specifications
Parameter | Value |
---|---|
Model | BWN426S |
Power voltage |
Min:9V Typical:12V Max:36V |
Working Current |
Min:20mA Typical:30mA Max:40mA |
Operating Temperature | -40°C~+85°C |
Storage Temperature |
-55°C~+100℃ |
Measuring range | ±90° |
Measuring axis | X-Y |
Accuracy | 0.02° |
Resolution | 0.001° |
Zero bias | ±0.05°/°C (-40°C~+85°C) |
Start-up time | <3S |
Output Frequency | Up to 100HZ |
Mean time between failures MTBF |
≥90000 h
|
Electromagnetic compatibility | According to GBT17626 |
Insulation resistance | ≥100MΩ |
Shock resistance |
2000g,0.5ms,3times/axis |
Connector |
Metal Joint (Cable 1.5m) |
Protection level |
IP67 |
Shell material |
Magnesium aluminum alloy oxidation |
Installation
|
Three M4 screws |
