Abham

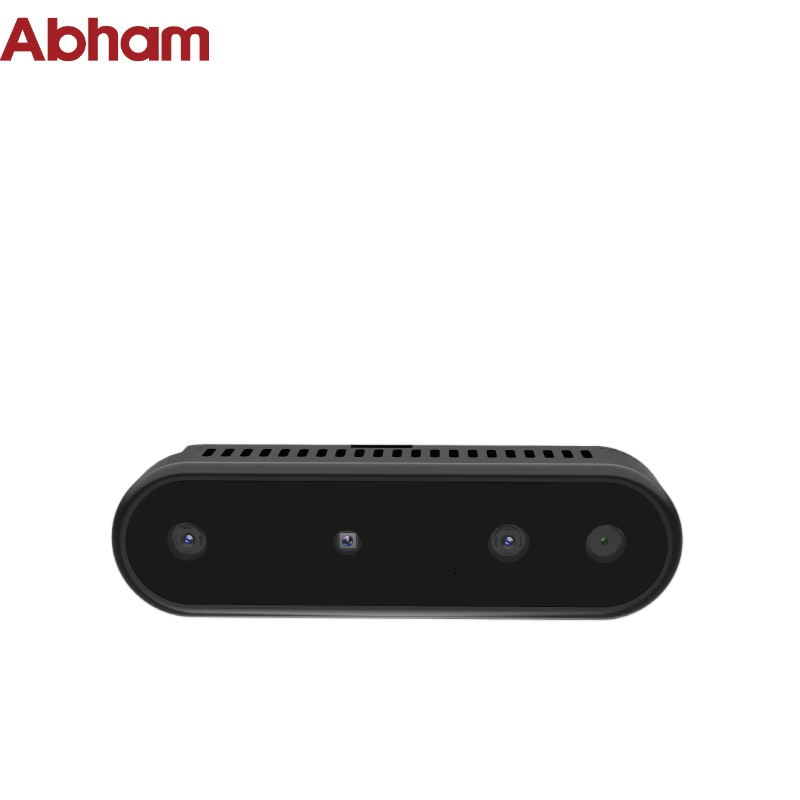

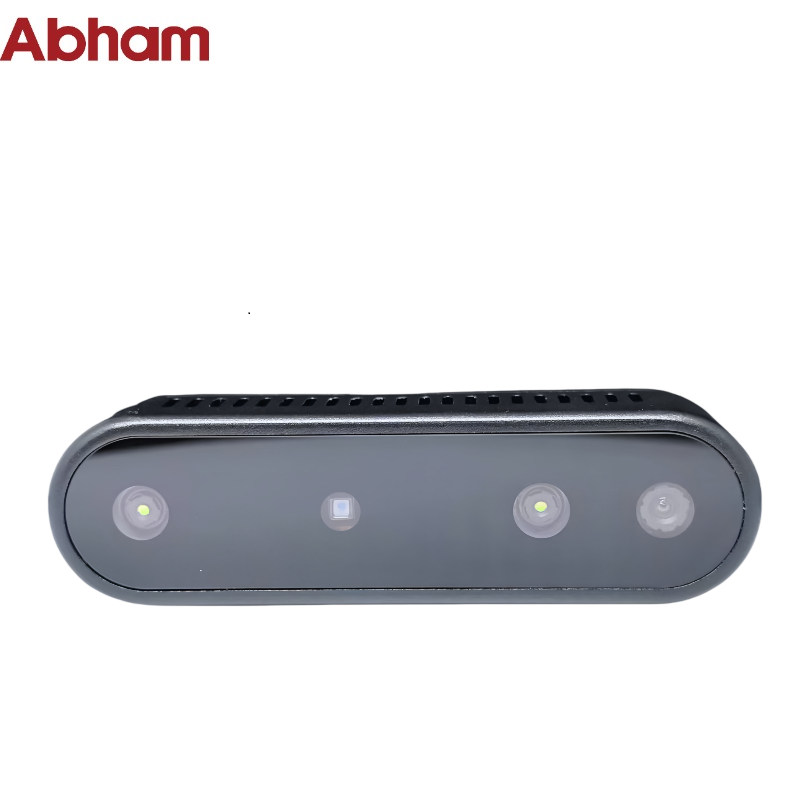

Abham Metasense435 Camera

$170.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information



Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Laser Camera VCSEL 940nm, FOV:102°×78°(H×V)
Infrared Camera IR=940nm, FOV:92.5°×80.5°×55.2°(D×H×V)
Color Camera IR=650nm, FOV:77.8°×65.9°×51.3°(D×H×V)
Data Transfer/Power Supply USB2.0
Working Distance 19cm—10m
Depth Map Resolution 640×400@30fps
Color Map Resolution 1280×720@30fps/640×400@30fps
Working Current Peak 1A (TX&RX working simultaneously), Average 260mA
Input Voltage 5.0VDC
Power Consumption Average 1W, Peak 5.45W
Supported OS Android/Linux/RTOS
Operating Temperature Operating: -25℃~70℃, Recommended: -10℃~60℃
Applicable Scenarios Indoor 10m, Outdoor 5m
Safety Laser Class1
Dimensions 89 × 25 × 20.6 mm
