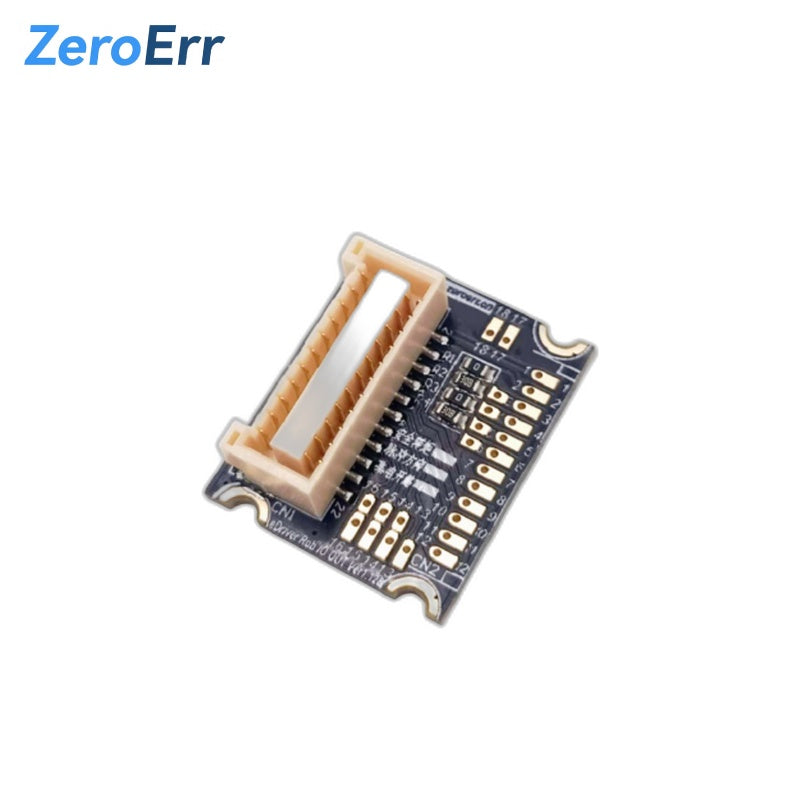

ZeroErr I-O Adapter Board
Regular price
$50.00
Unit price
ZeroErr I-O Adapter Board - I-O Adapter Board is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
ZeroErr I-O Adapter Board
Regular price
$50.00
Unit price
ZeroErr I-O Adapter Board - I-O Adapter Board is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | I-O Adapter Board |
| Size | 21.3x18.1x7(mm) |
| Weight | 2(g) |
| Operating Temperature | -40~85°C |
| Storage Temperature | -40~85°C |
| Storage Humidity | 20%~80% RH (Non-condensing) |
| Control Mode | R1 | R2 | R3 | R4 |
|---|---|---|---|---|
| Safe Torque Off | 0Ω 1/10W, ±1%, 0603 |
2kΩ 1/10W, ±1%, 0603 |
0Ω 1/10W, ±1%, 0603 |
2kΩ 1/10W, ±1%, 0603 |
| Pulse Direction | 0Ω 1/10W, ±1%, 0603 |
0Ω 1/10W, ±1%, 0603 |
0Ω 1/10W, ±1%, 0603 |
0Ω 1/10W, ±1%, 0603 |
| Open Collector | 470Ω 1/10W, ±1%, 0603 |
470Ω 1/10W, ±1%, 0603 |
470Ω 1/10W, ±1%, 0603 |
470Ω 1/10W, ±1%, 0603 |
ZeroErr I-O Adapter Board_Drawing.pdf
ZeroErr-IO Adapter Board User Manual_V1.0.pdf
