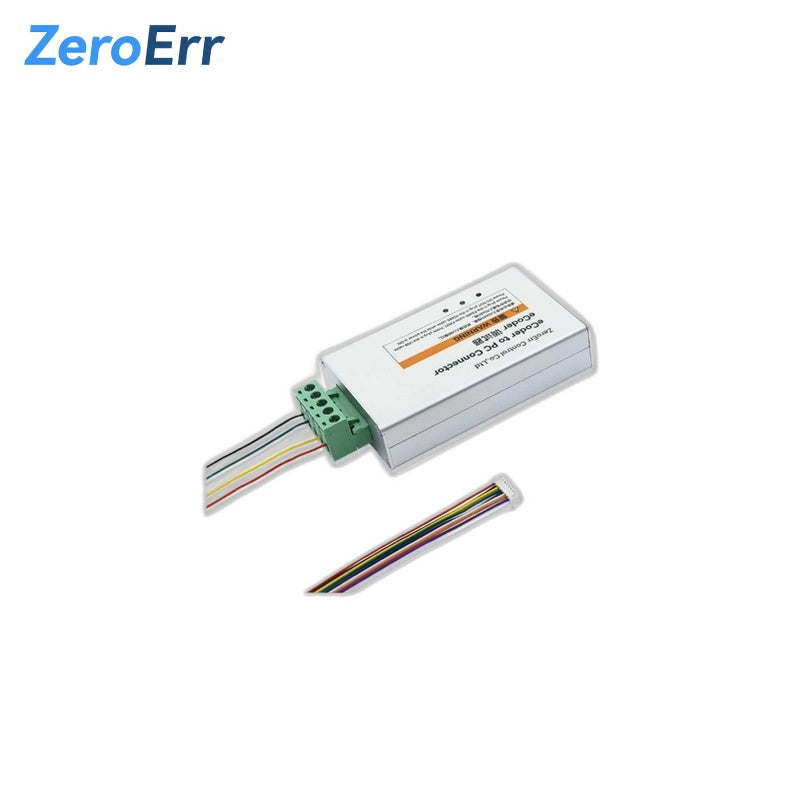

ZeroErr eRob-eCoder to PC Connector
Regular price
$100.00
Unit price
ZeroErr eRob-eCoder to PC Connector - ECoder to PC Connector (RS485) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
ZeroErr eRob-eCoder to PC Connector
Regular priceFrom
$100.00
Unit price
ZeroErr eRob-eCoder to PC Connector - ECoder to PC Connector (RS485) is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value | Value |
|---|---|---|
| Model | ECoder to PC Connector | ERob to PC Connector |
| Weight | 100(g) | 100(g) |
| Application | Used with robot joints | Used with robot joints |
| Dimension | L*W*H=96mm*58mm*24mm | |
| Temperature | -20℃ to-70℃ | |
| Humidity | 15% to 90% RH |

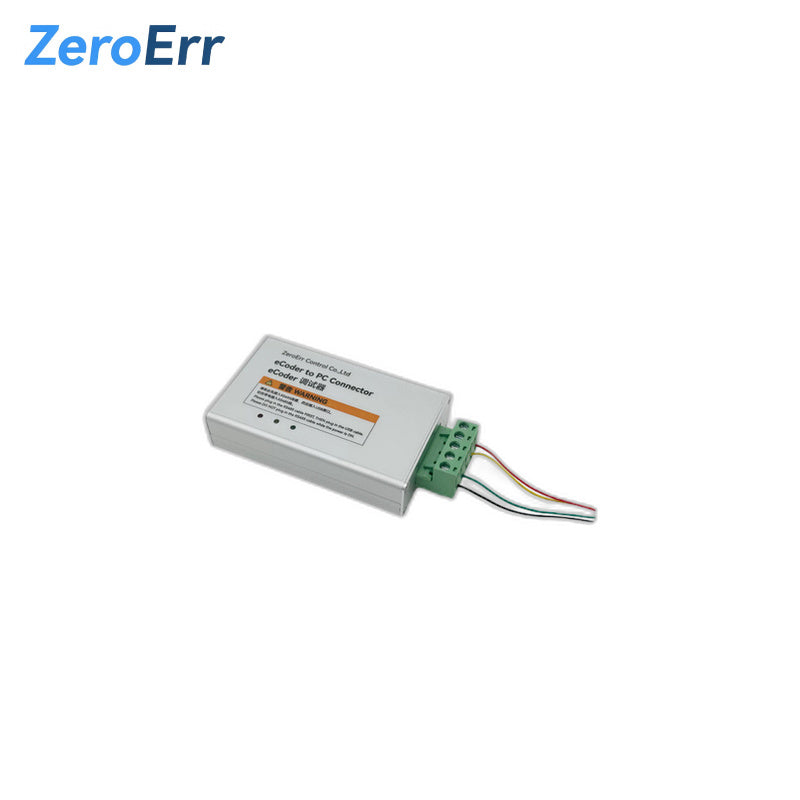

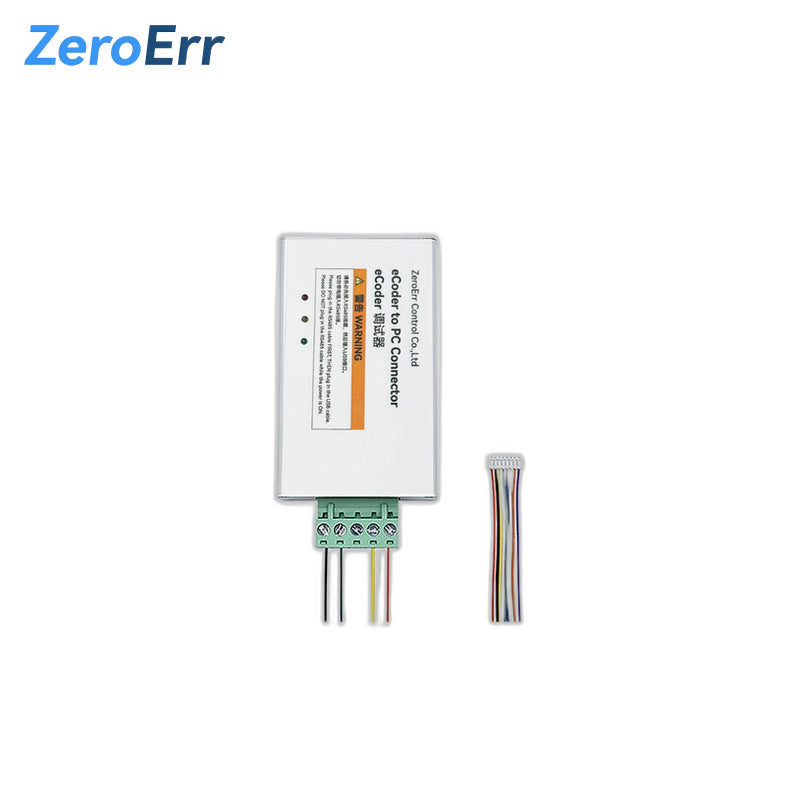

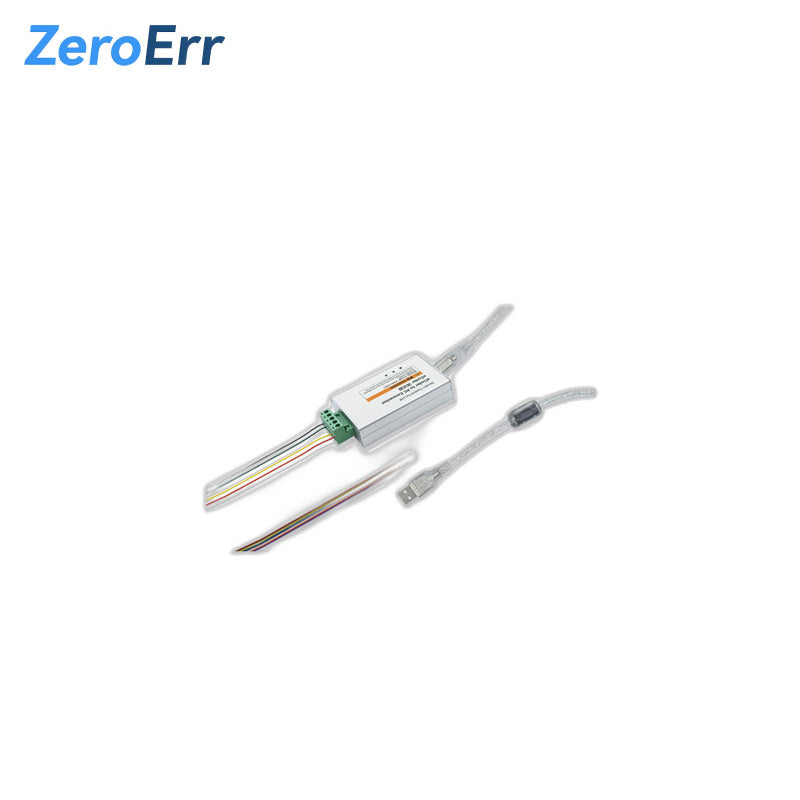

| ECoder to PC Connector | ||
|---|---|---|
| Pin | Terminal sign | Signal Description |
| 1 | +5V | Connect to the positive pole of the encoder 5V power supply |
| 2 | DATA+ | Connect to DATA+ of encoder |
| 3 | NC | No effect, do not connect |
| 4 | DATA- | Connect to DATA- of encoder |
| 5 | GND | Connect to the negative pole of the encoder 5V power supply |

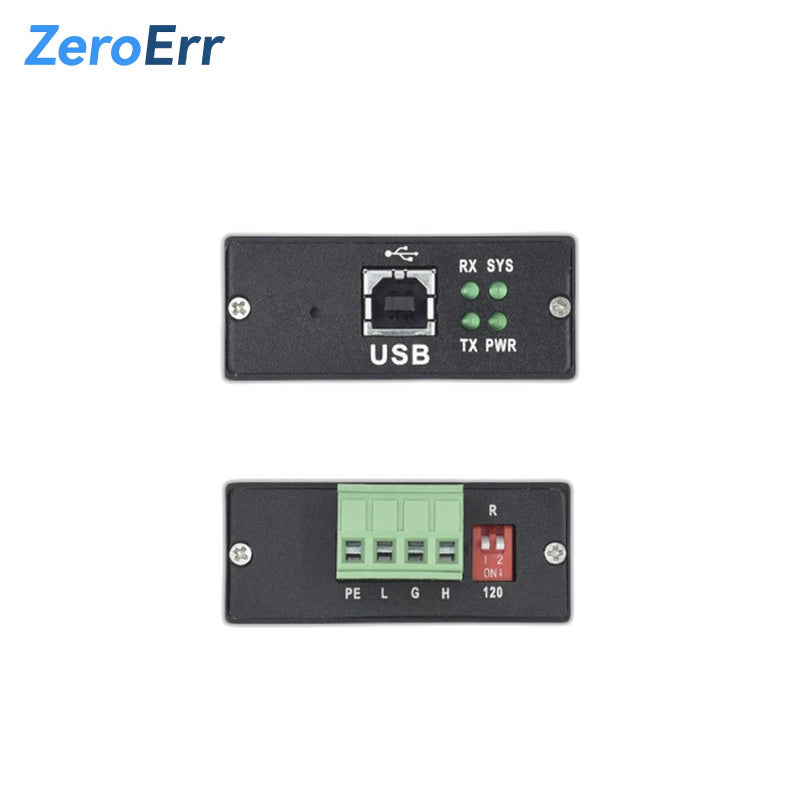

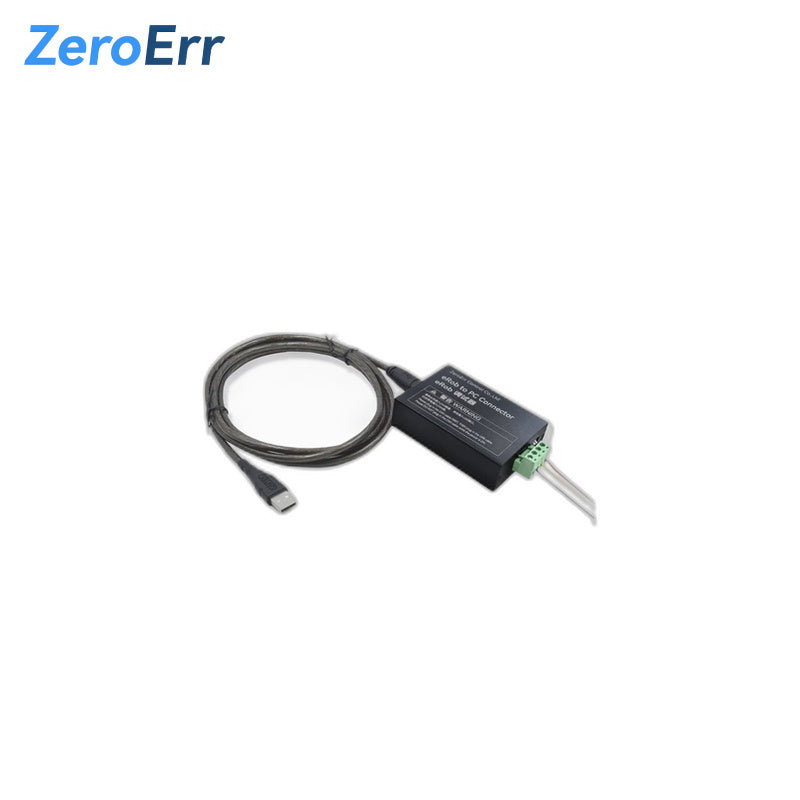

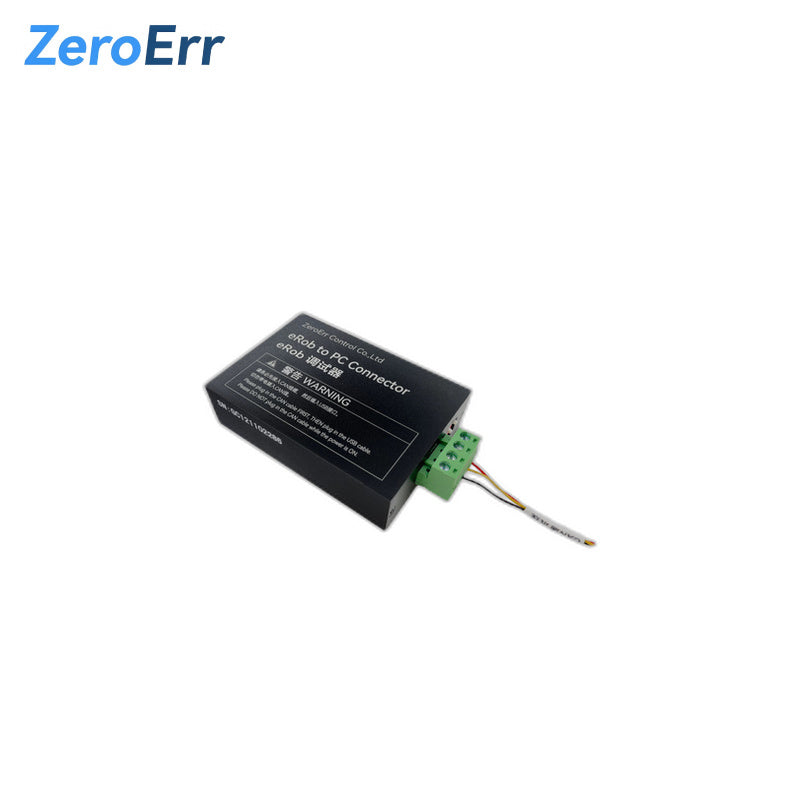

| ERob to PC Connector | ||
|---|---|---|
| Port | Terminal Mark | Function |
| CAN | PE | Shield connected to housing |
| L | CAN_L signal line (CAN Low) | |
| G | CAN_GND ground | |
| H | CAN_H signal line (CAN High) | |
| CAN Termination Resistor | R | CAN termination resistor value 120 Ω, enabled via DIP switch |
ZeroErr-eRob to PC Connector User Manual V1.1.pdf
