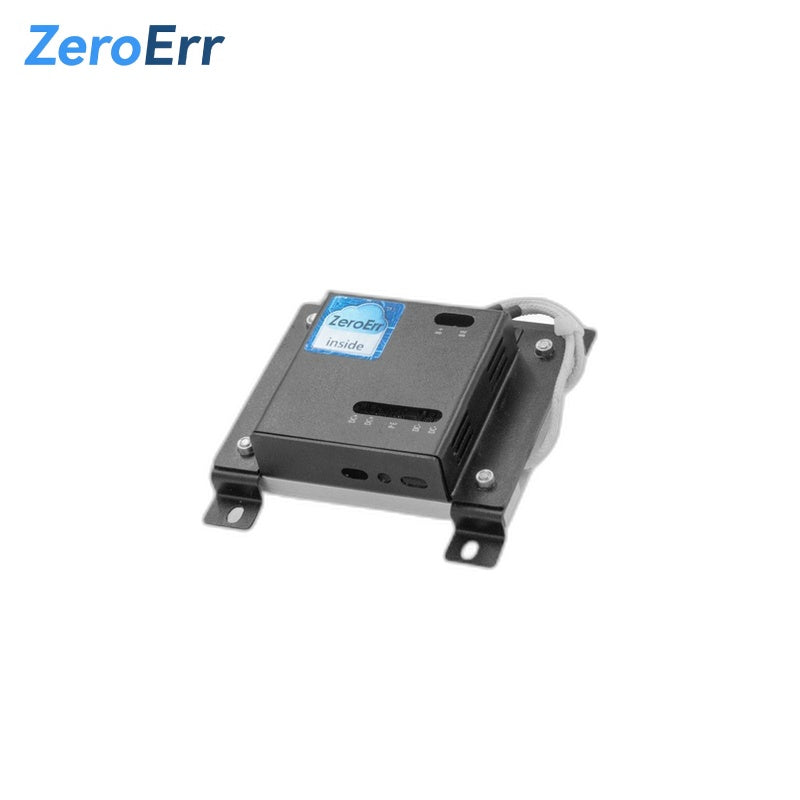

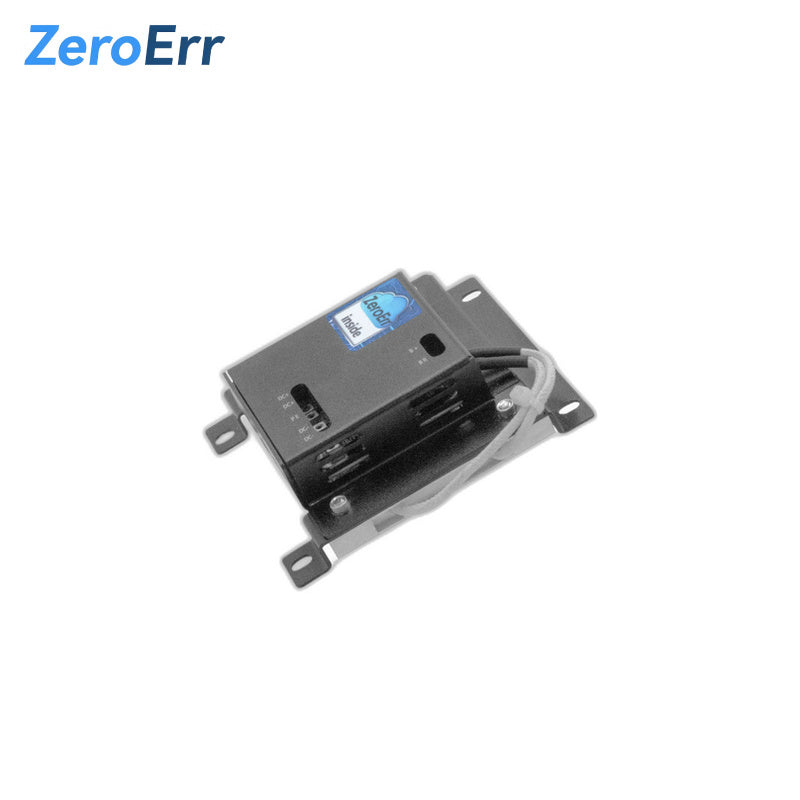

ZeroErr ePower-Board
Regular price
$200.00
Unit price
ZeroErr ePower-Board - Black is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | eLine Power 5 Cable |
| Size | 75*80*22.5(mm) |
| Weight | 66.5(g) |
| Input voltage | <50(VDC) |
| Regenerative braking voltage at start | 51(VDC) |
| Regenerative braking voltage at stop | 50(VDC) |
| Power of brake resistor | 50(W) |
| Resistance of brake resistor | 5(Ω) |
| Operating Temperature | −20~60 ℃ |
| Storage Temperature | −30~60 ℃ |
| Ingress Protection Rating | IP30 |
| Use\Storage Humidity | 20%~80%（NO Condensation） |
| Pin | Terminal sign | Terminal function | Terminal specification |
|---|---|---|---|
| 1 | DC+ | Connect to the positive pole of 48VDC power | Frame-type, Crimped terminal, Wiring hole diameter ∅1.9mm |
| 2 | PE | Connect to the housing EGND | |
| 3 | DC- | Connect to the negative pole of 48VDC power | |
| 4 | BR | Connect to the brake resistor | |
| 5 | B+ |
