ZeroErr | SKU:
ZeroErr ePower
Regular price
$450.00
Unit price
ZeroErr ePower - EPower-400-48 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments

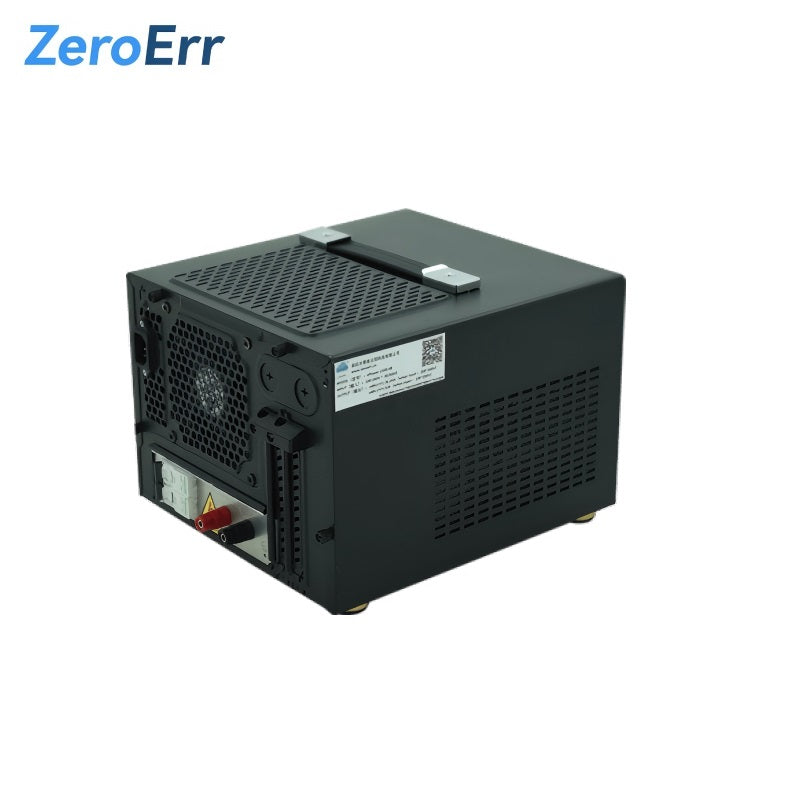

ZeroErr ePower
Regular priceFrom
$450.00
Unit price
ZeroErr ePower - EPower-400-48 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value | Value | Value |
|---|---|---|---|
| Model | ePower-400-48 | ePower-800-48 | ePower-1500-48 |
| Input AC Voltage | 100 ~ 240V | ||
| Output DC Voltage | 48V | ||
| Output Rated Current | 8.3A | 16.7A | 31.25A |
| Output Power | 400W | 800W | 1500W |
| Brake Turn-ON Voltage | 53V | ||
| Brake Turn-OFF Voltage | 51V | ||
| Operating Temperature | -20~60℃(Please refer to "Derating Curve") | ||
| Overload Protection Mode | Constant current limiting mode, which can automatically return to normal operation after the abnormal load condition is removed | ||
| Short Circuit Protection Mode | Constant current limiting mode, which can automatically return to normal operation after the abnormal load condition is removed | ||
| Over-Voltage Protection Threshold | 55.2 ~ 64.8V | ||
| Over-Voltage Protection Mode | Turn off the output voltage, restart and recovery | ||
| Over-Temperature Protection Mode | Turn off the output voltage, automatic recovery after the temperature drops | ||
| Weight | 4.7kg | 5.9kg | 8.1kg |
ZeroErr-ePower User Manual.pdf
