ZeroErr | SKU:

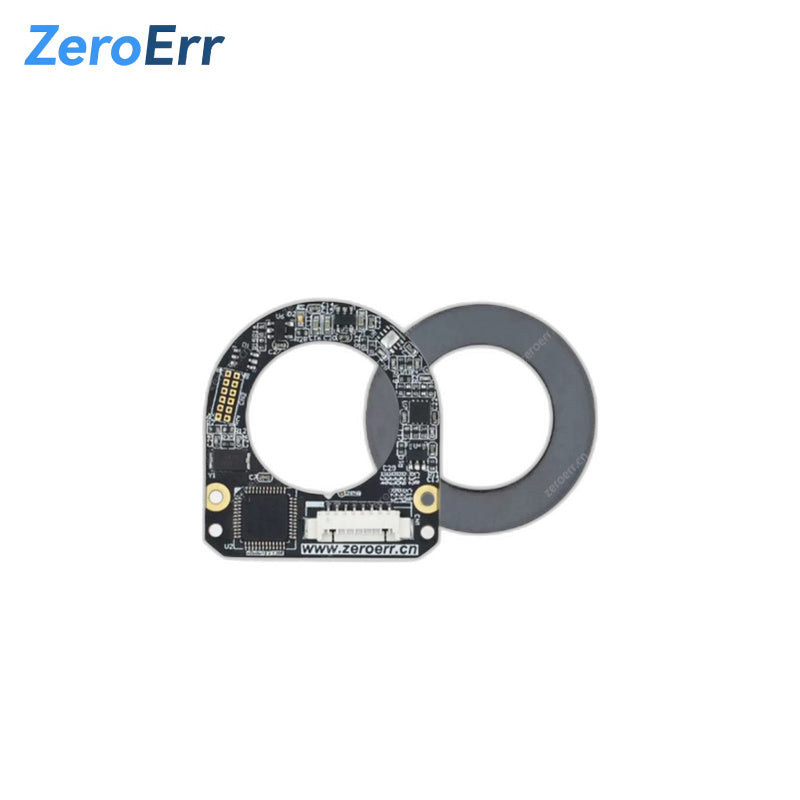

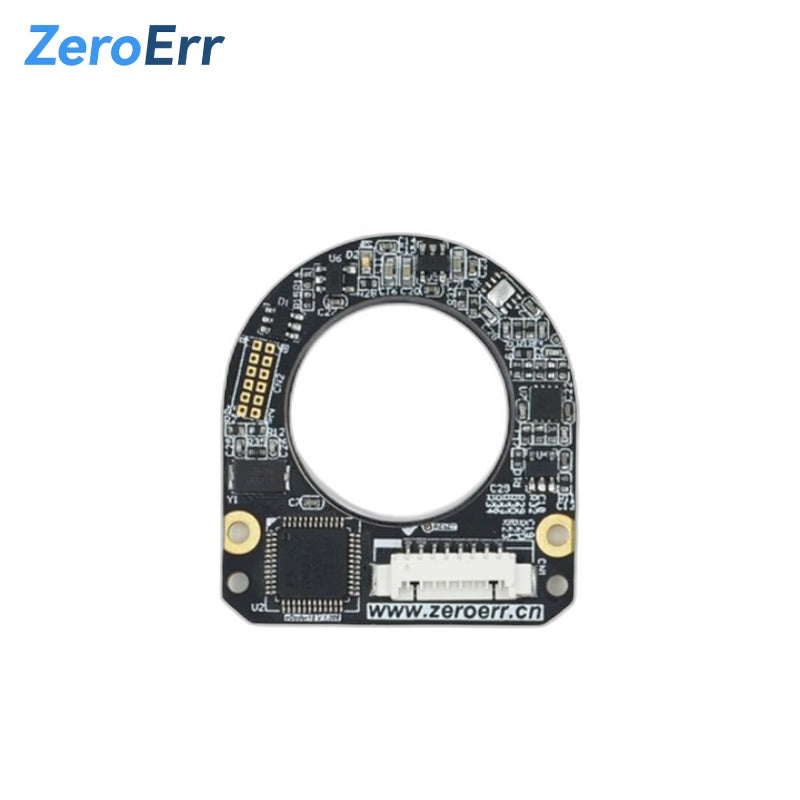

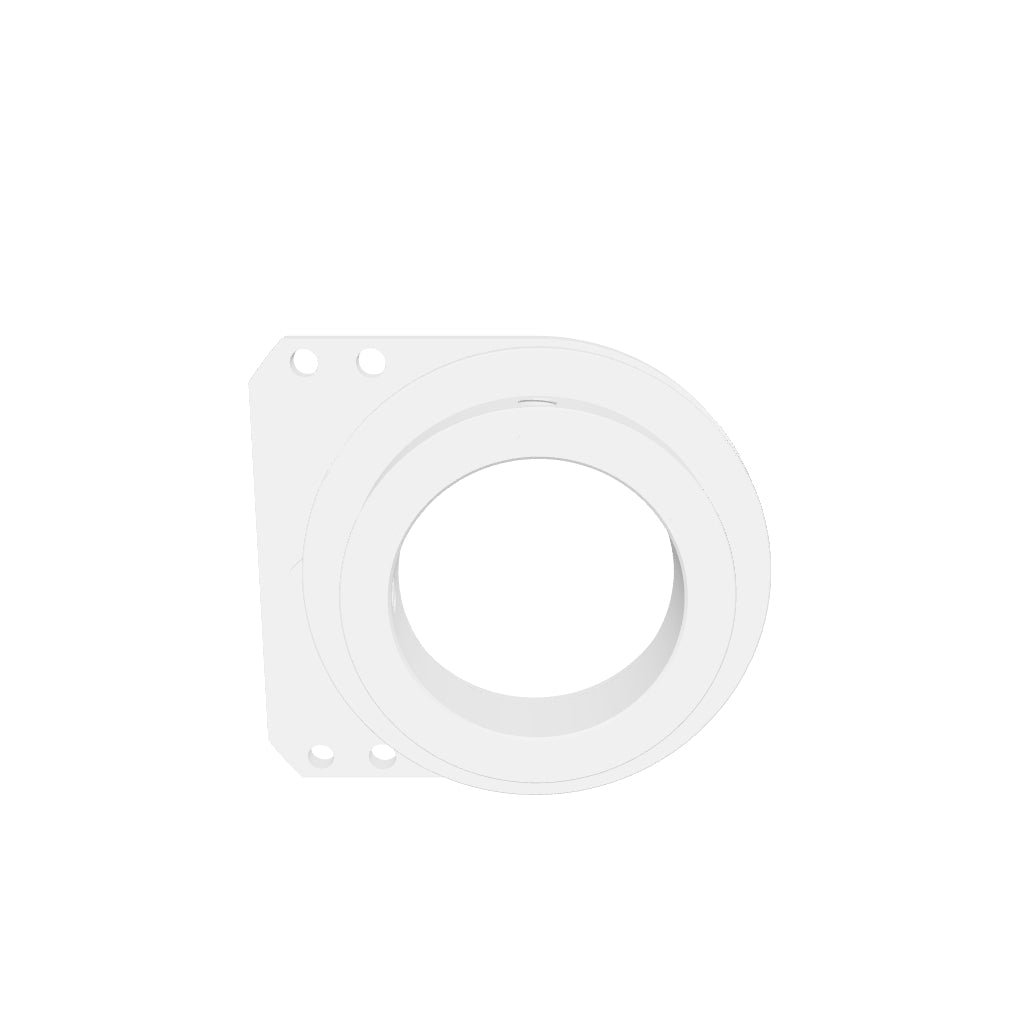

ZeroErr eCoder20 Magnetic Encoders
Regular price
$180.00
Unit price
ZeroErr eCoder20 Magnetic Encoders - Absolute value of a single lap (RS485) / 17-bit / Not Include is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
ZeroErr eCoder20 Magnetic Encoders
Regular priceFrom
$180.00
Unit price
ZeroErr eCoder20 Magnetic Encoders - Absolute value of a single lap (RS485) / 17-bit / Not Include is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | eCoder20 |
| Maximum absolute tolerance(°) | <0.06 |
| Repeatability(") | 士10 |
| Reading type | Axial reading |
| Resolution | 17 bit to 21 bit and 16 bit multiturn counter option |
| Maximum speed | 6000 RPM (eCoder35, eCoder45, eCoder65, eCoder35H) 12000 RPM (eCoder11, eCoder18, eCoder20) |
| Hysteresis | Less than unit of resolution |
| Supply voltage(V) | 4.7 V ~ 5.4V |
| Current consumption(mA) | 105 mA ~ 125 mA (eCoder11, eCoder18, eCoder20) 70 mA ~ 90 mA (eCoder35, eCoder45, eCoder65) 115 mA ~ 130 mA (eCoder35H) |
| Connector | 8-Pin connection |
| Battery standard voltage(V) | 3.6 |
| Battery warning voltage(V) | <3.05 |
| Battery operating current（μA） | 4 |
| Storage & operating temperature | Storage: -40 to +105°C Operating: -40 to +105°C |
| External magnetic field(mT) | ±20 |
| Parameter | eCoder20 |
|---|---|
| Magnetic ring inner diameter (mm) | 20 |
| Magnetic ring outer diameter (mm) | 33.5 |
| Magnetic ring weight (g) | 9.2 |
| Magnetic ring thickness (mm) | 6.4 |
| Readhead inner diameter (mm) | 22 |
| Readhead outer diameter (mm) | 34 |
| Readhead weight (g) | 3.6 |
| Readhead maximum thickness (mm) | 6 |
| Readhead arc length (°) | 360° |
| Maximum resolution (bits) | 19 |
