SITO DRIVE | SKU:

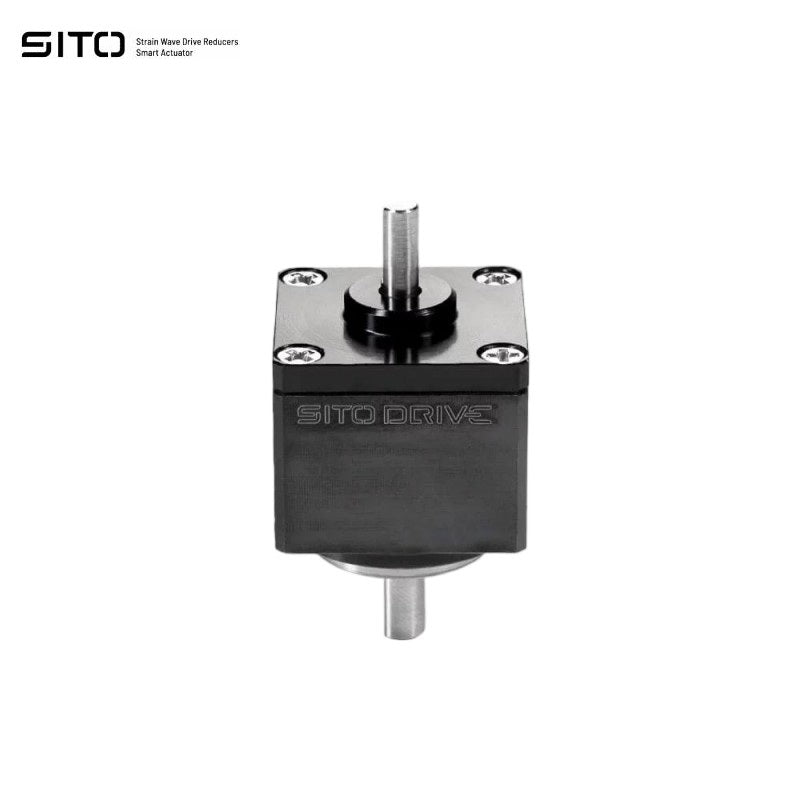

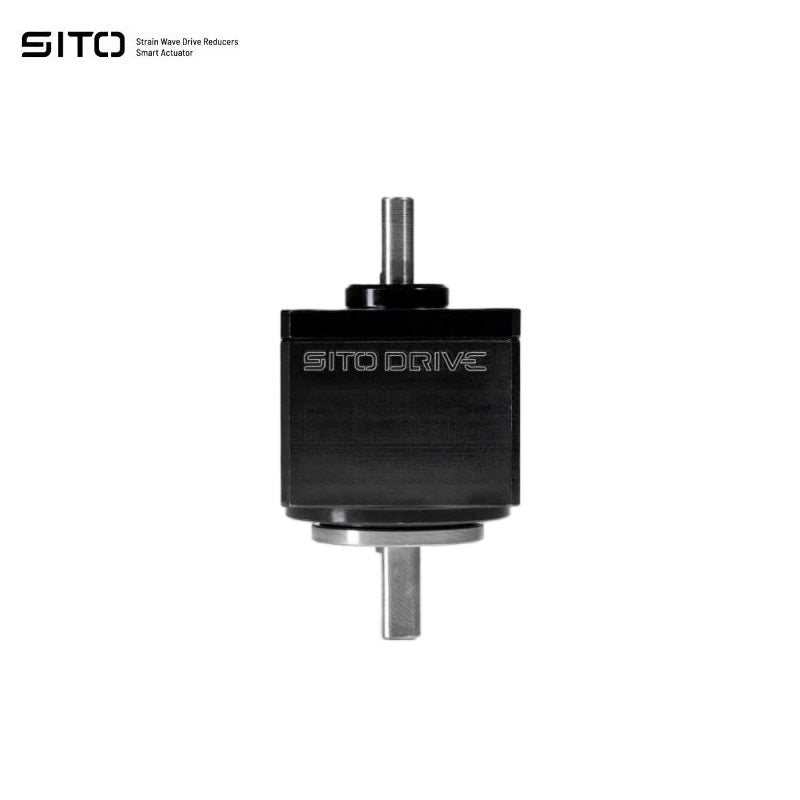

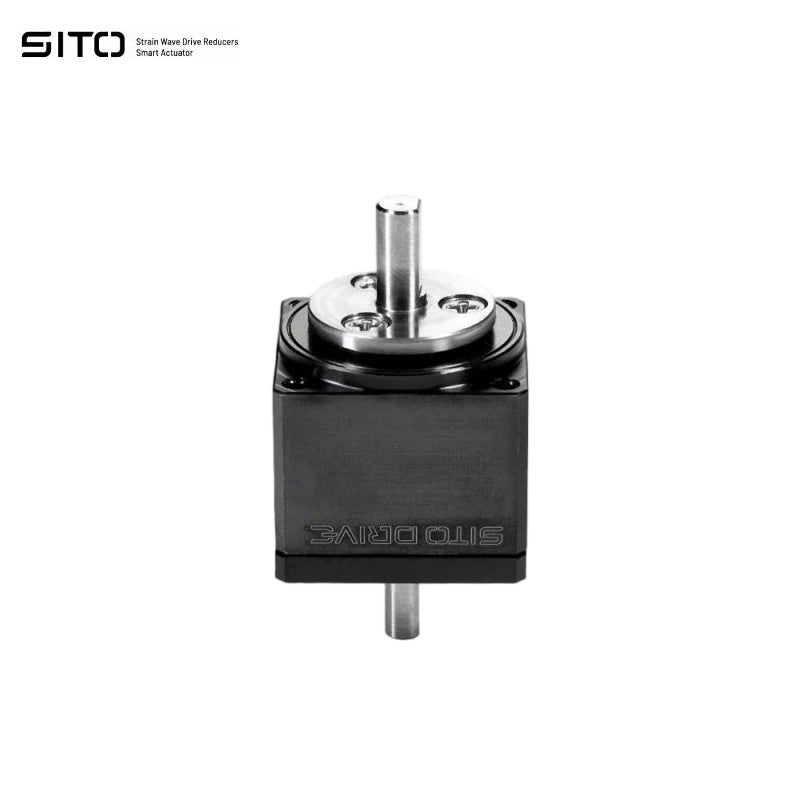

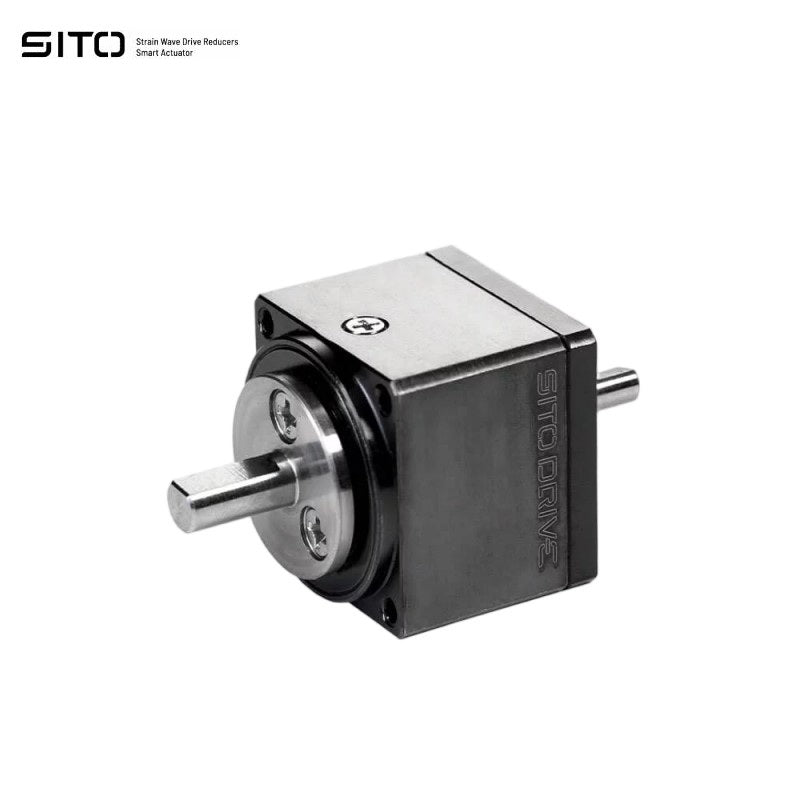

SITO DRIVE CS Mini-05 Reducer
Regular price
$140.00
Unit price
Unavailable
SITO DRIVE CS Mini-05 Reducer - 30 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
SITO DRIVE CS Mini-05 Reducer
Regular price
$140.00
Unit price
Unavailable
SITO DRIVE CS Mini-05 Reducer - 30 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value | Value | Value |
|---|---|---|---|
| Model | CS-05-1U-U | CS-05-1U-U | CS-05-1U-U |
| Transmission Ratio | 30 | 50 | 80 |
| Rated Torque at 2000r/min input | 0.25 Nm | 0.4 Nm | 0.52 Nm |
| Peak Torque allowed during start/stop | 0.5 Nm | 0.9 Nm | 1.35 Nm |
| Maximum allowable average load torque | 0.38 Nm | 0.53 Nm | 0.84 Nm |
| Instantaneous Maximum Torque | 0.9 Nm | 1.8 Nm | 2.5 Nm |
| Maximum allowable input speed | 10000 rpm | 10000 rpm | 10000 rpm |
| Allowable average speed | 6500 rpm | 6500 rpm | 6500 rpm |
| Moment of inertia | 2.5 (×10⁻⁴kg·m²) | 2.5 (×10⁻⁴kg·m²) | 2.5 (×10⁻⁴kg·m²) |
| Backlash | ≤20 arcsec | ≤20 arcsec | ≤20 arcsec |
