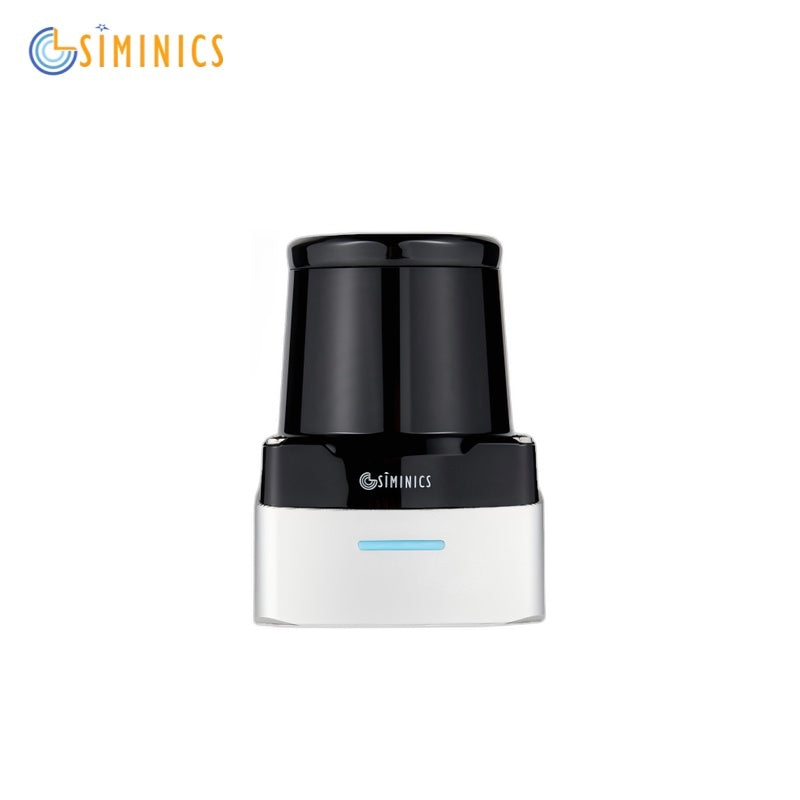

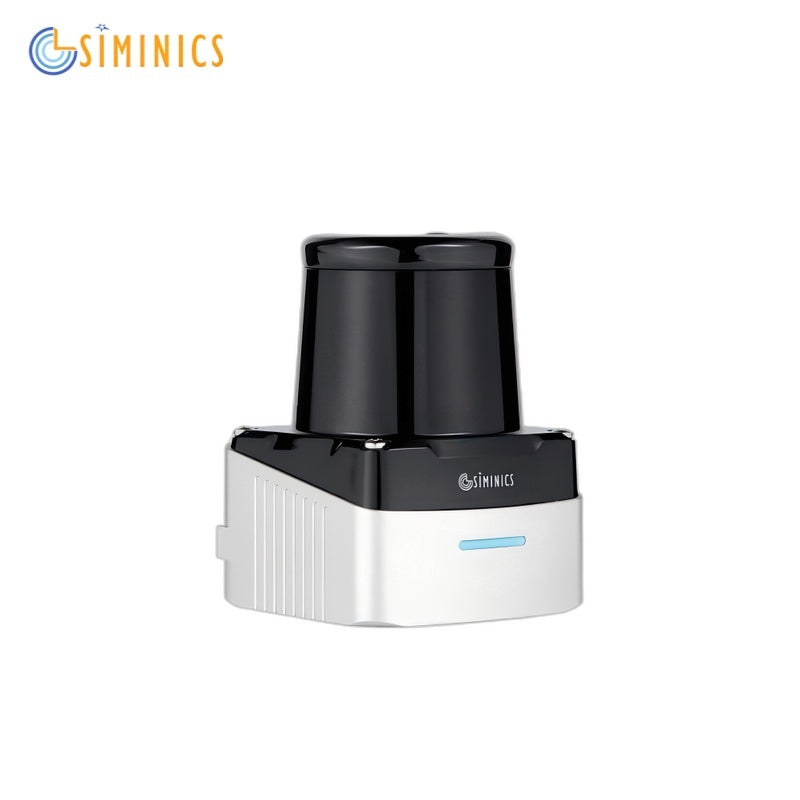

SIMINICS PAVO2 LiDAR

$1,379.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information

Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter PAVO2‑LS‑50H PAVO2‑LS‑50HC PAVO2‑LS‑50HP
Detection Range @90% Reflectivity 50m 50m 50m
Detection Range @10% Reflectivity 20m 20m 20m
Ranging Accuracy ±20mm ±20mm ±20mm
Short Range Accuracy (0.1m~15m) ±10mm ±10mm ±10mm
Scanning Range 280° 360° 280°
Vertical Field of View ±0.5° ±0.5° ±0.5°
Scan Frame Rate 25Hz/50Hz 100Hz
Min Angular Resolution 0.08°/0.16°/0.32° 0.32°
Supply Voltage 9V-26V 9V-26V 9V-26V
Operating Current 0.25A @12V 0.25A @12V 0.25A @12V
Laser Source 905nm, Class 1 905nm, Class 1 905nm, Class 1
Power Consumption 3W (MAX) 3W (MAX) 3W (MAX)
Data Interface Ethernet 100BASE-TX Ethernet 100BASE-TX Ethernet 100BASE-TX
Startup Time <20s <20s <20s
Ambient Light Immunity >80,000 LUX >80,000 LUX >80,000 LUX
Operating Temperature -10°C ~ 55°C -10°C ~ 55°C -10°C ~ 55°C
Storage Temperature -30°C ~ 75°C -30°C ~ 75°C -30°C ~ 75°C
Humidity <80% <80% <80%
Operating Life 5 years (motor life) 5 years (motor life) 5 years (motor life)
Vibration Test 10-55Hz, 0.75mm amplitude, X/Y/Z axes, 2h each;
50-200Hz, 196m/s² (20G), sweep 2min/cycle, X/Y/Z axes, 2h each		 10-55Hz, 0.75mm amplitude, X/Y/Z axes, 2h each;
50-200Hz, 196m/s² (20G), sweep 2min/cycle, X/Y/Z axes, 2h each		 10-55Hz, 0.75mm amplitude, X/Y/Z axes, 2h each;
50-200Hz, 196m/s² (20G), sweep 2min/cycle, X/Y/Z axes, 2h each
Ingress Protection IP67 IP67 IP67
Dimensions 60×60×80mm 60×60×80mm 60×60×80mm
Weight 250g (without cable) 250g (without cable) 250g (without cable)
