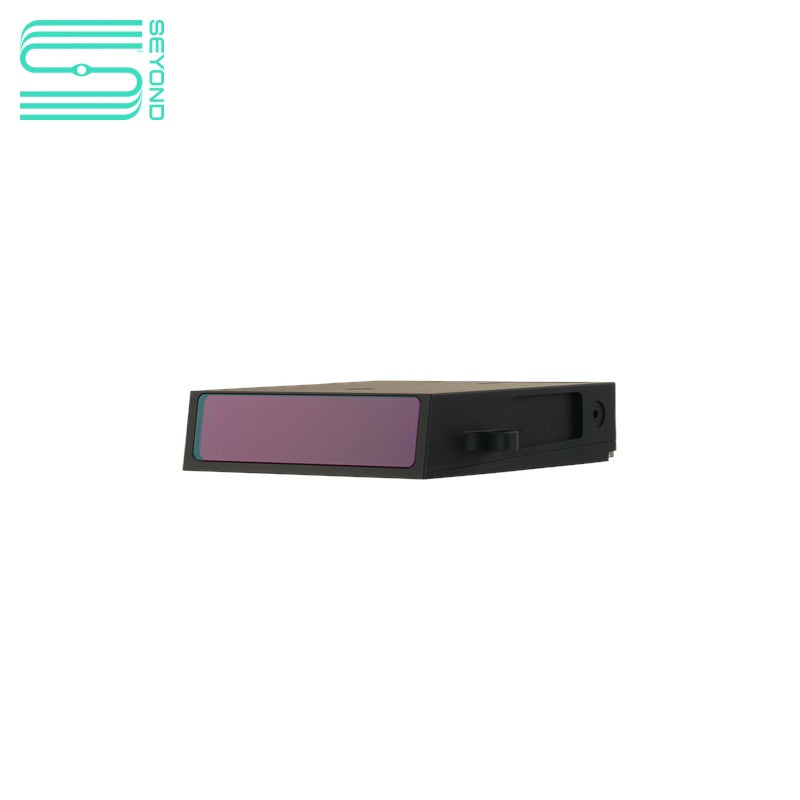

Seyond Robin E2 LiDAR

$11,600.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information

Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Detection Range 300m @10%
Field of View (H×V) 120° × 19.2°
Angular Resolution (H×V) 0.05° × 0.016°
Frame Rate 10 / 20 FPS
Laser Lines 1160 lines (up to 3400 lines supported)
Operating Temperature -40°C ~ 85°C
Ingress Protection IP6K7 (body), IP6K9K (window)
Laser Wavelength & Safety 940nm, Class 1 (IEC 60825-1)
Dimensions (H×W×D) 32mm × 121mm × 127mm
Weight < 710g
Power Consumption < 10W
Customization Available upon request
