SENSING | SKU:

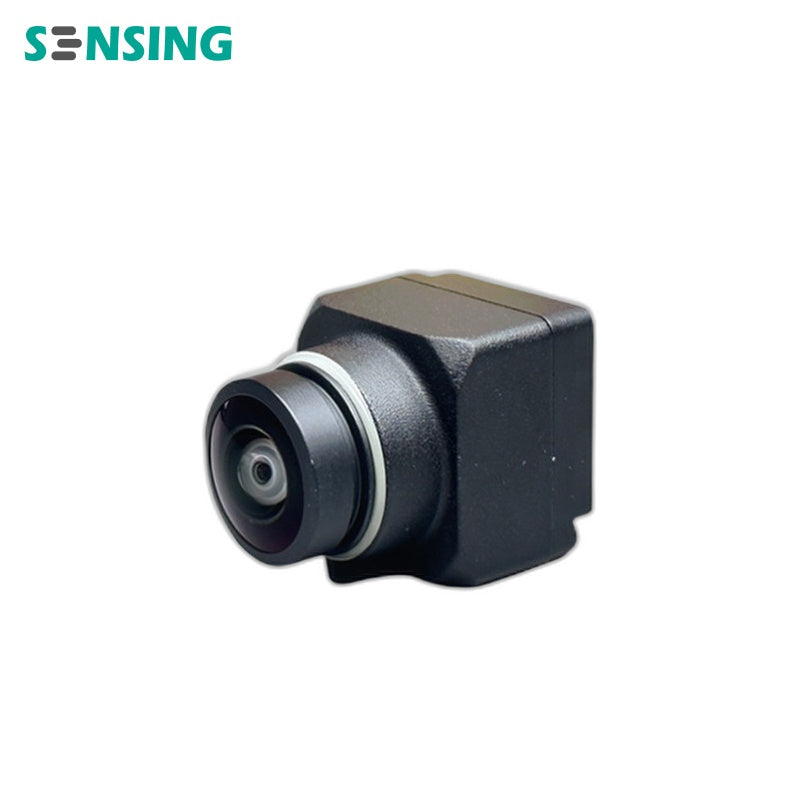

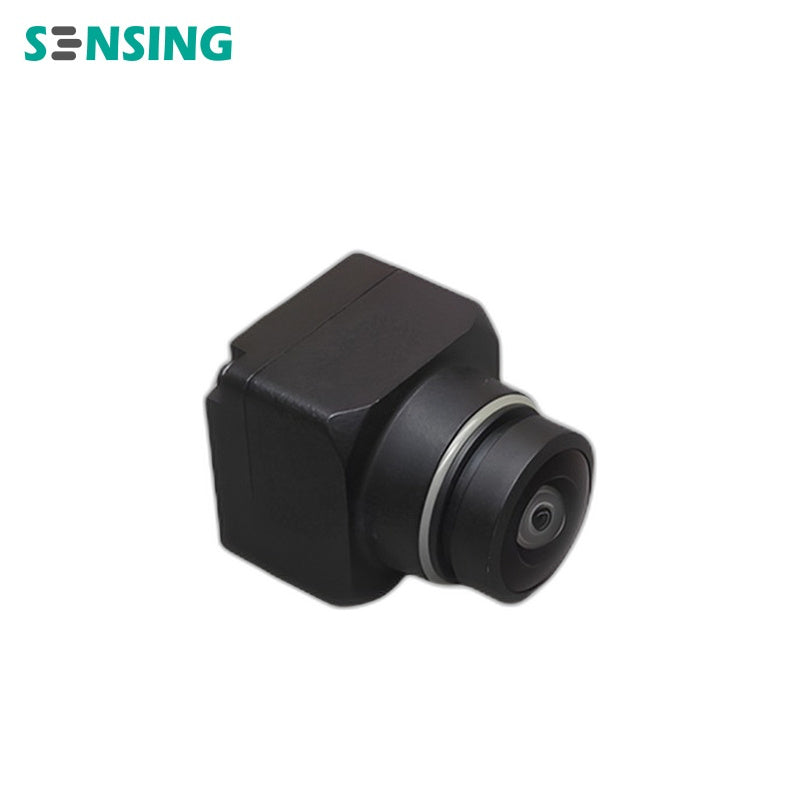

SENSING SG2S-OX03CC-F3A Camera
Regular price
$630.00
Unit price
SENSING SG2S-OX03CC-F3A Camera - SG2S-OX03CC-F3A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
SENSING SG2S-OX03CC-F3A Camera
Regular price
$630.00
Unit price
SENSING SG2S-OX03CC-F3A Camera - SG2S-OX03CC-F3A is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Sensor | OmniVision OX03C10 RGGB |
| ISP | / |
| Image Size | 1/2.6 inch CMOS |
| Output Pixels | 1920H*1080V |
| Pixel Size | 3um*3um |
| Frame Rate | MAX 60fps |
| HDR Support | Yes |
| LFM | Yes |
| Output data | MIPI / RAW 12 |
| Serializer | TI DS90UB953 |
| Camera Interface | FPDLink III |
| Power Supply | 9~16V POC |
| Current | <250mA@12VDC |
| Connector | Amphenol Fakra (Z Code) |
| Operating temp. range | -40~+85°C |
| Dimensions | W: 25mm, L: 25mm, H: 18.6mm |
| Weight | <50g |
SENSING-SG2S-OX03CC-F3A-Drawing.pdf
