PaXini PX6AX GEN4 Multidimensional Tactile Sensor
Regular price
$135.00
Unit price

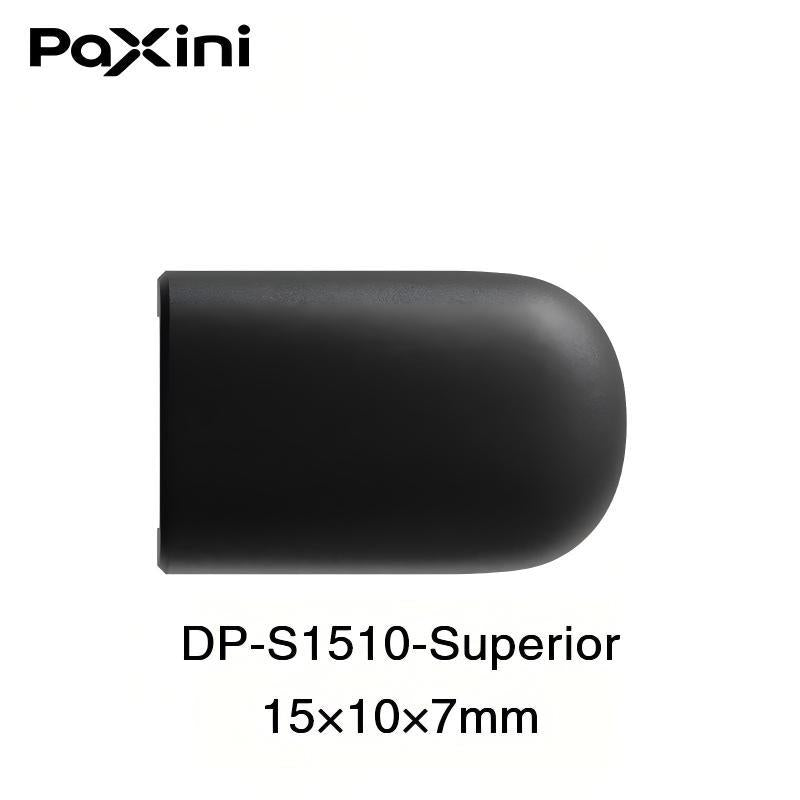

PaXini PX6AX GEN4 Multidimensional Tactile Sensor - Full Touch Haptics · New Series / DP-S1510-Superior is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
PaXini PX6AX GEN4 Multidimensional Tactile Sensor - Full Touch Haptics · New Series / DP-S1510-Superior is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Valid Multidimensional Tactile Signal Density | 30 taxels/cm² |
| Measurement Range | Normal 0-25 N; Tangential ±10 N (customized 300 N and above*) |
| Minimum Thickness | 2 mm |
| Operating Temperature | -10~50°C |
| Overload Temperature | -20~120°C |
| Flame-Retardant Rating | V-0 (UL94 highest flame-retardant rating) |
| Service Life | Over 10 million measurements |
| Measurement Sampling Frequency | 1000000 Hz |
| Maximum Output Frequency | 1000 Hz** |
| Minimum Detectable Force | 0.005 N* |
| Spatial Resolution | 0.1 mm |
| Safe Overload | 200% |
| Impact Overload | 300% |
| Repeatability | <0.5 %FS |
| Ingress Protection | IP68* |
| Operating Voltage | 3~5 V |
