PaXini Tech | SKU:

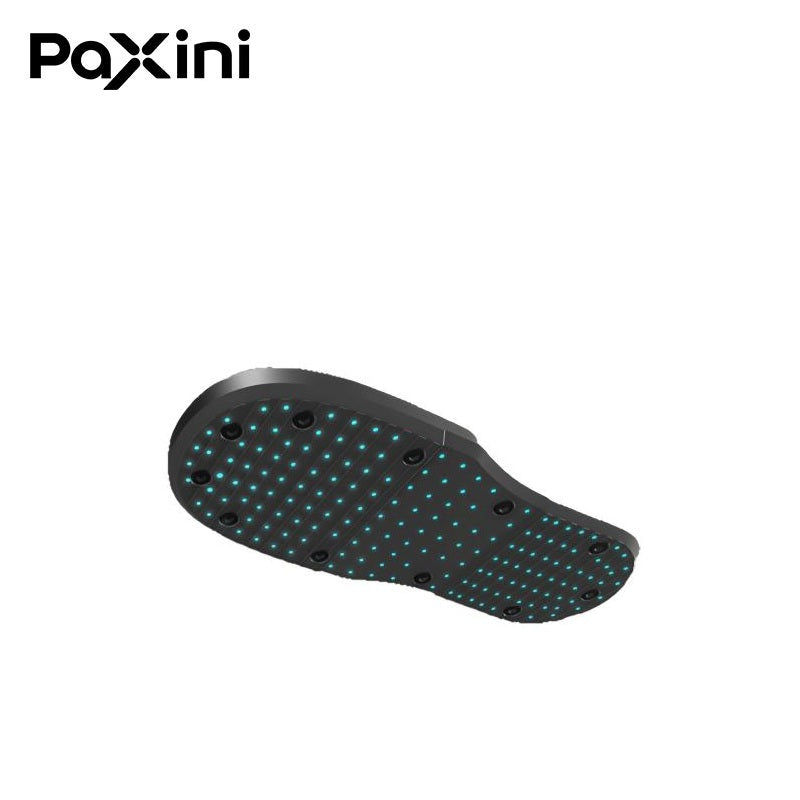

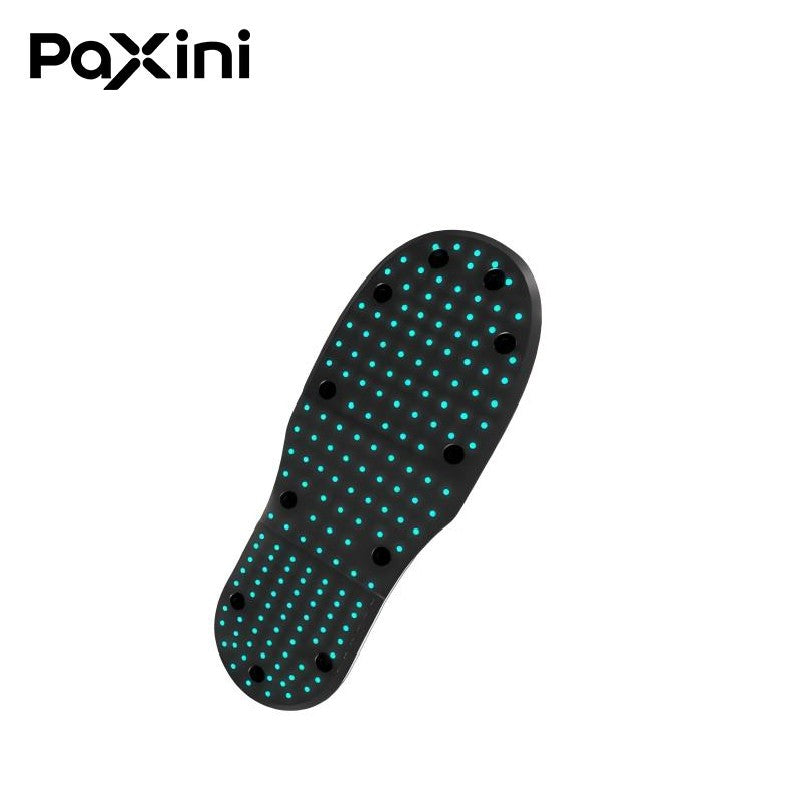

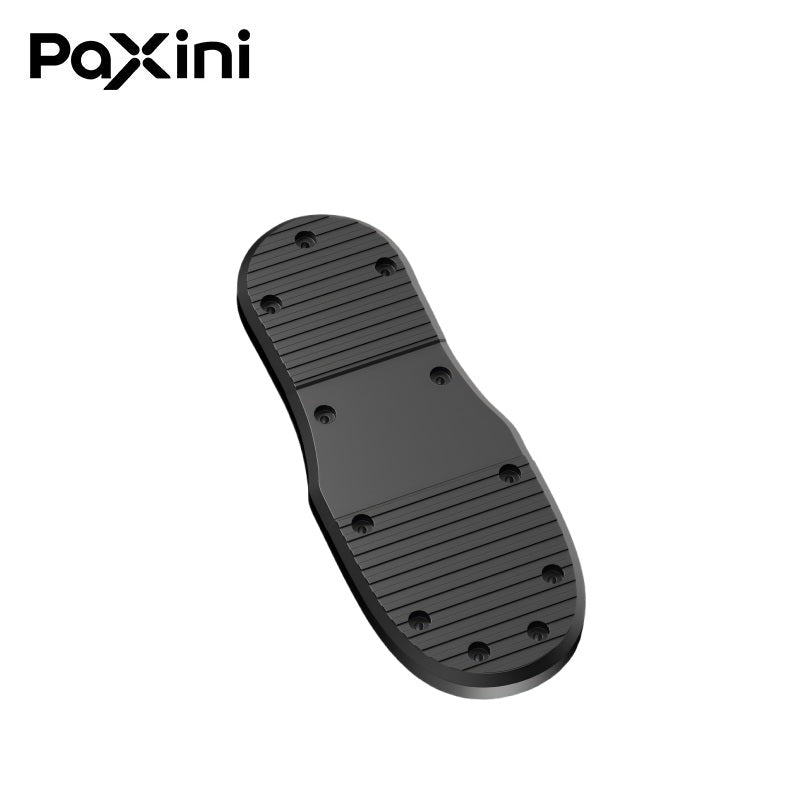

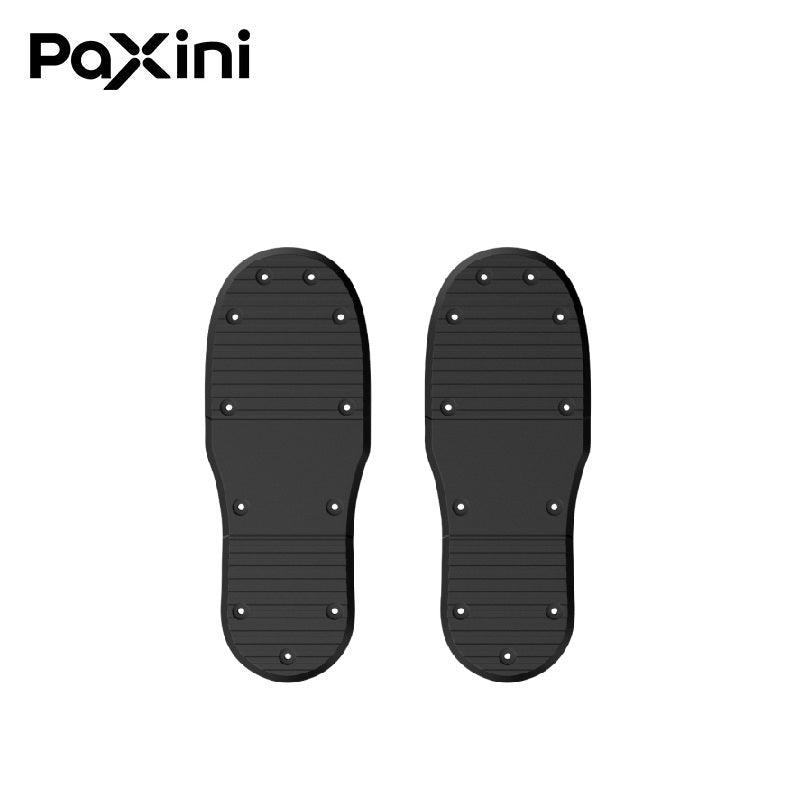

PaXini PX-FOOTRIX Tactile Sensor
Regular price
$950.00
Unit price
PaXini PX-FOOTRIX Tactile Sensor - PX-FOOTRIX / Left is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
PaXini PX-FOOTRIX Tactile Sensor
Regular price
$950.00
Unit price
PaXini PX-FOOTRIX Tactile Sensor - PX-FOOTRIX / Left is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Range of Force | Fx,Fy+ 1000 N;Fz 0~2000 N* |
| Resolution | 1%FS* |
| Spatial Resolution | 1cm |
| Overload Limit | 300 %FS* |
| Sampling Rate | 150 Hz* |
| Material | Rubber |
| Operating Temperature | -10-50°C |
| Water and Dust Resistance | IP67/68 |
| Operating Voltage | 3~5V/12V |
| Communication Protocols | SPI/UART/RS485/USB/12 C/CAN FD |
