LUMOS | SKU:

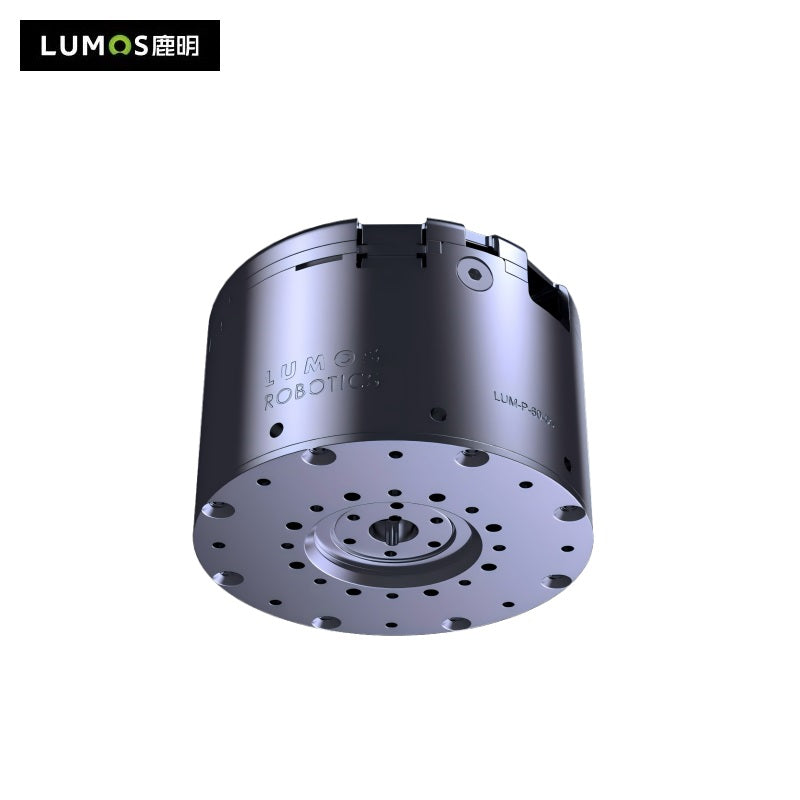

LUMOS LUM-P-60-05 Motor
Regular price
$750.00
Unit price
/
Unavailable
LUMOS LUM-P-60-05 Motor - LUM-P-60-05 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
LUMOS LUM-P-60-05 Motor
Regular price
$750.00
Unit price
/
Unavailable
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Communication Interface |
CANFD
|
| OTA Firmware Update | Supported |
| Controller | Embedded |
| Encoder | Dual Absolute Encoder |
| Reduction Type | Single-stage Planetary Reduction |
| Rated Torque | 3.8N.m |
| Peak Torque | 17N.m |
| Max Speed @48V | 900RPM |
| Operating Voltage | 24~70V (Recommended 48V) |
| Weight | 400g |
| Dimensions | 64*43.6mm |
| Reduction Ratio | 5 |
