Laifual

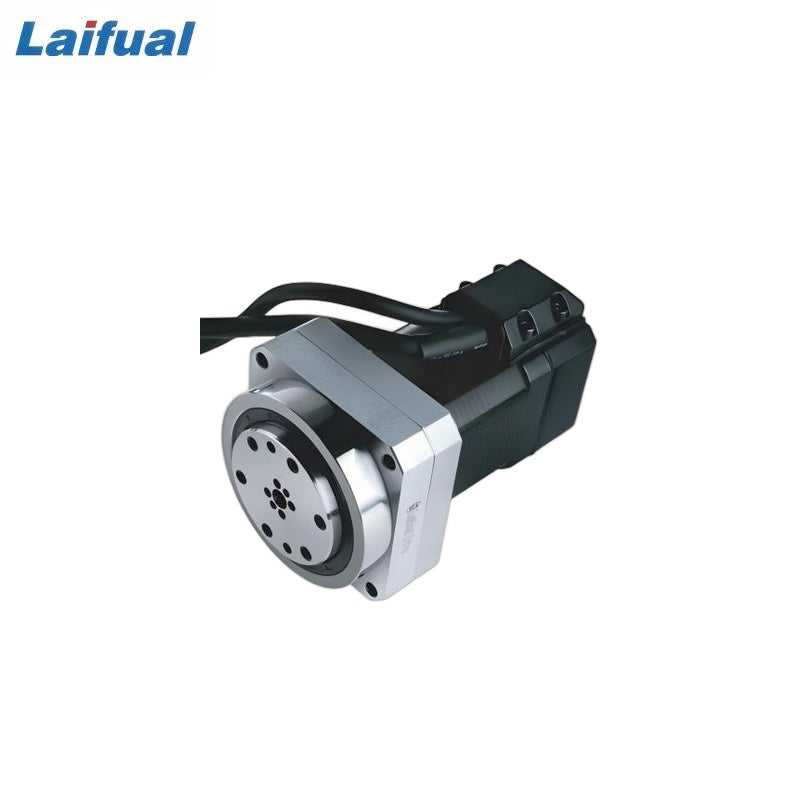

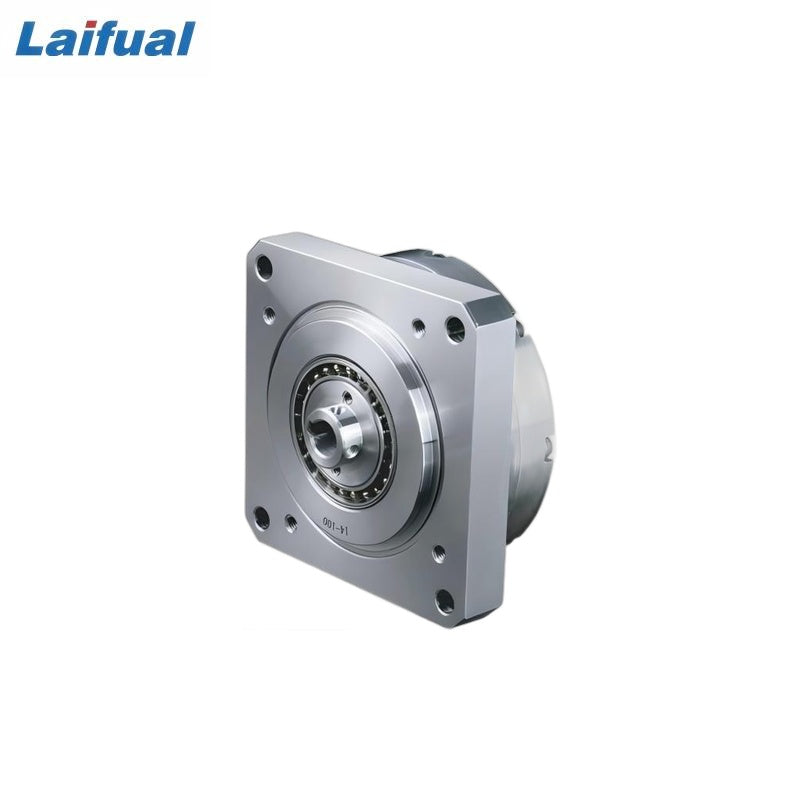

Laifual LFS-I Series Reducer

$260.00

Version

LFS-11-XX-U-I LFS-14-XX-U-I

Speed Ratio

50 80 100

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Application Scenarios

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Technical Specifications

Parameter	Value			Value
Model	LFS-11-XX-I			LFS-14-XX-I
Speed Ratio	50	80	100	50	80	100
Rated Torque at 2000 rpm Input (Nm)	3.5	4.5	5	5.4	7.8	7.8
Allowable Peak Torque during Start/Stop (Nm)	8.3	9.9	11	18	23	28
Maximum Allowable Average Load Torque (Nm)	5.5	8	8.9	6.9	11	11
Instantaneous Maximum Allowable Torque (Nm)	17	22.5	25	35	47	54
Maximum Allowable Input Speed (Grease Lubrication) (r/min)	8500	8500	8500	8500	8500	8500
Allowable Average Input Speed (Grease Lubrication) (r/min)	3500	3500	3500	3500	3500	3500
Backlash (arcsec)	≤20	≤20	≤20	≤20	≤20	≤20
Weight (kg)	0.35	0.35	0.35	0.63	0.63	0.63
Design Life (h)	7000	7000	7000	10000	10000	10000
Transmission Accuracy (arcmin)	2	2	2	1.5	1.5	1.5
Hysteresis Loss (arcmin)	2	2	2	2	1	1
T1 (Nm)	0.8	0.8	0.8	2	2	2
T2 (Nm)	2	2	2	6.9	6.9	6.9
K1 (×10⁴ Nm/rad)	0.221	0.267	0.267	0.34	0.47	0.47
K2 (×10⁴ Nm/rad)	0.3	0.333	0.333	0.47	0.61	0.61
K3 (×10⁴ Nm/rad)	0.32	0.432	0.432	0.57	0.71	0.71

Laifual LFS-I Series-Drawing.pdf
