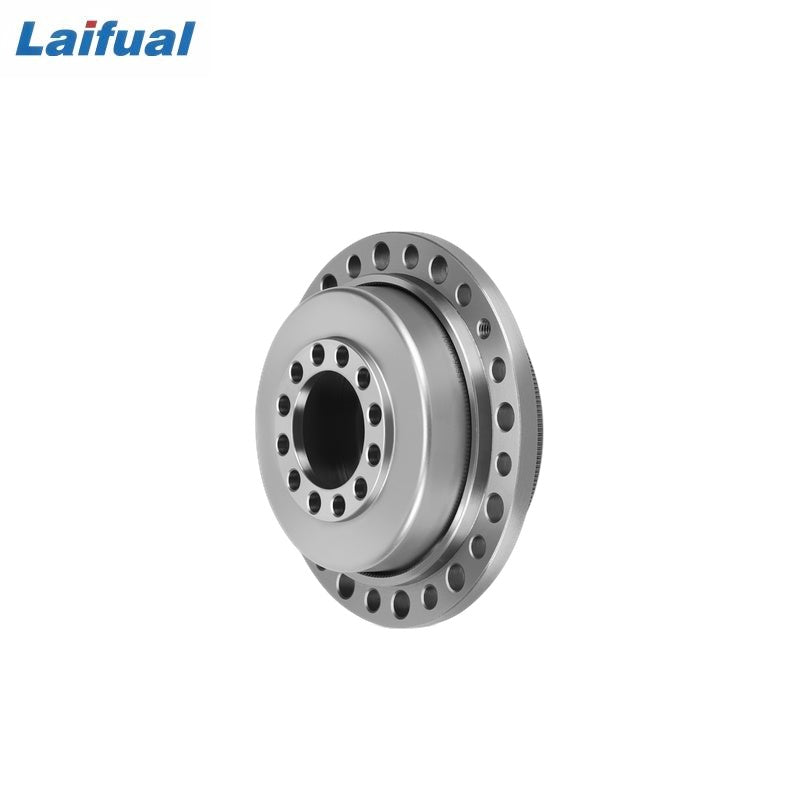

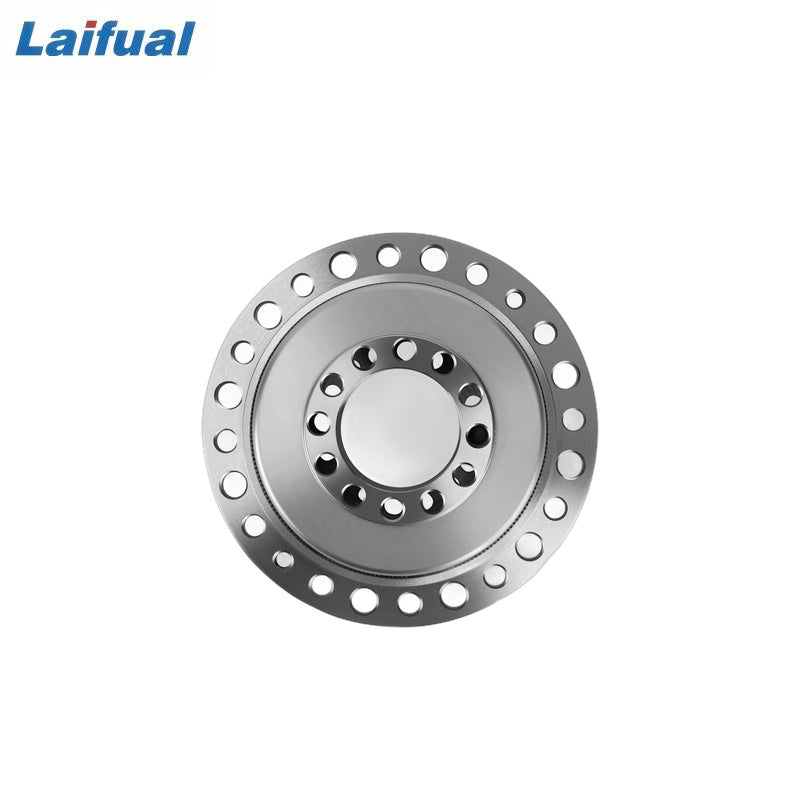

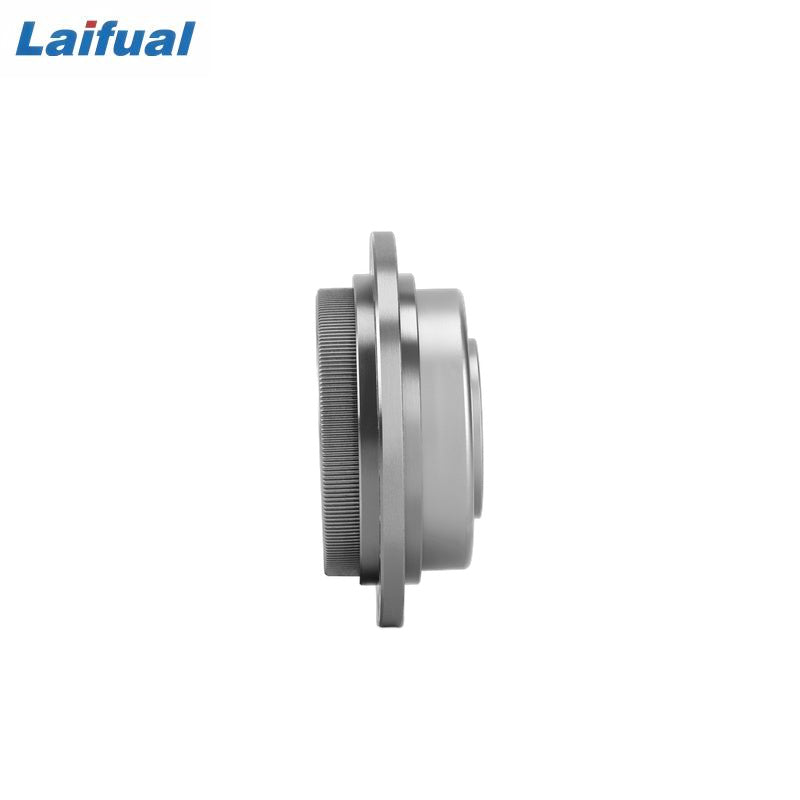

Laifual FSG-II Series Reducer

$435.00
Version
Speed Ratio

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value

Value


Value



Model FSG-14-XX-II

FSG-17-XX-II


FSG-20-XX-II



Speed Ratio 50 80 100 50 80 100 120 50 80 100 120 160
Rated Torque at 2000 rpm Input (Nm) 7 10 10 21 29 31 31 33 44 52 52 52
Rated Torque at 2000 rpm Input (kgf·m) 0.7 1 1 2.1 2.9 3.2 3.2 3.3 4.5 5.3 5.3 5.3
Allowable Peak Torque during Start/Stop (Nm) 23 30 36 44 56 70 70 73 96 107 113 120
Allowable Peak Torque during Start/Stop (kgf·m) 2.3 3.1 3.7 4.5 5.7 7.2 7.2 7.4 9.8 10.9 11.5 12.2
Maximum Allowable Average Load Torque (Nm) 9 14 14 34 35 51 51 44 61 64 64 64
Maximum Allowable Average Load Torque (kgf·m) 0.9 1.4 1.4 3.4 3.6 5.2 5.2 4.5 6.2 6.5 6.5 6.5
Instantaneous Maximum Allowable Torque (Nm) 46 58[1] 58[1] 91 109[1] 109[1] 109[1] 127 165 191 191 191
Instantaneous Maximum Allowable Torque (kgf·m) 4.7 5.9[1] 5.9[1] 9 11[1] 11[1] 11[1] 13 17 20 20 20
Maximum Allowable Input Speed (Grease Lubrication) (r/min) 8500 8500 8500 7300 7300 7300 7300 6500 6500 6500 6500 6500
Allowable Average Input Speed (Grease Lubrication) (r/min) 3500 3500 3500 3500 3500 3500 3500 3500 3500 3500 3500 3500
Backlash (arcsec) ≤20 ≤20 ≤20 ≤20 ≤20 ≤20 ≤20 ≤20 ≤20 ≤20 ≤20 ≤20
Weight (kg) 0.51 0.51 0.51 0.67 0.67 0.67 0.67 0.96 0.96 0.96 0.96 0.96
Design Life (h) 10000 15000 15000 10000 15000 15000 15000 10000 15000 15000 15000 15000
Angular Transmission Accuracy (arcmin) 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1 1 1 1 1
Hysteresis Loss (arcmin) 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1 1 1 1 1
Stiffness T1 (Nm) 2 2 2 3.9 3.9 3.9 3.9 7 7 7 7 7
Stiffness T2 (Nm) 6.9 6.9 6.9 12 12 12 12 25 25 25 25 25
Stiffness K1 (×10⁴ Nm/rad) 0.34 0.47 0.47 0.81 1 1 1 1.3 1.6 1.6 1.6 1.6
Stiffness K2 (×10⁴ Nm/rad) 0.47 0.61 0.61 1.1 1.4 1.4 1.4 1.8 2.5 2.5 2.5 2.5
Stiffness K3 (×10⁴ Nm/rad) 0.57 0.71 0.71 1.3 1.6 1.6 1.6 2.3 2.9 2.9 2.9 2.9
Parameter Value



Value



Model FSG-25-XX-II



FSG-32-XX-II



Speed Ratio 50 80 100 120 160 50 80 100 120 160
Rated Torque at 2000 rpm Input (Nm) 51 82 87 87 87 99 153 178 178 178
Rated Torque at 2000 rpm Input (kgf·m) 5.2 8.4 8.9 8.9 8.9 10 16 18 18 18
Allowable Peak Torque during Start/Stop (Nm) 127 178 204 217 229 281 395 433 459 484
Allowable Peak Torque during Start/Stop (kgf·m) 13 18 21 22 23 29 40 44 47 49
Maximum Allowable Average Load Torque (Nm) 72 113 140 140 140 140 217 281 281 281
Maximum Allowable Average Load Torque (kgf·m) 7.3 12 14 14 14 14 22 29 29 29
Instantaneous Maximum Allowable Torque (Nm) 242 332 369 395 408 497 738 841 892 892
Instantaneous Maximum Allowable Torque (kgf·m) 25 34 38 40 42 51 75 86 91 91
Maximum Allowable Input Speed (Grease Lubrication) (r/min) 5600 5600 5600 5600 5600 4800 4800 4800 4800 4800
Allowable Average Input Speed (Grease Lubrication) (r/min) 3500 3500 3500 3500 3500 3500 3500 3500 3500 3500
Backlash (arcsec) ≤20 ≤20 ≤20 ≤20 ≤20 ≤20 ≤20 ≤20 ≤20 ≤20
Weight (kg) 1.46 1.46 1.46 1.46 1.46 3.11 3.11 3.11 3.11 3.11
Design Life (h) 10000 15000 15000 15000 15000 10000 15000 15000 15000 15000
Angular Transmission Accuracy (arcmin) 1 1 1 1 1 1 1 1 1 1
Hysteresis Loss (arcmin) 1 1 1 1 1 1 1 1 1 1
Stiffness T1 (Nm) 14 14 14 14 14 29 29 29 29 29
Stiffness T2 (Nm) 48 48 48 48 48 108 108 108 108 108
Stiffness K1 (×10⁴ Nm/rad) 2.5 3.1 3.1 3.1 3.1 5.4 6.7 6.7 6.7 6.7
Stiffness K2 (×10⁴ Nm/rad) 3.4 5 5 5 5 7.8 11 11 11 11
Stiffness K3 (×10⁴ Nm/rad) 4.4 5.7 5.7 5.7 5.7 9.8 12 12 12 12
[1] The instantaneous maximum allowable torque is limited by the transmission torque of the output-side connecting screws.
