Laifual

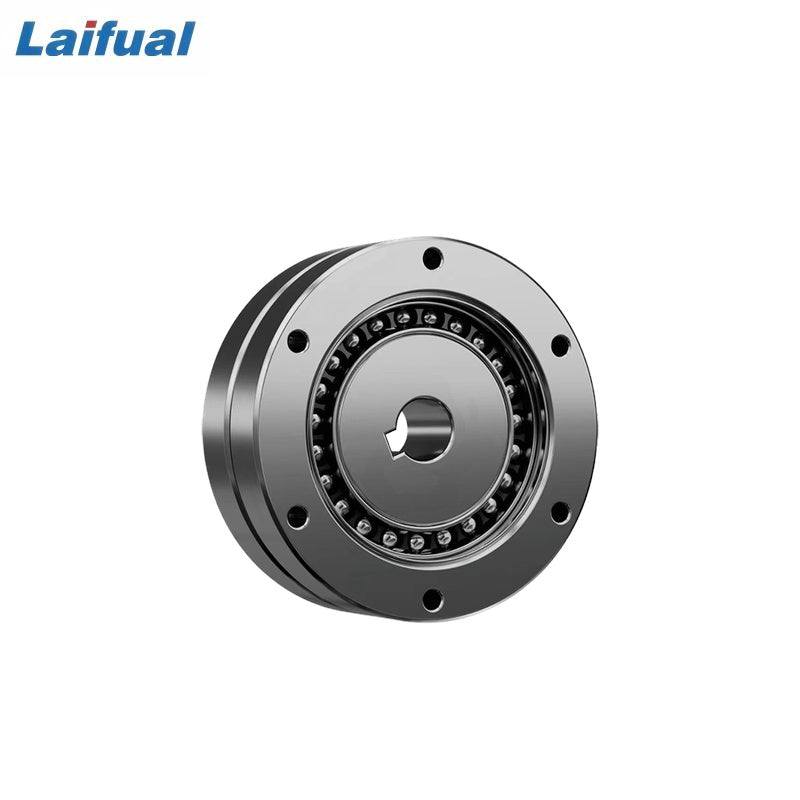

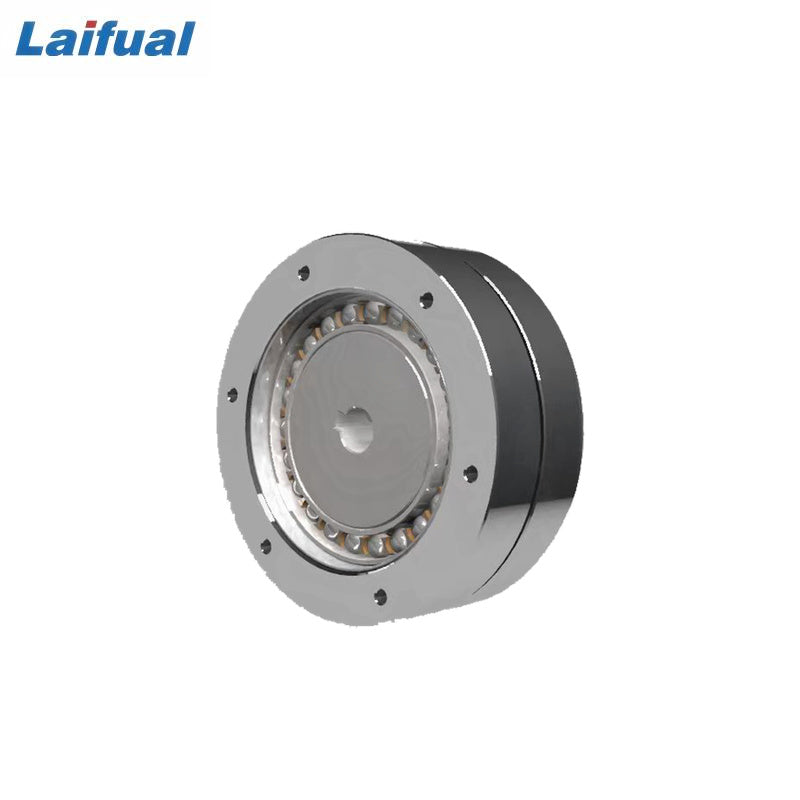

Laifual FBS-U-C-I Series Reducer

$300.00
Version
Speed Ratio

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value

Value

Value

Model FBS-U-C-11-XX-I

FBS-U-C-14-XX-I

FBS-U-C-17-XX-I

Speed Ratio 50 80 100 50 80 100 50 80 100
Rated Torque at 2000 rpm Input (Nm) 3.5 5 5 5.4 7.8 7.8 16 22 24
Rated Torque at 2000 rpm Input (kgf·m) 0.36 0.51 0.51 0.55 0.8 0.8 1.6 2.2 2.4
Allowable Peak Torque during Start/Stop (Nm) 8.3 11 11 18 23 28 34 43 54
Allowable Peak Torque during Start/Stop (kgf·m) 0.85 1.12 1.1 1.8 2.4 2.9 3.5 4.4 5.5
Maximum Allowable Average Load Torque (Nm) 5.5 8.9 8.9 6.9 11 11 26 27 39
Maximum Allowable Average Load Torque (kgf·m) 0.56 0.91 0.91 0.7 1.1 1.1 2.6 2.7 4
Instantaneous Maximum Allowable Torque (Nm) 17 25 25 35 47 54 70 87 108
Instantaneous Maximum Allowable Torque (kgf·m) 1.7 2.55 2.6 3.6 4.8 5.5 7.1 8.9 11
Maximum Allowable Input Speed (Grease Lubrication) (r/min) 3600 3600 3600 3600 3600 3600 3600 3600 3600
Allowable Average Input Speed (Grease Lubrication) (r/min) 2500 2500 2500 2500 2500 2500 2500 2500 2500
Backlash (arcsec) ≤40 ≤40 ≤40 ≤40 ≤40 ≤40 ≤40 ≤40 ≤40
Parameter Value

Value

Value

Model FBS-U-C-20-XX-I

FBS-U-C-25-XX-I

FBS-U-C-32-XX-I

Speed Ratio 50 80 100 50 80 100 50 80 100
Rated Torque at 2000 rpm Input (Nm) 25 34 40 39 63 67 76 118 137
Rated Torque at 2000 rpm Input (kgf·m) 2.5 3.5 4.1 4 6.4 6.8 7.8 12 14
Allowable Peak Torque during Start/Stop (Nm) 56 74 82 98 137 157 216 304 333
Allowable Peak Torque during Start/Stop (kgf·m) 5.7 7.5 8.4 10 14 16 22 31 34
Maximum Allowable Average Load Torque (Nm) 34 47 49 55 87 108 108 167 216
Maximum Allowable Average Load Torque (kgf·m) 3.5 4.8 5 5.6 8.9 11 11 17 22
Instantaneous Maximum Allowable Torque (Nm) 98 127 147 186 255 284 382 568 647
Instantaneous Maximum Allowable Torque (kgf·m) 10 13 15 19 26 29 39 58 66
Maximum Allowable Input Speed (Grease Lubrication) (r/min) 3600 3600 3600 3600 3600 3600 3600 3600 3600
Allowable Average Input Speed (Grease Lubrication) (r/min) 2500 2500 2500 2500 2500 2500 2300 2300 2300
Backlash (arcsec) ≤40 ≤40 ≤40 ≤40 ≤40 ≤40 ≤40 ≤40 ≤40
