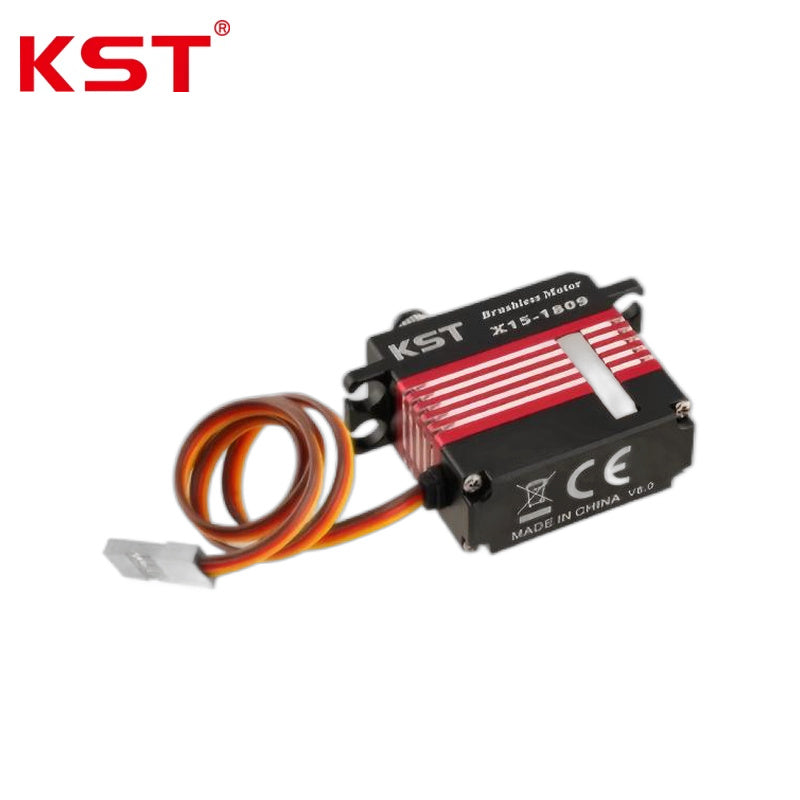

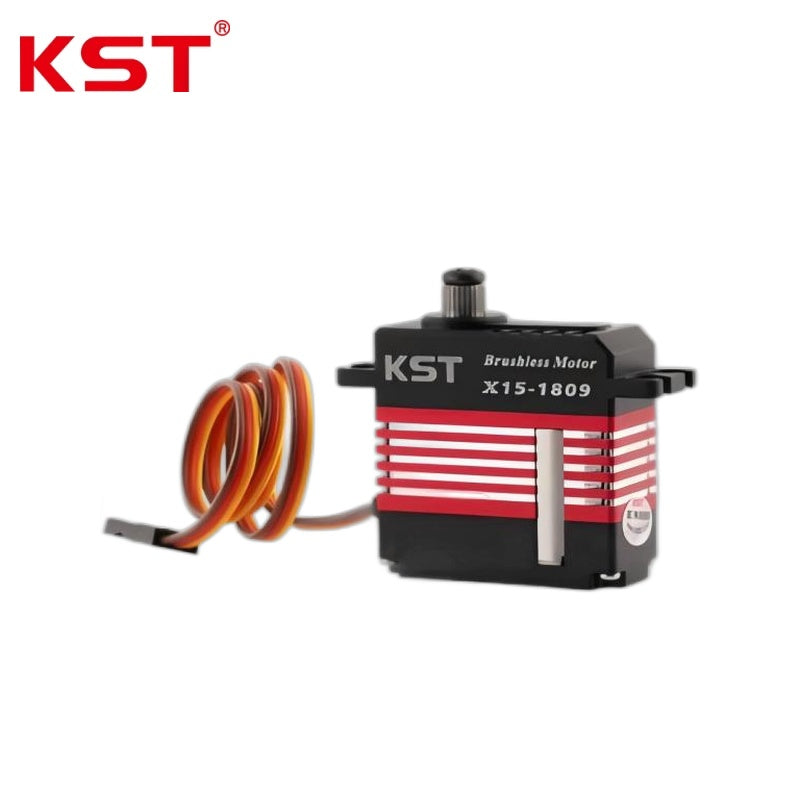

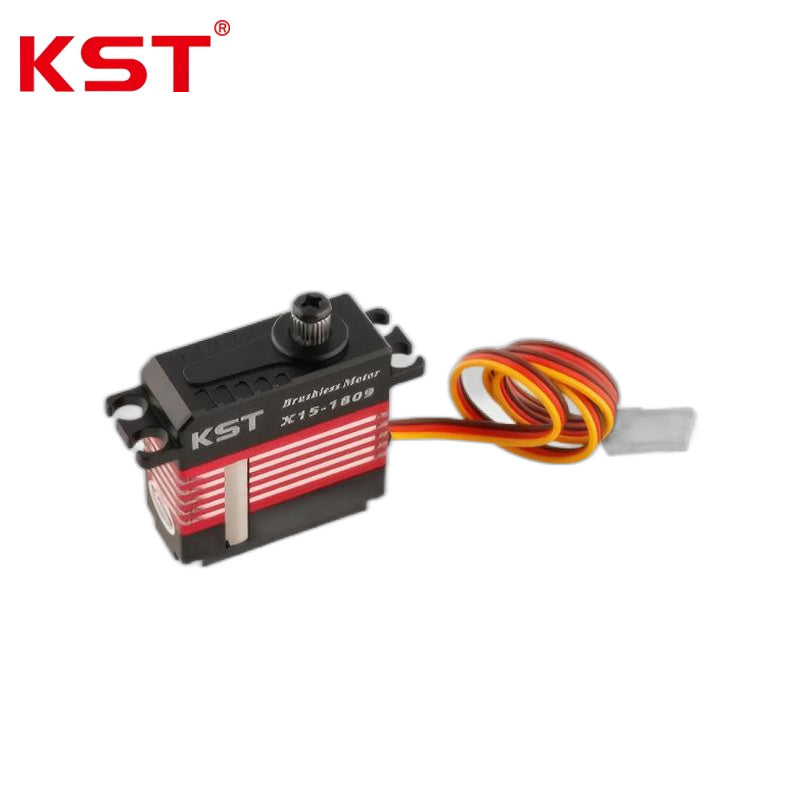

KST X15-1809 Servo Motor

$89.99

Version

X15-1809

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	Value
Performance & Electrical Ratings:
Rated Voltage	DC 7.4 V
Operating Voltage Range	DC 6.0 V - 8.4 V
Stall Torque	18 kgf.cm @ 6.0 V; 22 kgf.cm @ 7.4 V; 24 kgf.cm @ 8.4 V
Operating Speed (60deg Rotation)	0.09 sec @ 6.0 V; 0.08 sec @ 7.4 V; 0.07 sec @ 8.4 V
Operating Frequency	1520 us / 333 Hz
Control Specifications:
Default Travel Angle	+/-50deg (100deg Total Travel Angle)
Control Signal Voltage Level	HIGH: 3.3 V - 5.0 V; LOW: 0.0 V - 1.5 V
Control Pulse Width Range	900 us - 2100 us
Calibration Pulse Widths (-50 / 0 / +50 deg)	1000 us / 1500 us / 2000 us
Soft Start Feature / Programmability	Programmable / Yes
Internal Characteristics:
Motor Type	Brushless DC Motor (BLDC)
Gear Train Material	Hardened Steel
Position Feedback Sensor	Potentiometer
Ball Bearing Configuration	2BB (2 Ball Bearings)
Physical & Environmental:
Housing Material	Aluminum Alloy
External Dimensions (L x W x H)	35.5 mm x 15 mm x 35.5 mm +/- 0.2 mm
Weight	45 g +/- 10%
Operating Temperature Range	-10 deg C to +65 deg C
