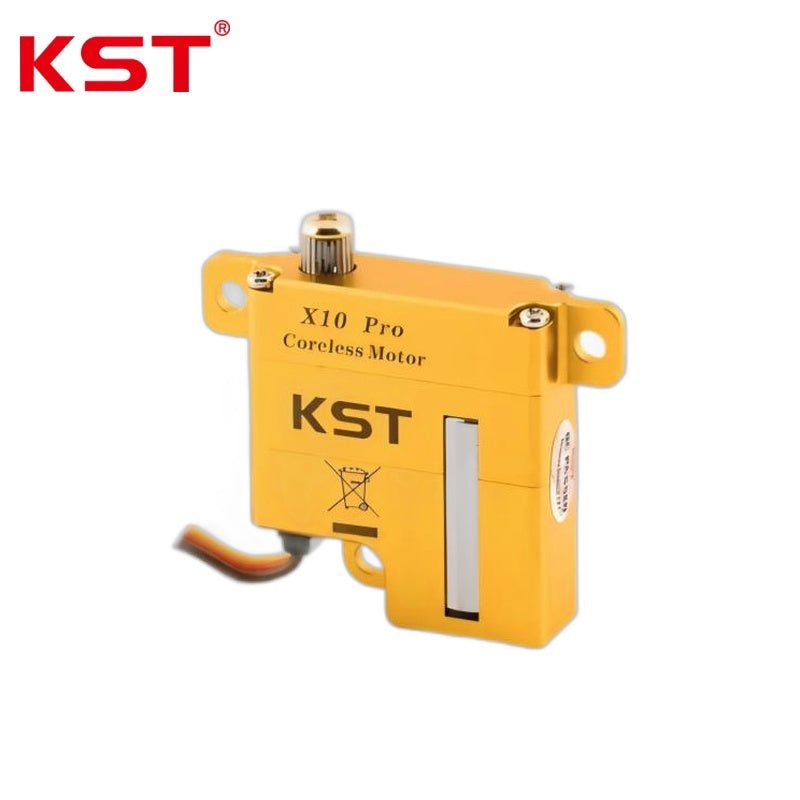

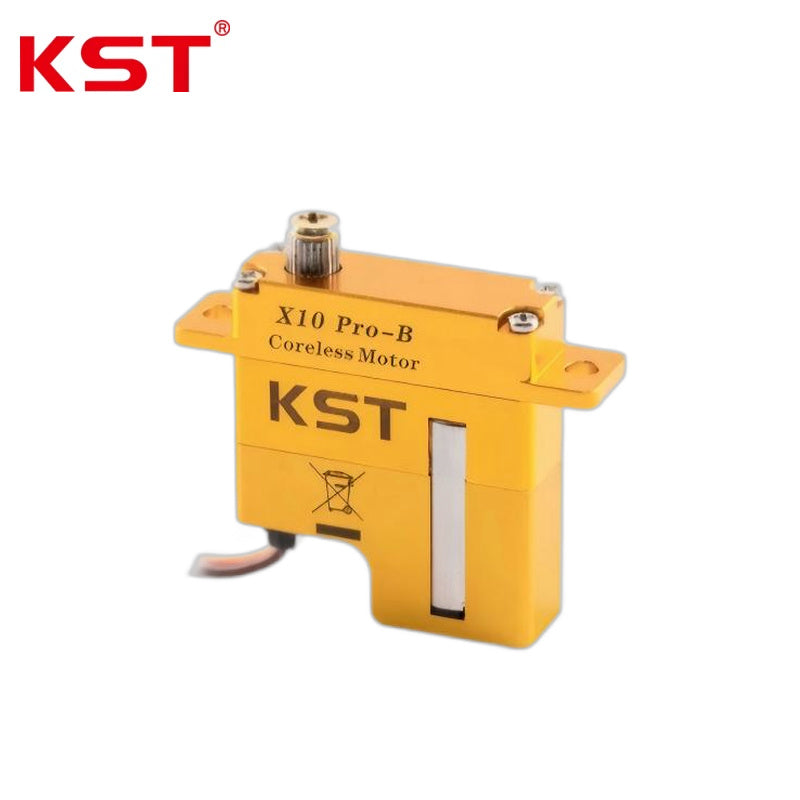

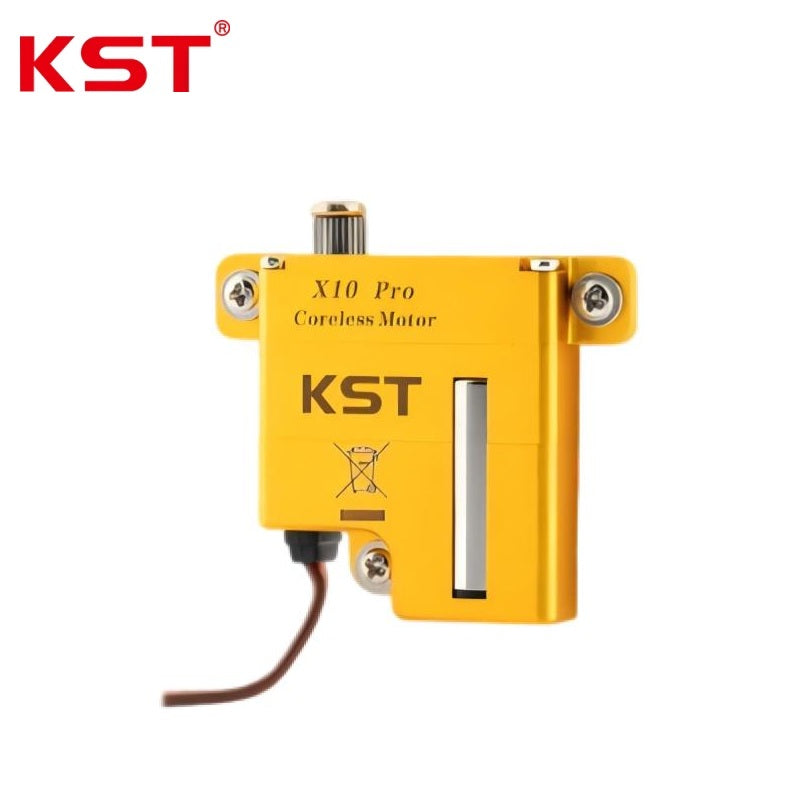

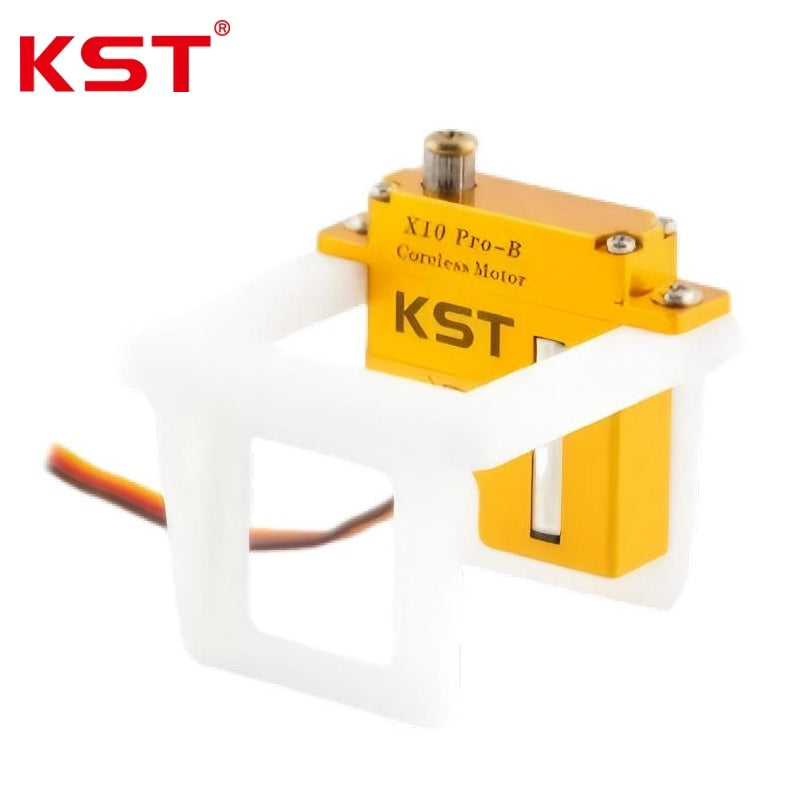

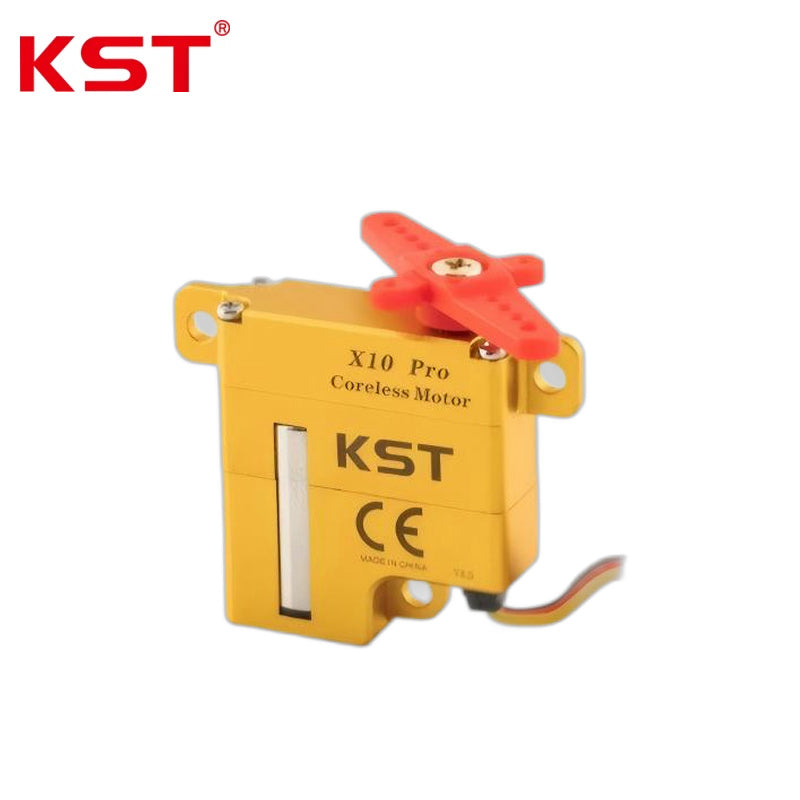

KST X10-Pro Servo Motor

$54.99

Version

X10 Pro-A X10 Pro-B

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	Value
Performance & Electrical Ratings:
Rated Voltage	DC 7.4V
Operating Voltage Range	DC 4.8V - 8.4V
Stall Torque	6.5 kgf.cm @ 4.8V; 8.5 kgf.cm @ 6.0V; 10.5 kgf.cm @ 7.4V; 11.5 kgf.cm @ 8.4V
Operating Speed (60deg Rotation)	0.16s @ 4.8V; 0.14s @ 6.0V; 0.12s @ 7.4V; 0.10s @ 8.4V
Working Frequency	1520 us / 333 Hz
Control Specifications:
Default Travel Angle	+/-60deg (Total 120deg)
Control Signal Voltage Level	High: 3.3-5.0V; Low: 0.0-1.5V
Control Pulse Width Range	900 us - 2100 us
Position Pulse Width Reference	1000 us (-50deg) / 1500 us (0deg) / 2000 us (+50deg)
Soft Start / Programmable Feature	Programmable / Yes
Internal Characteristics:
Motor Type	Coreless DC Motor
Gear Train Material	Hardened Steel
Position Feedback Sensor	Potentiometer
Physical & Environmental:
Housing Material	Aluminum Alloy
Housing Dimensions	30 x 10 x 33.5 mm +/- 0.2 mm
Weight	25 g +/- 10%
Operating Temperature Range	-10 deg C - +65 deg C
