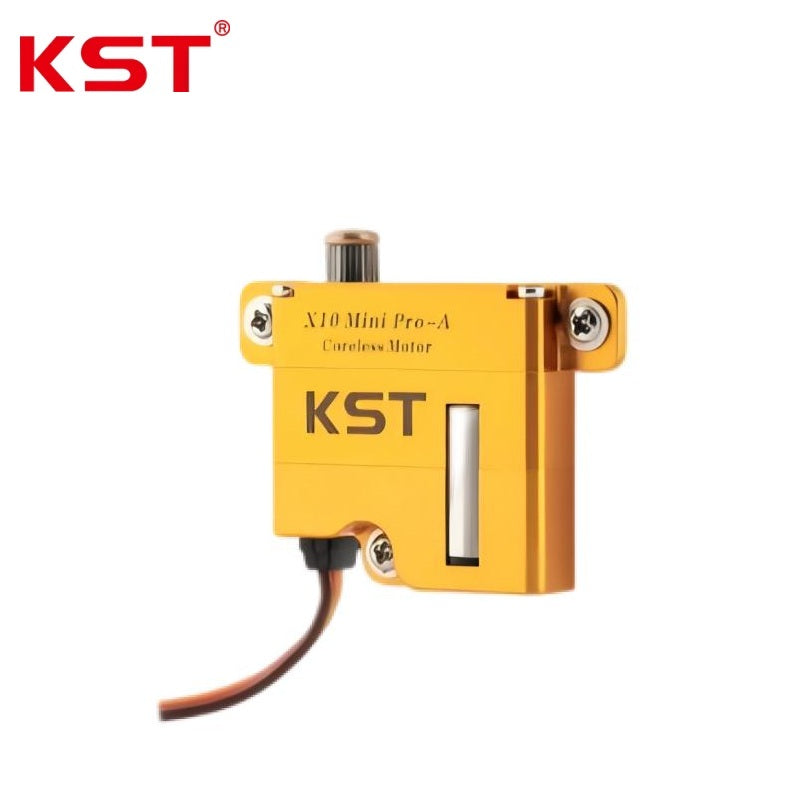

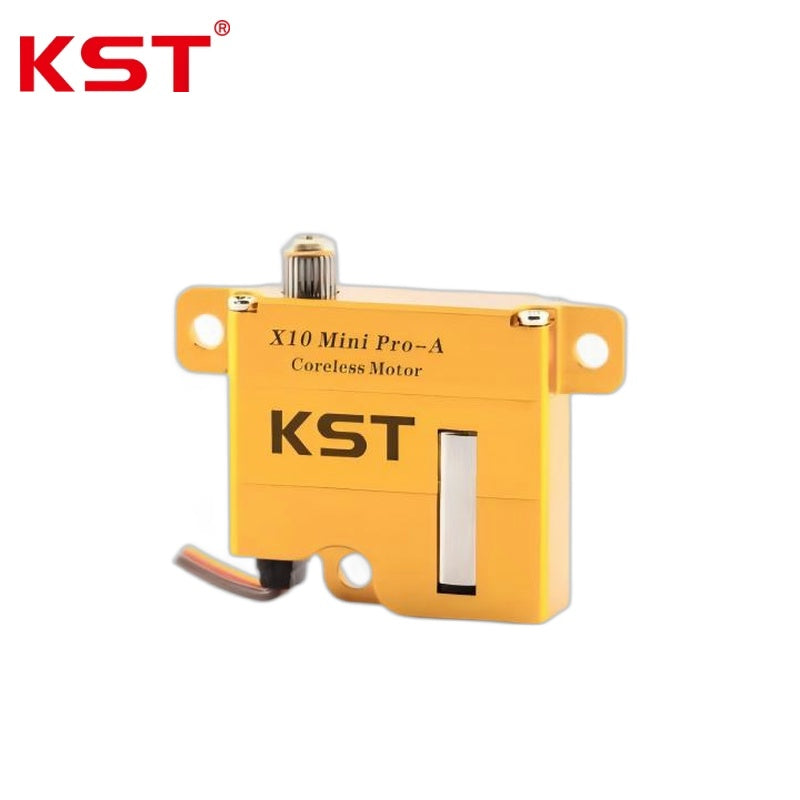

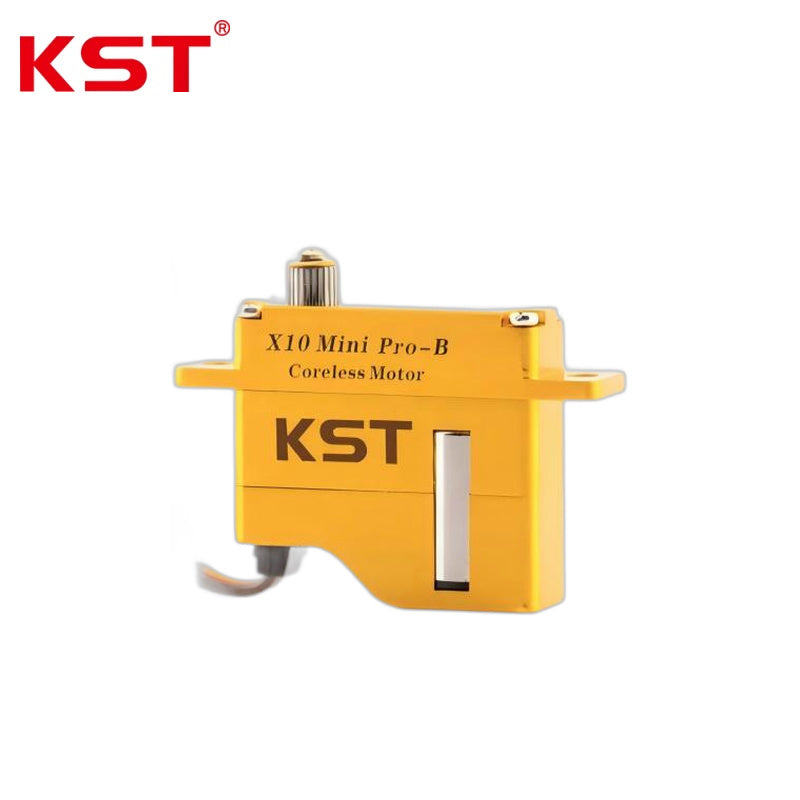

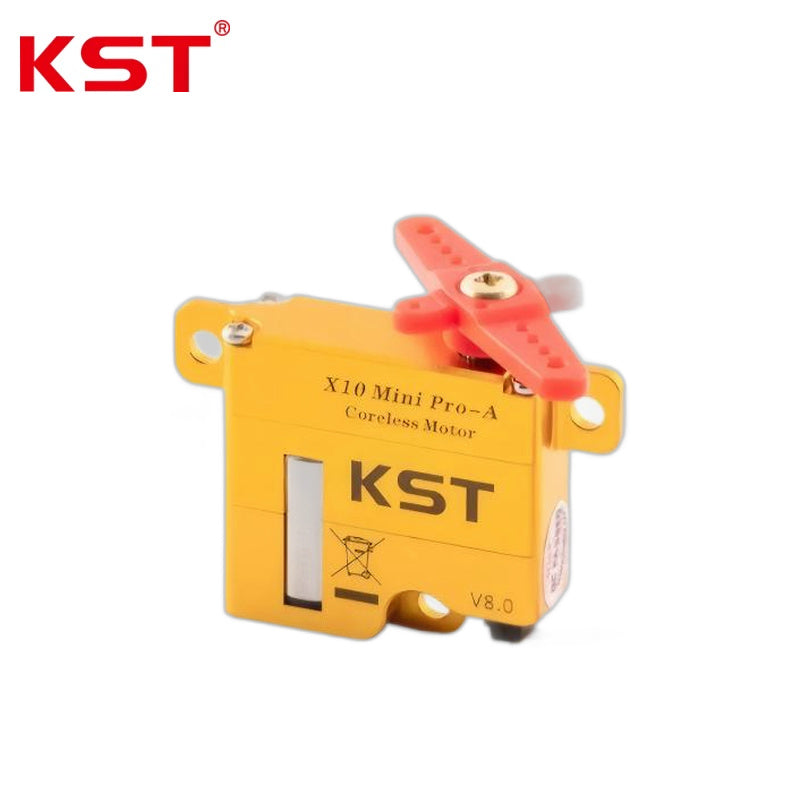

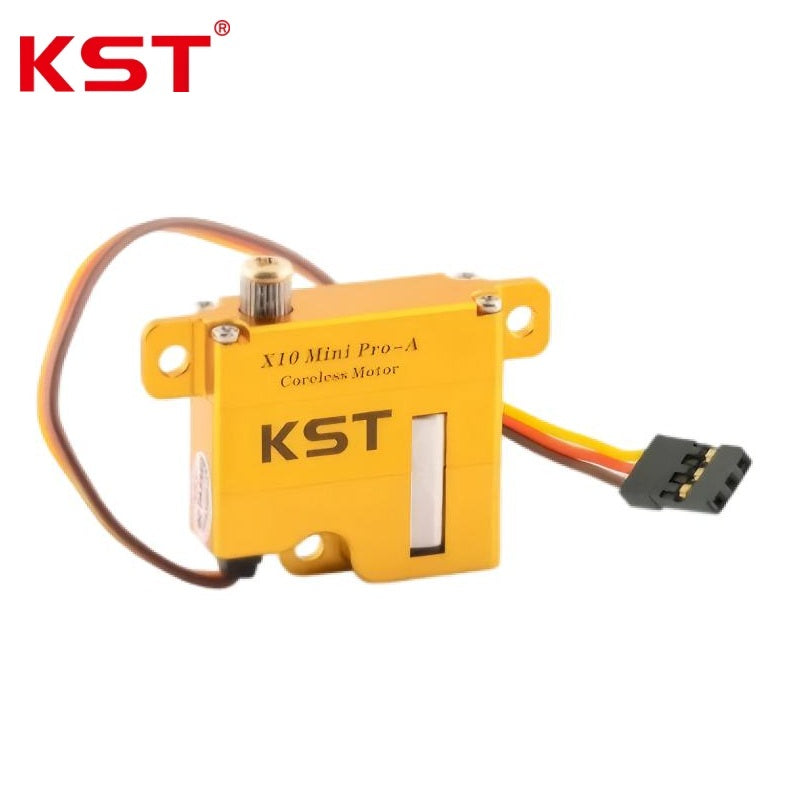

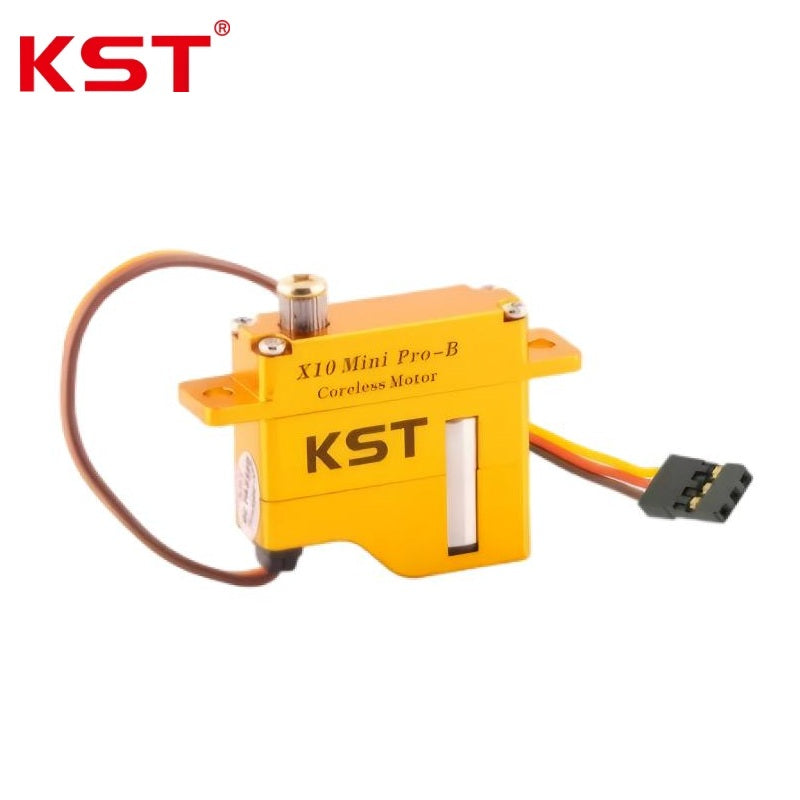

KST X10-Mini-Pro Servo Motor

$49.99

Version

X10-Mini-Pro-A X10-Mini-Pro-B

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	Value
Performance & Electrical Ratings:
Rated Voltage	DC 7.4 V
Operating Voltage Range	DC 4.8 V - 8.4 V
Torque (at different voltages)	4.5/6.0/7.2/8.0 kgf.cm @ 4.8/6.0/7.4/8.4 V
Speed (60deg Rotation Time)	0.13/0.11/0.09/0.08 sec/60deg @ 4.8/6.0/7.4/8.4 V
Working PWM Signal	1520 us / 333 Hz
Control Specifications:
Default Rotation Angle	+/-60deg (Total 120deg)
Control Signal Voltage Level	High: 3.3-5.0 V; Low: 0.0-1.5 V
Control Pulse Width Range	900 us - 2100 us
Position Command Pulse Width (-50 / 0 / +50 deg)	1000 us / 1500 us / 2000 us
Soft Start / Programmable Support	Programmable / Yes
Internal Characteristics:
Motor Type	Coreless DC Motor
Gear Material	Hardened Steel
Position Sensor	Potentiometer
Physical & Environmental:
Housing Material	Aluminum Alloy
Dimensions (L x W x H)	30 x 10 x 28 mm +/- 0.2 mm
Weight	20 g +/- 10%
Operating Temperature Range	-10 deg C - +65 deg C
