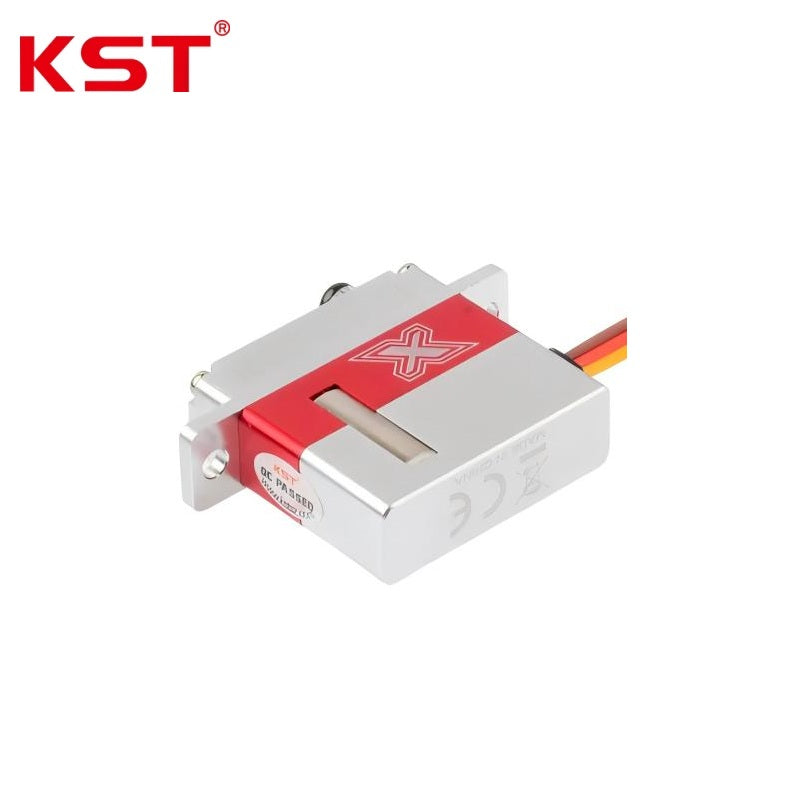

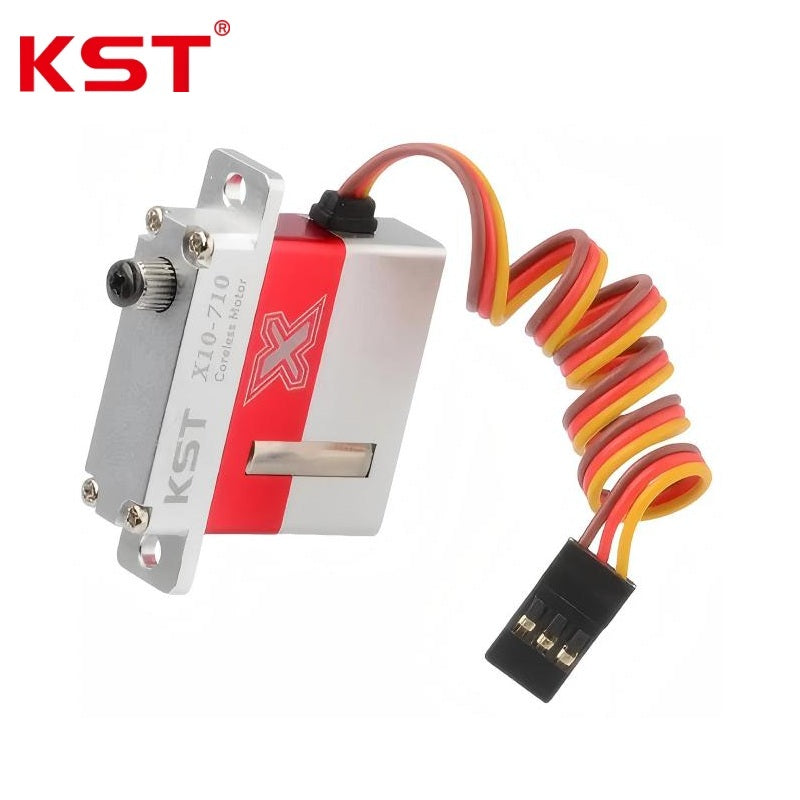

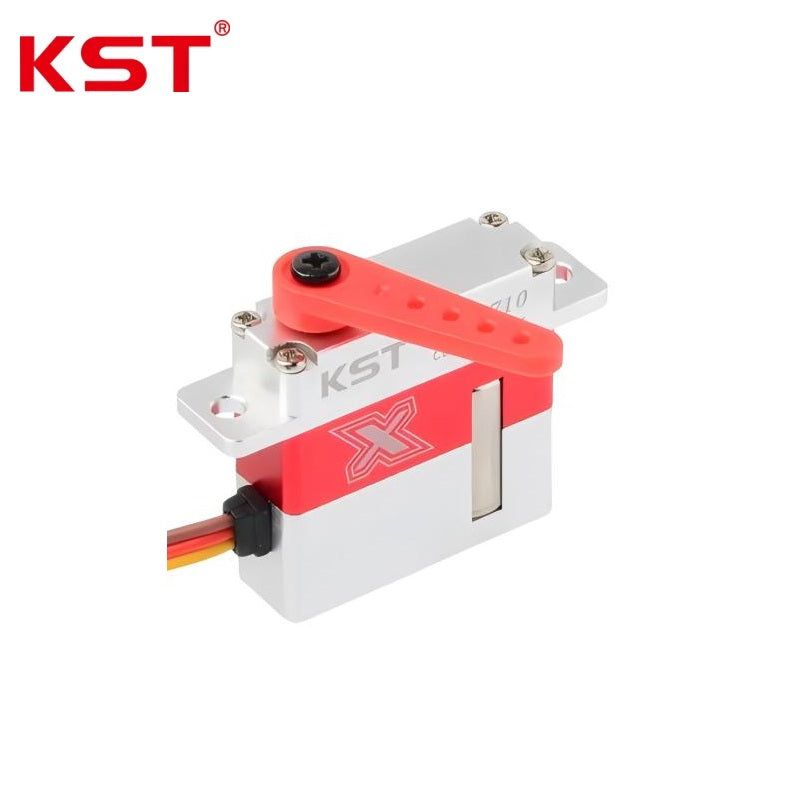

KST X10-710 Servo Motor
Regular price
$44.99
Unit price
KST X10-710 Servo Motor - X10-710 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
KST X10-710 Servo Motor
Regular price
$44.99
Unit price
KST X10-710 Servo Motor - X10-710 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Performance & Electrical Ratings: | |
| Rated Voltage | DC 7.4V |
| Operating Voltage Range | DC 4.8V - 8.4V |
| Torque | 4.5 kgf.cm @ 4.8V; 5.5 kgf.cm @ 6.0V; 6.8 kgf.cm @ 7.4V; 7.5 kgf.cm @ 8.4V |
| Speed (60deg Rotation) | 0.16 sec @ 4.8V; 0.14 sec @ 6.0V; 0.12 sec @ 7.4V; 0.10 sec @ 8.4V |
| Working Frequency | 1520 us / 333 kHz |
| Control Specifications: | |
| Default Travel Angle | +/-50 deg (Total 100 deg) |
| Signal Input Voltage | HIGH: 3.3V (min.) ~ 5.0V (max.); LOW: 0.0V (min.) ~ 1.5V (max.) |
| Control Pulse Width Range | 900 us - 2100 us |
| Control Pulse Width for Specified Angles (-50 / 0 / +50 deg) | 1000 us / 1500 us / 2000 us |
| Soft Start Function / Programmable Feature | Programmable / Yes |
| Internal Characteristics: | |
| Motor Type | Coreless DC Motor |
| Gear Set Material | Hardened Steel |
| Position Feedback Element | Potentiometer |
| Physical & Environmental: | |
| Housing Material | Aluminum Alloy |
| Dimensions | 30 mm x 10 mm x 29.6 mm +/- 0.2 mm |
| Weight | 23 g +/- 10% |
| Operating Temperature Range | -10 deg C ~ +65 deg C |
