KST | SKU:

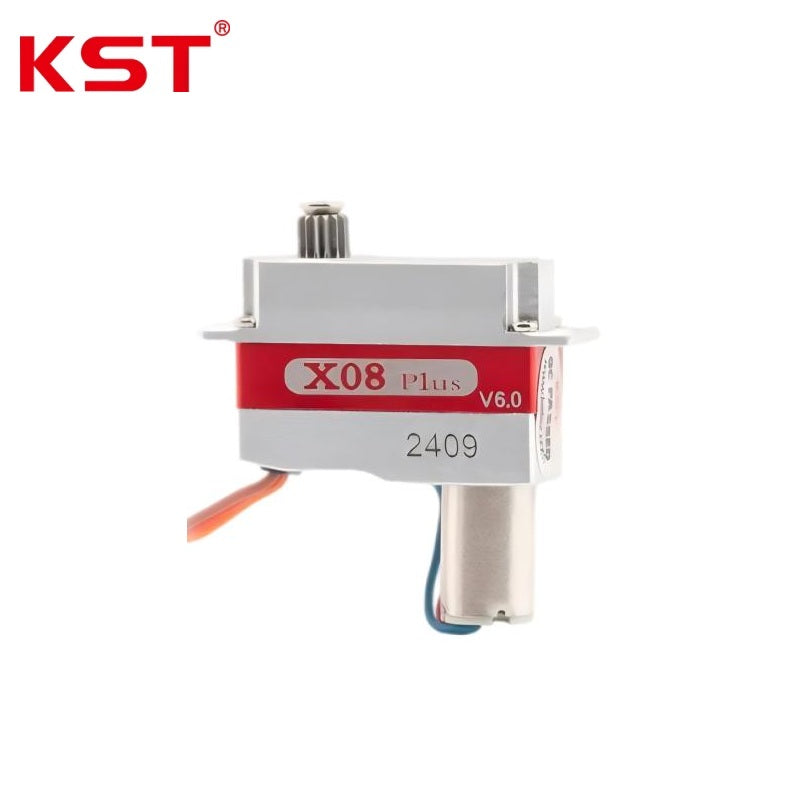

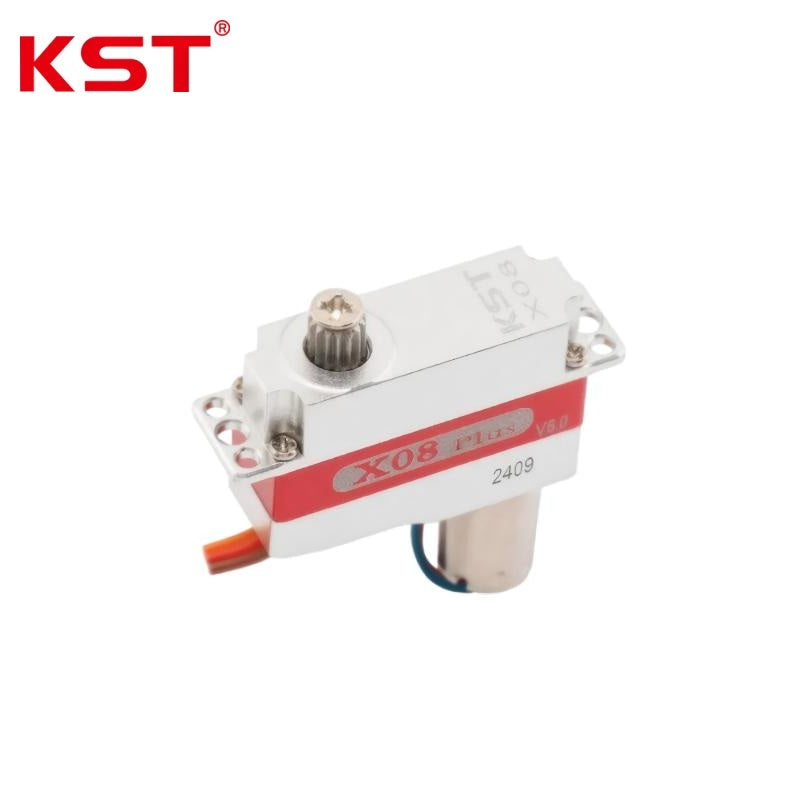

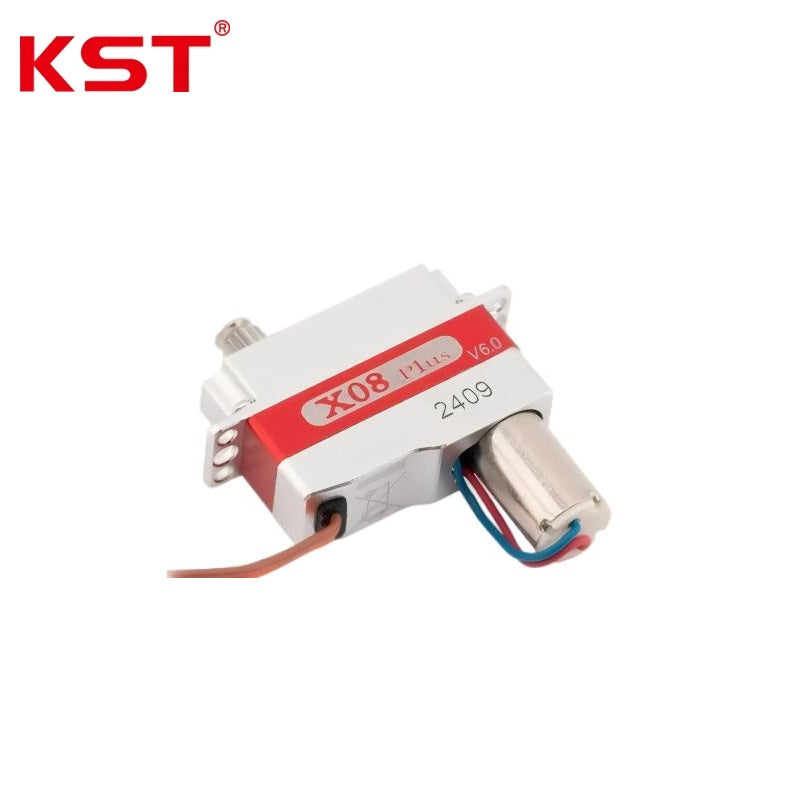

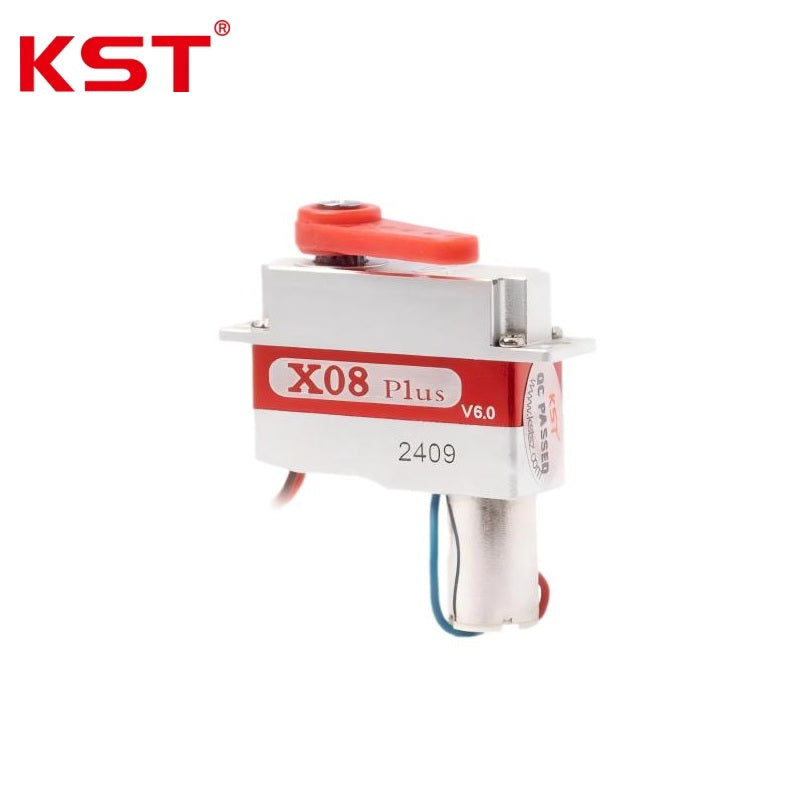

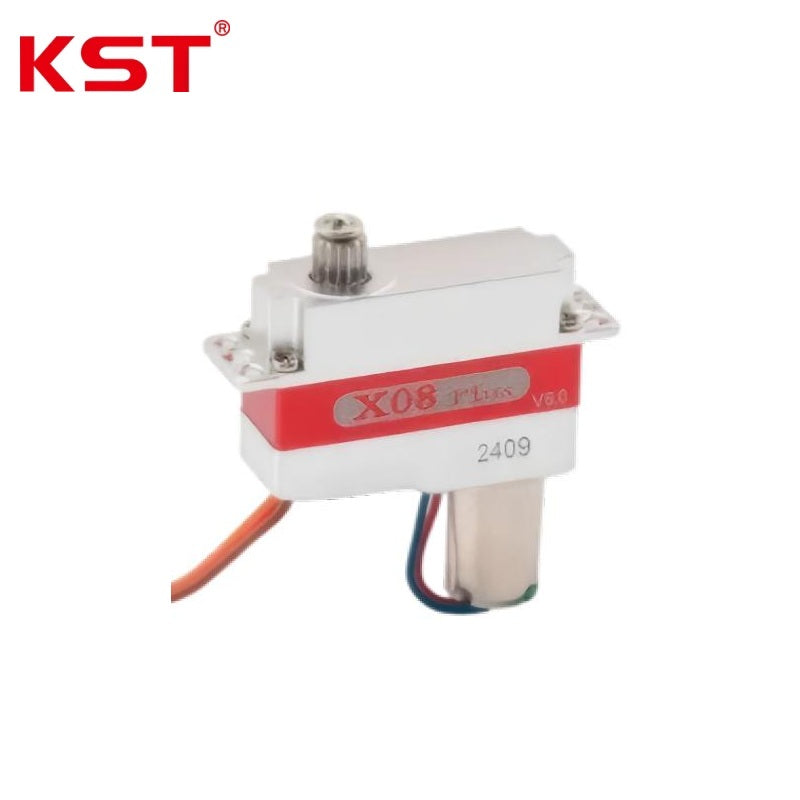

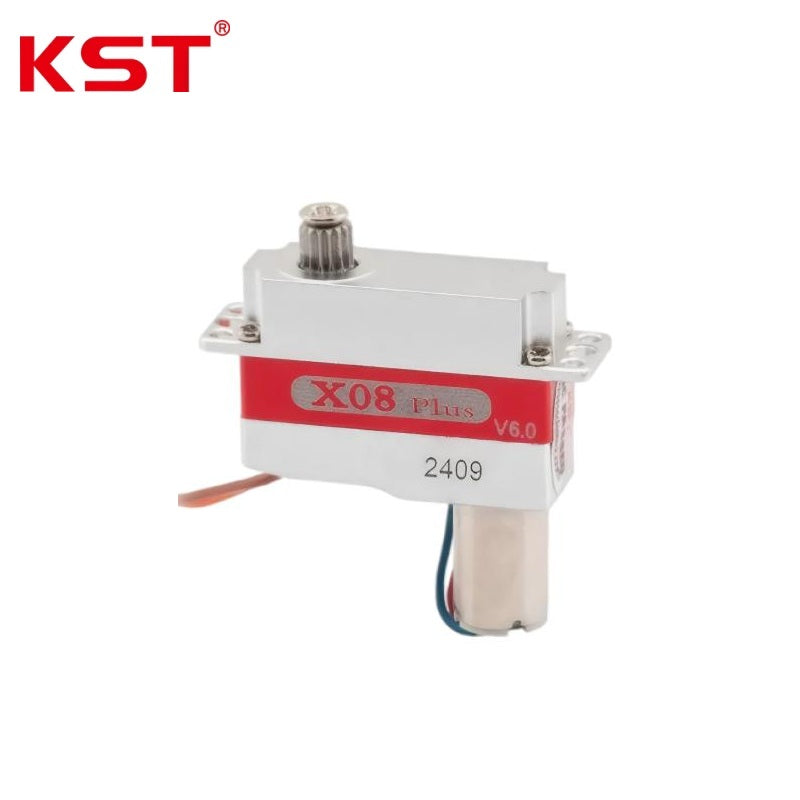

KST X08-Plus Servo Motor
Regular price
$39.99
Unit price
KST X08-Plus Servo Motor - X08-Plus is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
KST X08-Plus Servo Motor
Regular price
$39.99
Unit price
KST X08-Plus Servo Motor - X08-Plus is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Performance & Electrical Ratings: | |
| Rated Voltage | DC 7.4V |
| Operating Voltage Range | DC 3.8V - 8.4V |
| Stall Torque | 2.4 kgf.cm @ 3.8V; 3.85 kgf.cm @ 6.0V; 4.85 kgf.cm @ 7.4V; 5.3 kgf.cm @ 8.4V |
| Operating Speed (60deg Rotation) | 0.18s @ 3.8V; 0.15s @ 6.0V; 0.12s @ 7.4V; 0.09s @ 8.4V |
| Working Frequency | 1520 us / 333 Hz |
| Control Specifications: | |
| Default Travel Angle | +/- 60 deg (120 deg Total) |
| Internal Characteristics: | |
| Motor Type | Coreless DC Motor |
| Gear Set Material | Hardened Steel |
| Position Sensor | Potentiometer |
| Physical & Environmental: | |
| Case Material | Aluminum Alloy |
| Case Dimensions | 23.5 mm x 8.0 mm x 16.8 mm +/- 0.2 mm |
| Weight | 9 g +/- 10% |
| Operating Temperature Range | -10 to +65 deg C |
