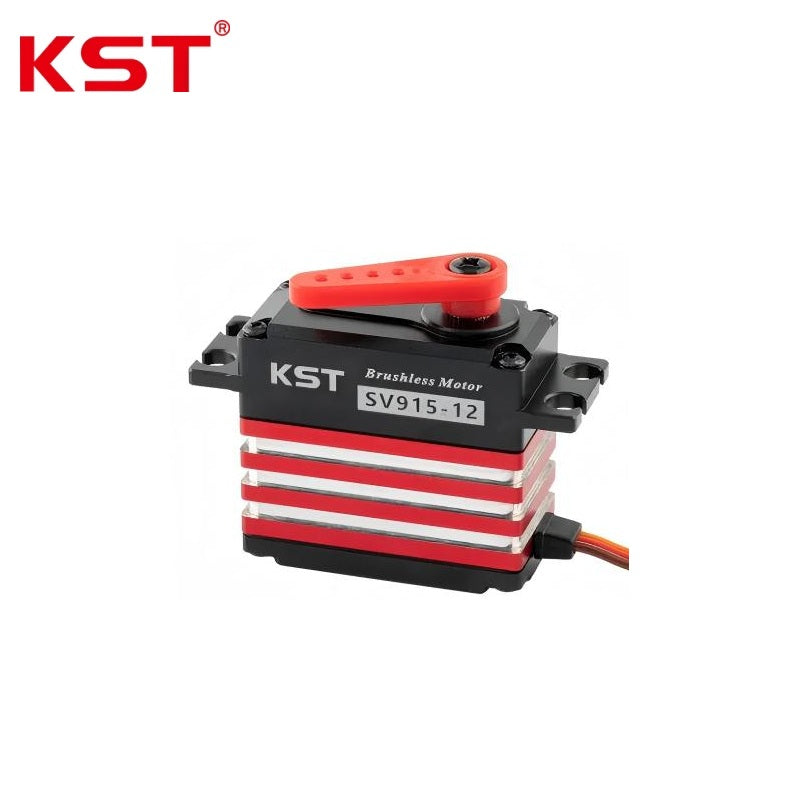

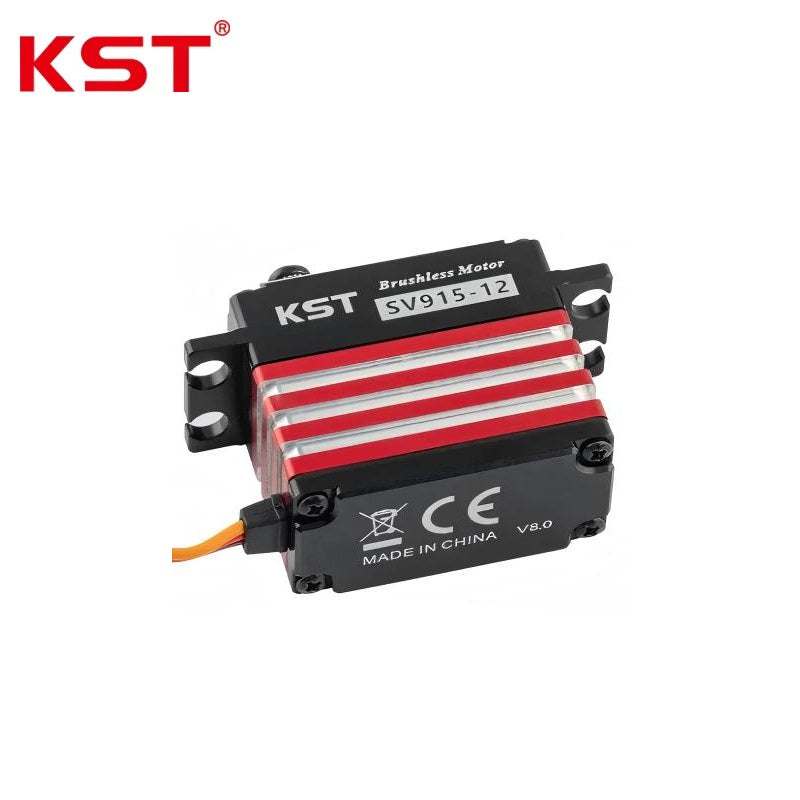

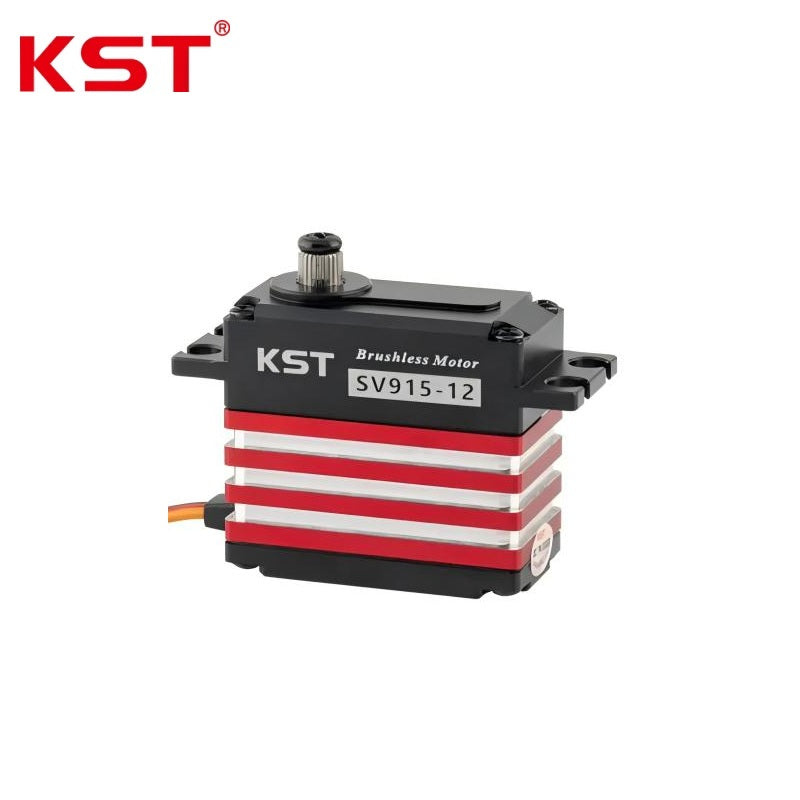

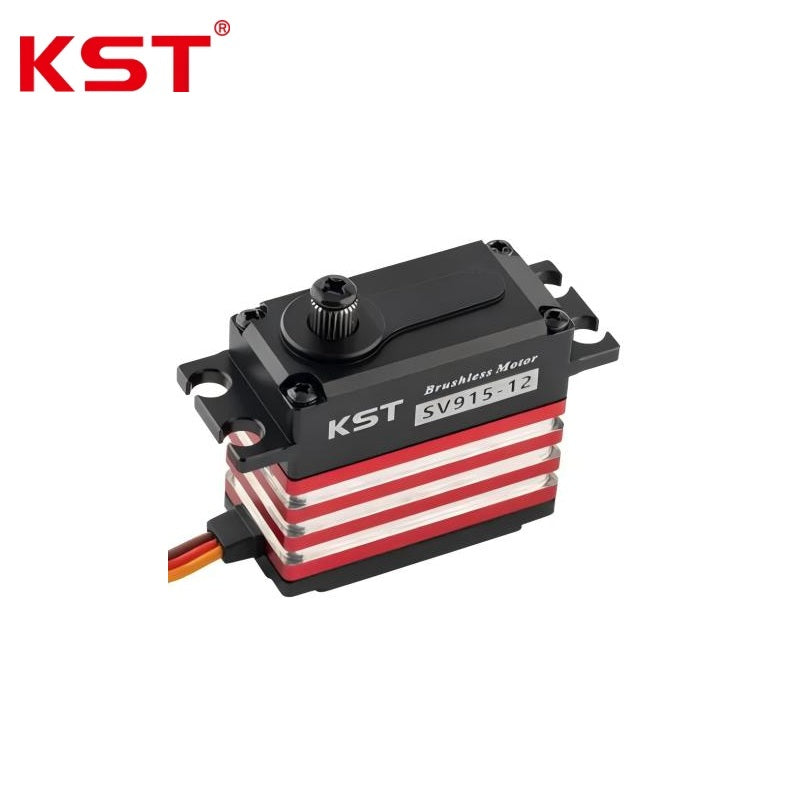

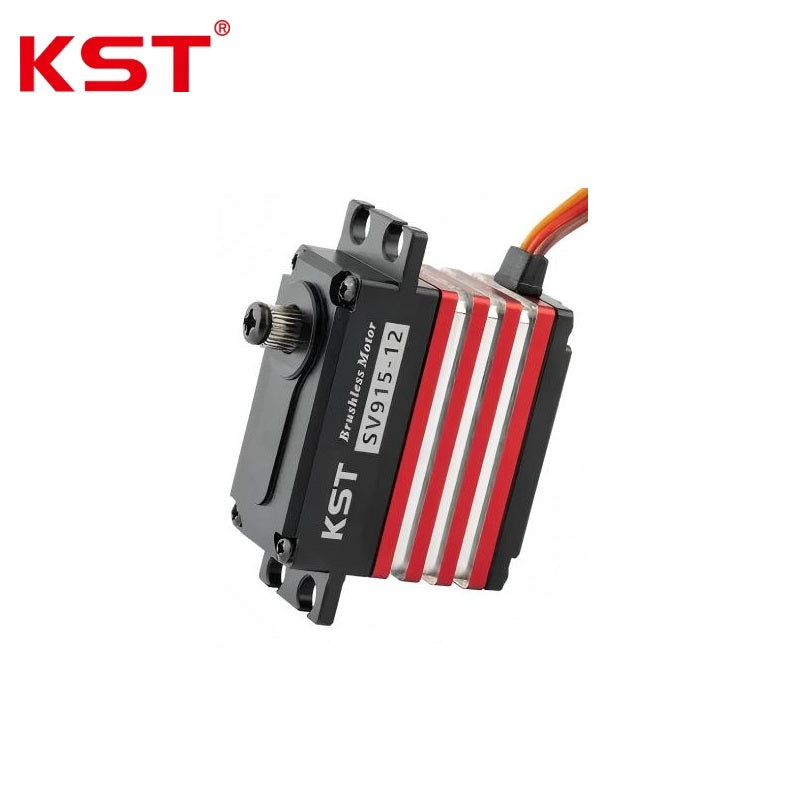

KST SV915-12 Servo Motor

$89.99
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Performance & Electrical Ratings:
Rated Voltage DC12V
Operating Voltage Range DC8.0V~13.0V
Output Torque 24Kgf.cm@8.4V; 28Kgf.cm@12V; 30Kgf.cm@13V
Rotational Speed 0.10sec/60deg@8.4V; 0.08sec/60deg@12V; 0.07sec/60deg@13V
Control Specifications:
Operating Frequency 760us/560Hz
TTL Signal Voltage Level HIGH: min.3.3V, max.5.0V; LOW: min.0.0V, max.1.5V
Control Pulse Width Range 450us~1050us
Internal Characteristics:
Motor Type Brushless DC Motor (BLDC Motor)
Gear Train Material Hardened Steel
Position Sensing Component Potentiometer
Ball Bearing Configuration 2 BB (2pcs Ball Bearings)
Physical & Environmental:
Operating Temperature Range -20deg C ~ +65deg C
Housing Material Aluminum Alloy
Housing Overall Dimension 40.5x20x38 mm+/-0.2mm
Unit Weight 70g+/-10%
