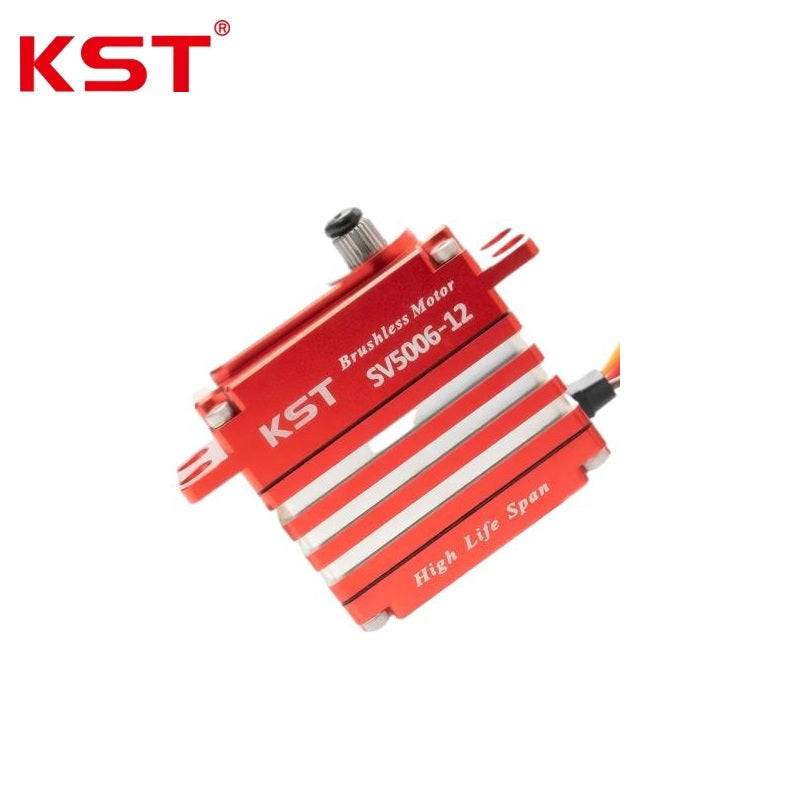

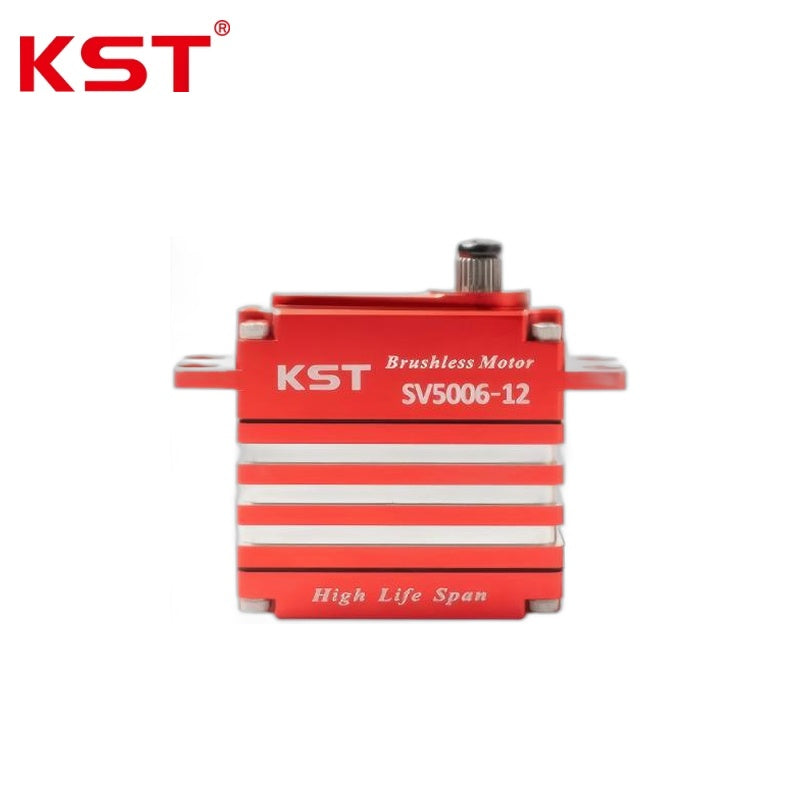

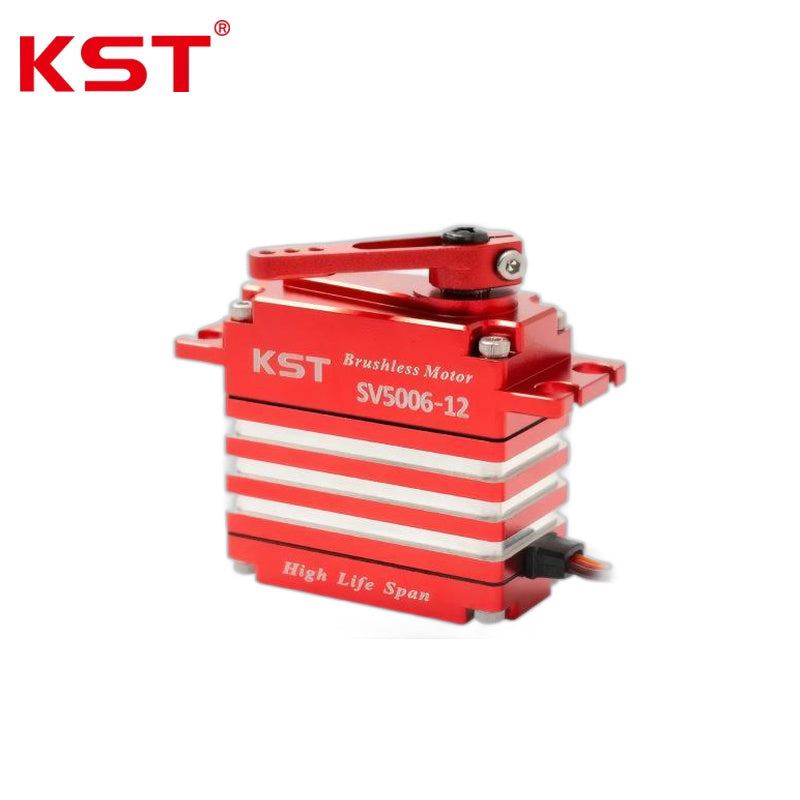

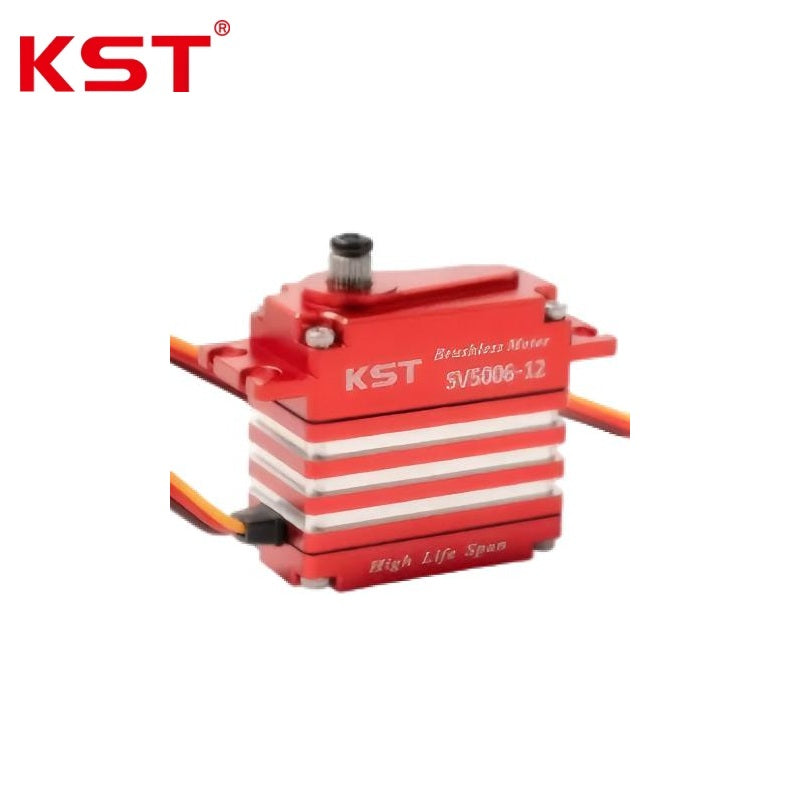

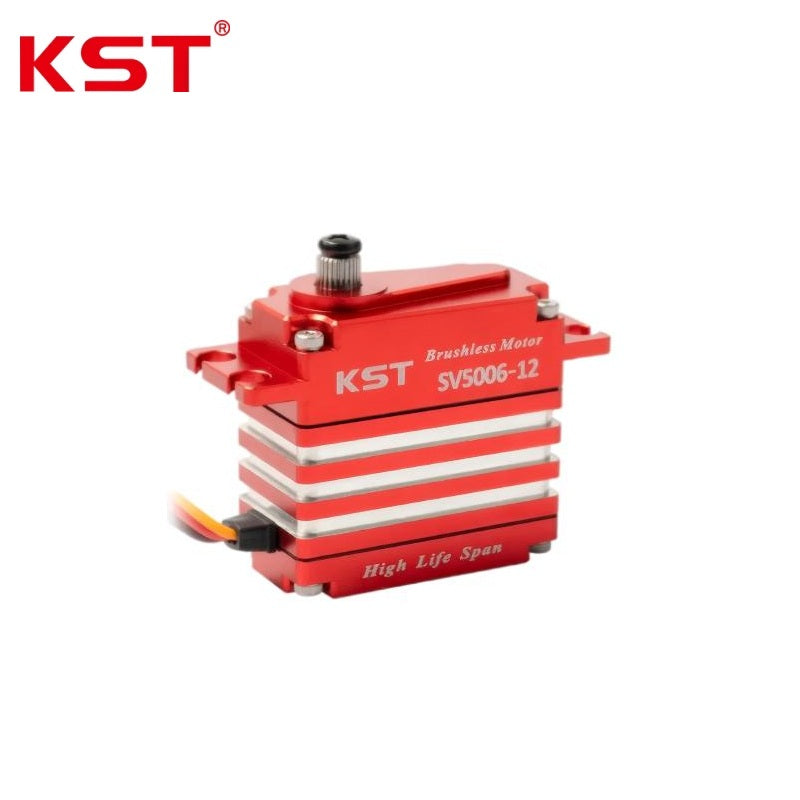

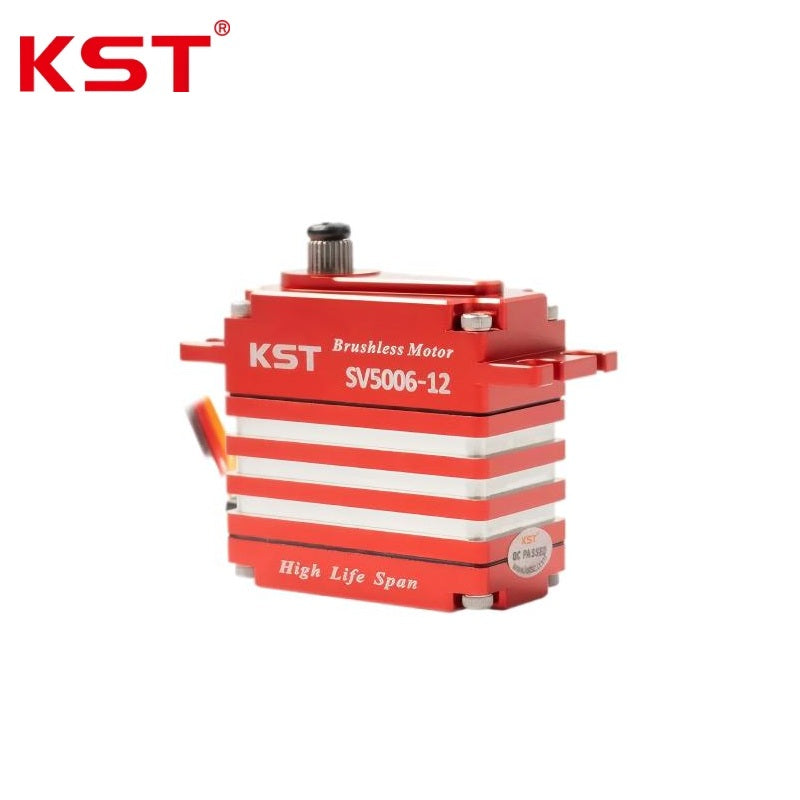

KST SV5006-12 Servo Motor

$179.99

Version

SV5006-12

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	Value
Performance & Electrical Ratings:
Rated Voltage	DC 12.0 V
Operating Voltage Range	DC 8.40 V - 13.0 V
Stalling Torque	40 kgf.cm @ 8.4V; 50 kgf.cm @ 12.0V; 55 kgf.cm @ 13.0V
No-load Speed (60deg Rotation)	0.100s @ 8.4V; 0.068s @ 12.0V; 0.063s @ 13.0V
Working Frequency	1520 us / 333 Hz
Control Specifications:
Default Travel Angle	+/-100deg (200deg total)
Control Signal Voltage	HIGH: min. 3.3 V, max. 5.0 V; LOW: min. 0.0 V, max. 1.5 V
Control Pulse Width Range	500 us - 2500 us
Position vs. Pulse Mapping	500 us -> -100deg; 1500 us -> 0deg; 2500 us -> +100deg
Soft Start Function / Programmability	Programmable / Yes
Internal Characteristics:
Motor Type	4-Pole Brushless DC Motor
Gear Set Material	Hardened Steel
Position Sensor Type	Potentiometer
Ball Bearing Configuration	6BB (6 Ball Bearings)
Physical & Environmental:
Housing Material	Aluminum Alloy
Housing Dimensions	40 x 20 x 40 mm +/- 0.2 mm
Weight	75 g +/- 10%
Operating Temperature Range	-10 deg C - +65 deg C
