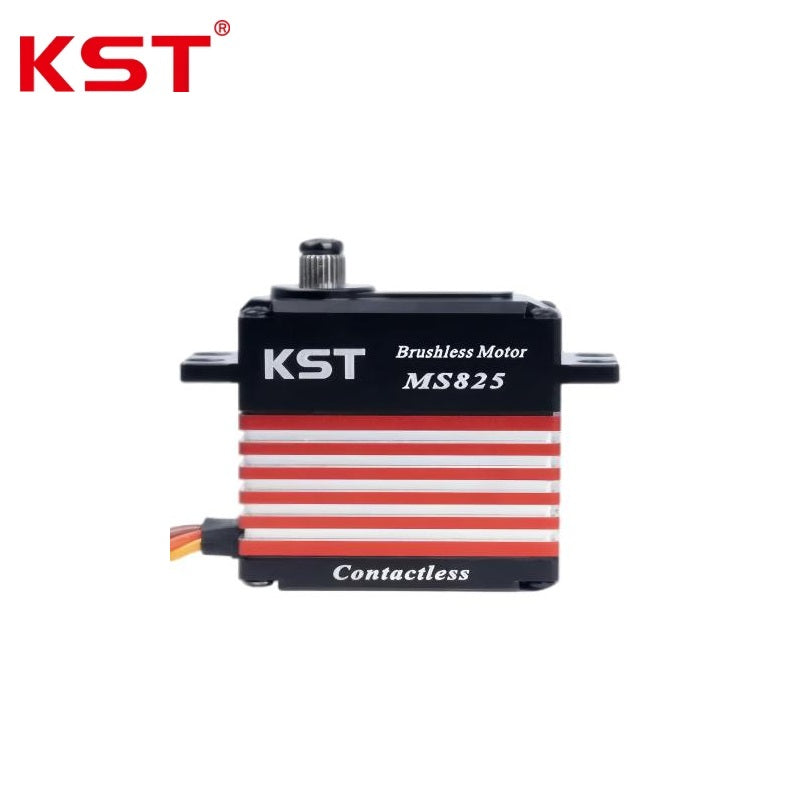

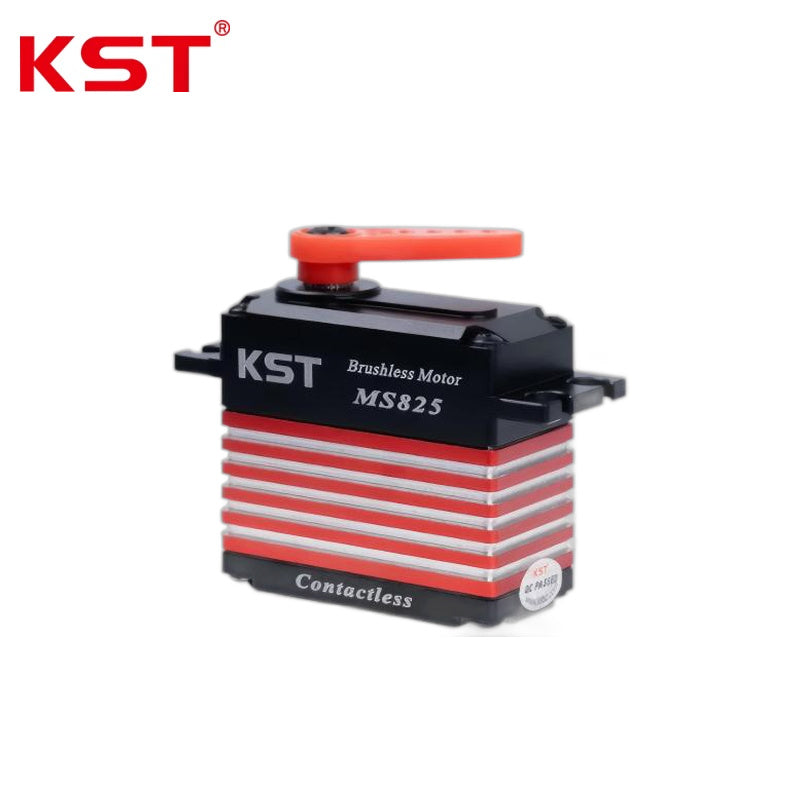

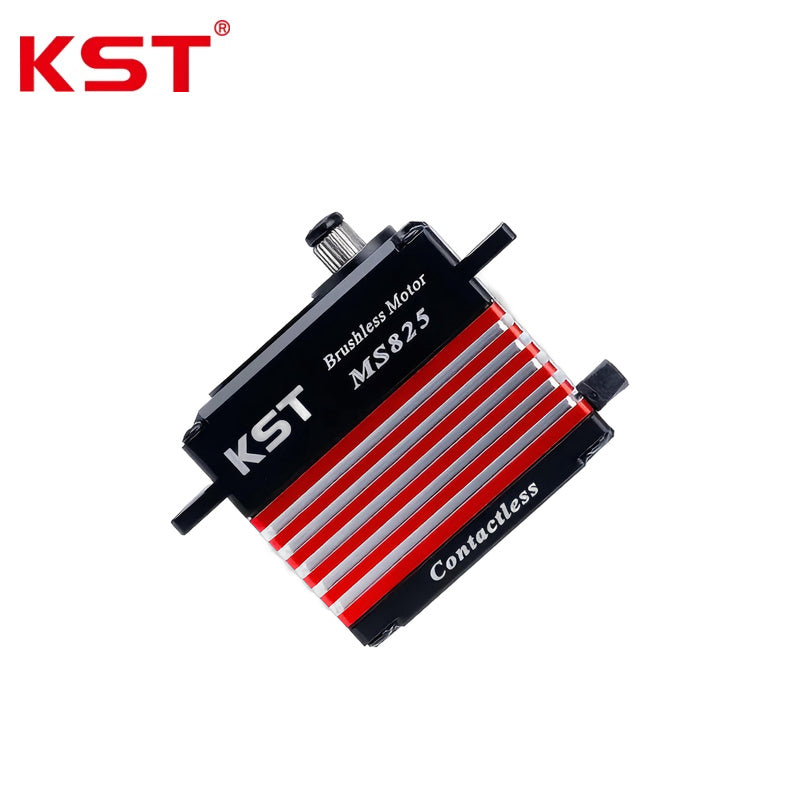

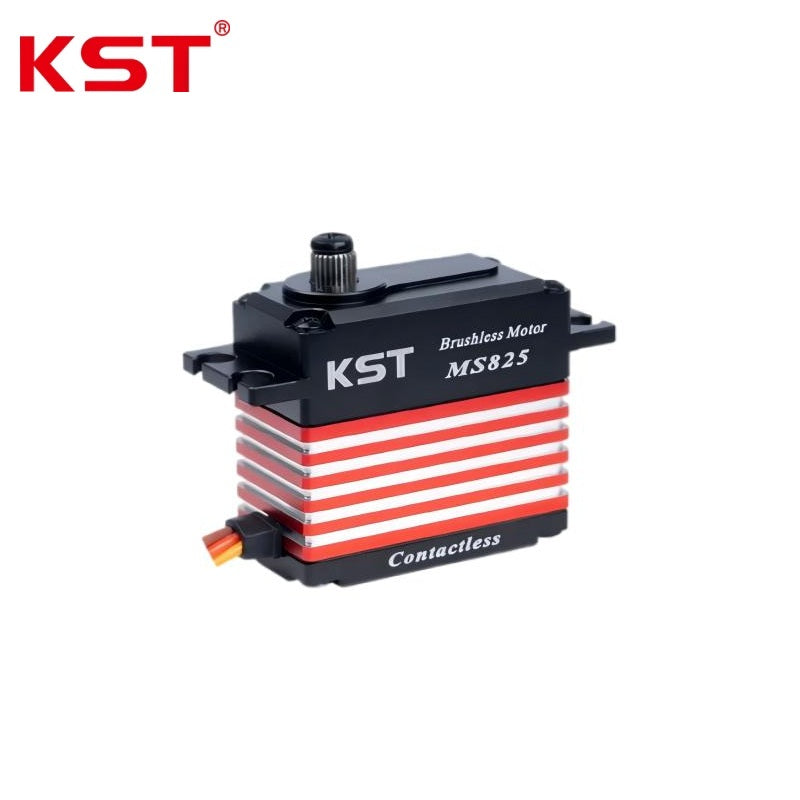

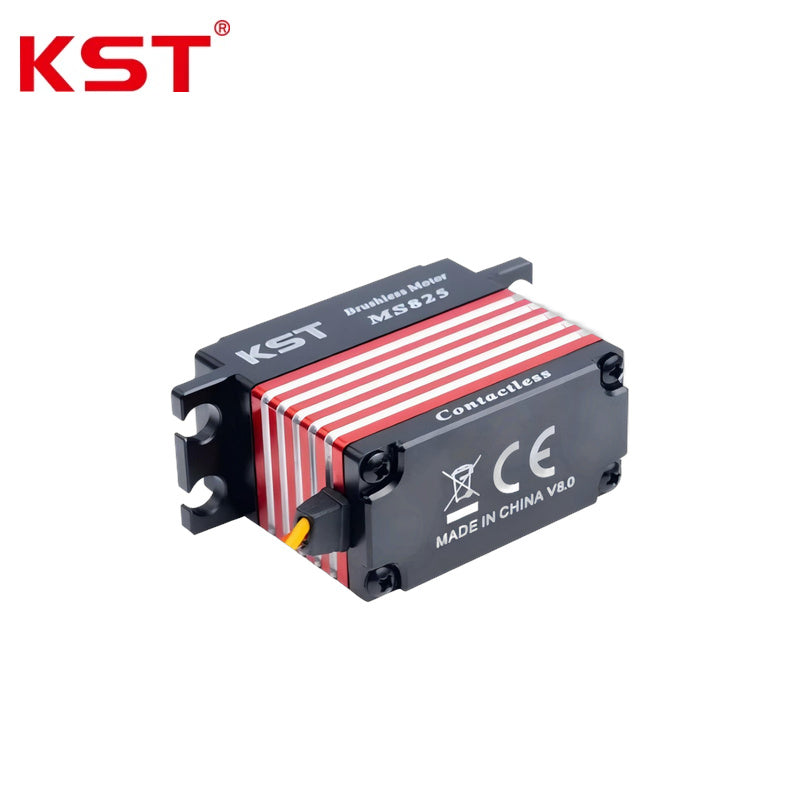

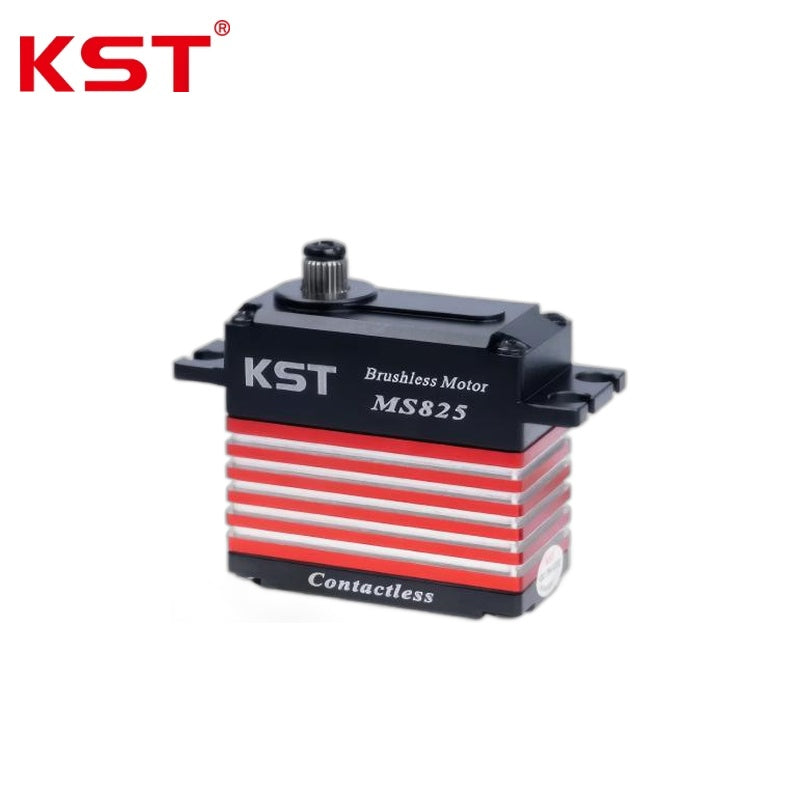

KST MS825 Servo Motor

$94.99

Version

MS825

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	Value
Performance & Electrical Ratings:
Rated Voltage	DC 7.4 V
Operating Voltage Range	DC 6.0 V - 8.4 V
Stalling Torque	25 kgf.cm @ 6.0 V; 30 kgf.cm @ 7.4 V; 35 kgf.cm @ 8.4 V
No-load Speed (60deg Rotation)	0.15 sec @ 6.0 V; 0.13 sec @ 7.4 V; 0.11 sec @ 8.4 V
Working Frequency	1520 us / 333 Hz
Control Specifications:
Default Travel Angle	+/-100deg (Total: 200deg)
Signal Voltage Level	HIGH: min. 3.3 V, max. 5.0 V; LOW: min. 0.0 V, max. 1.5 V
Control Pulse Width Range	500 us - 2500 us
Position Calibration Pulse	500 us (-100deg) / 1500 us (0deg) / 2500 us (+100deg)
Soft Start / Programmable Support	Programmable / Yes
Internal Characteristics:
Motor Type	Brushless DC Motor
Gear Set Material	Hardened Steel
Position Sensor	Contactless
Physical & Environmental:
Housing (Case) Material	Aluminum Alloy
Case Dimensions	40.5 mm x 20 mm x 38 mm +/- 0.2 mm
Weight	70 g +/- 10%
Operating Temperature Range	-20 deg C - +65 deg C
