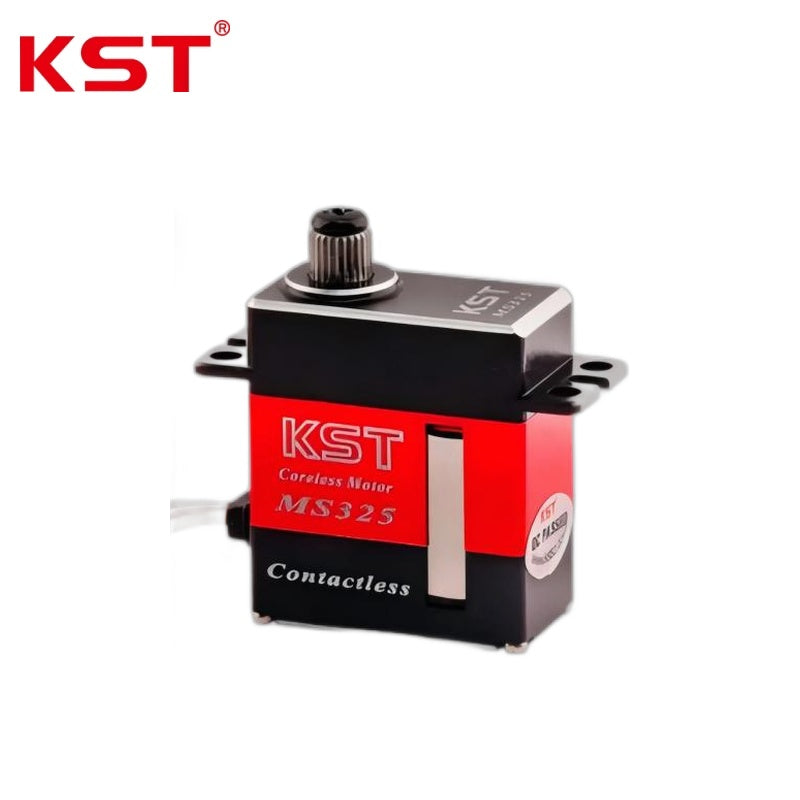

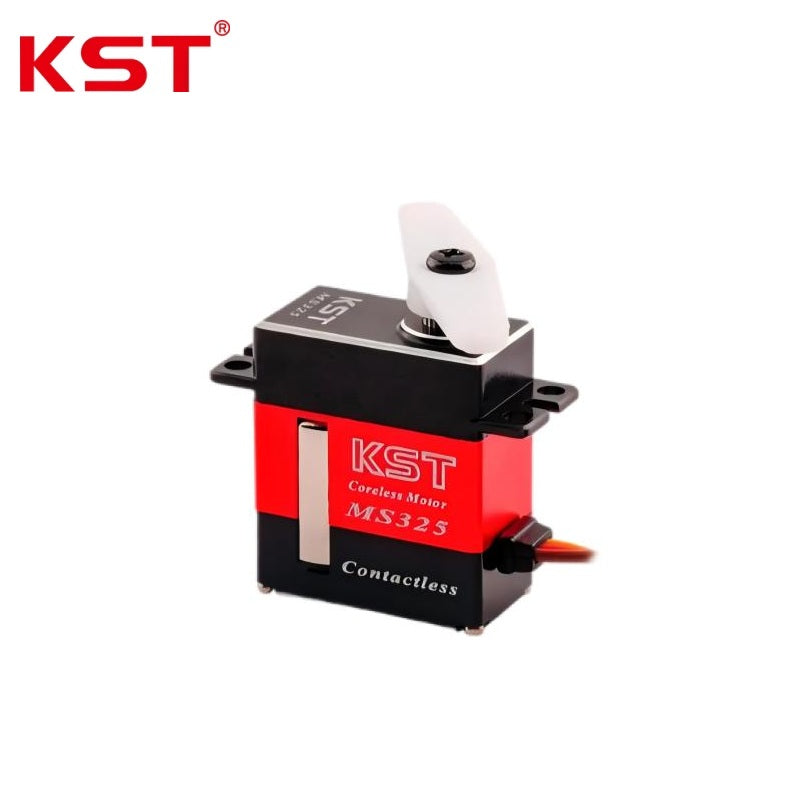

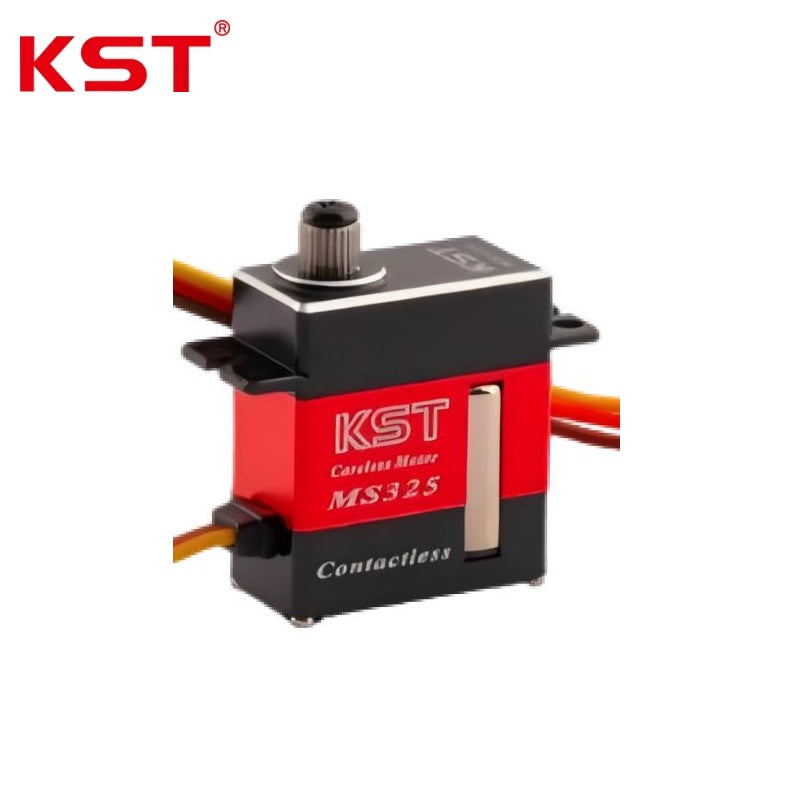

KST MS325 Servo Motor
Regular price
$49.99
Unit price
KST MS325 Servo Motor - MS325 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
KST MS325 Servo Motor
Regular price
$49.99
Unit price
KST MS325 Servo Motor - MS325 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Performance & Electrical Ratings: | |
| Rated Voltage | DC 6.0V |
| Operating Voltage Range | DC 6.0V - 8.4V |
| Stalling Torque | 3.8 kgf.cm @ 6.0V; 4.6 kgf.cm @ 7.4V; 5.2 kgf.cm @ 8.4V |
| No-Load Speed | 0.09 sec/60deg @ 6.0V; 0.08 sec/60deg @ 7.4V; 0.07 sec/60deg @ 8.4V |
| Working Frequency | 1520 us / 20 kHz |
| Control Specifications: | |
| Default Travel Angle | +/-100deg (200deg total) |
| Control Signal Voltage Level | HIGH: 3.3V (min.) - 5.0V (max.); LOW: 0.0V (min.) - 1.5V (max.) |
| Control Pulse Width Range | 500 us - 2500 us |
| Position-Pulse Correspondence | 500 us -> -100deg; 1500 us -> 0deg; 2500 us -> +100deg |
| Soft Start / Programmable Feature | Programmable / Yes |
| Internal Characteristics: | |
| Motor Type | Coreless DC Motor |
| Gear Set Material | Hardened Steel |
| Position Sensor Type | Contactless |
| Physical & Environmental: | |
| Housing Material | Aluminum Alloy |
| Housing Dimensions | 23mm x 12mm x 27.5mm +/- 0.2mm |
| Weight | 20g +/- 10% |
| Operating Temperature Range | -20 deg C - +65 deg C |
