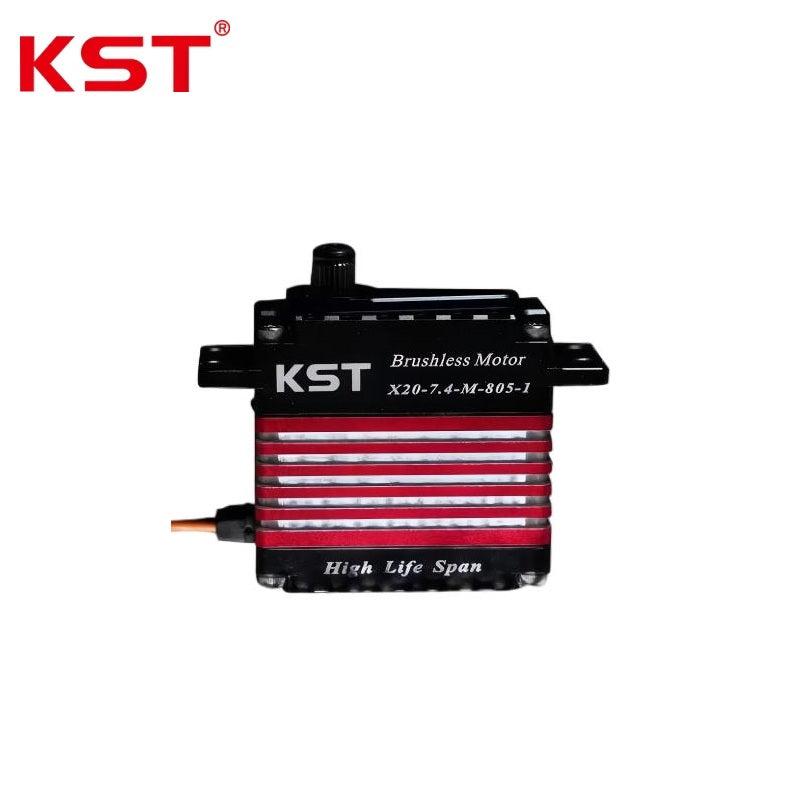

KST HLS-X20-7.4-M-805 Servo Motor

$199.99
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information

Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Performance & Electrical Ratings:
Rated Voltage DC 7.4 V
Operating Voltage Range DC 6.0 V - 8.4 V
Output Torque 9.0 kgf.cm @ 6.0 V; 11.0 kgf.cm @ 7.4 V; 12.0 kgf.cm @ 8.4 V
Rotational Speed (60deg Rotation) 0.040 sec @ 6.0 V; 0.035 sec @ 7.4 V; 0.030 sec @ 8.4 V
Control Signal Working Frequency 760 us / 560 Hz
Control Specifications:
Control Signal Voltage Levels HIGH: Min. 3.3 V, Max. 5.0 V; LOW: Min. 0.0 V, Max. 1.5 V
Servo Control Pulse Width Range 450 us - 1050 us
Internal Characteristics:
Motor Type Brushless DC Motor (BLDC)
Gear Set Material Hardened Steel
Position Sensor Type Contactless
Ball Bearings Quantity 6 BB (6 Ball Bearings)
Physical & Environmental:
Housing Material Aluminum Alloy
Overall Housing Dimensions 40 mm x 20 mm x 40 mm +/- 0.2 mm
Weight 75 g +/- 10%
Operating Temperature Range -10 deg C - +65 deg C



```
