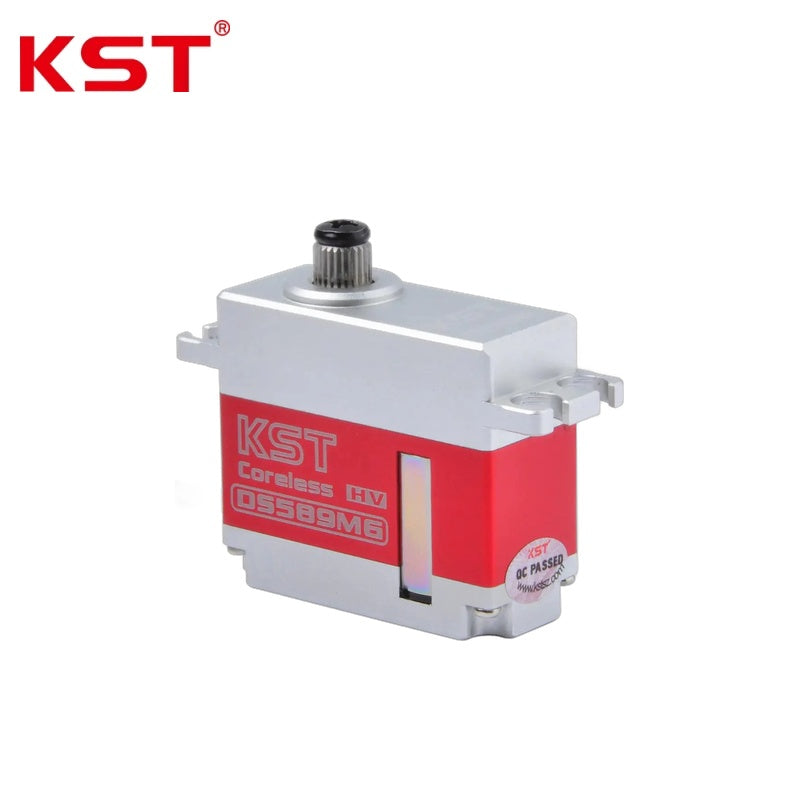

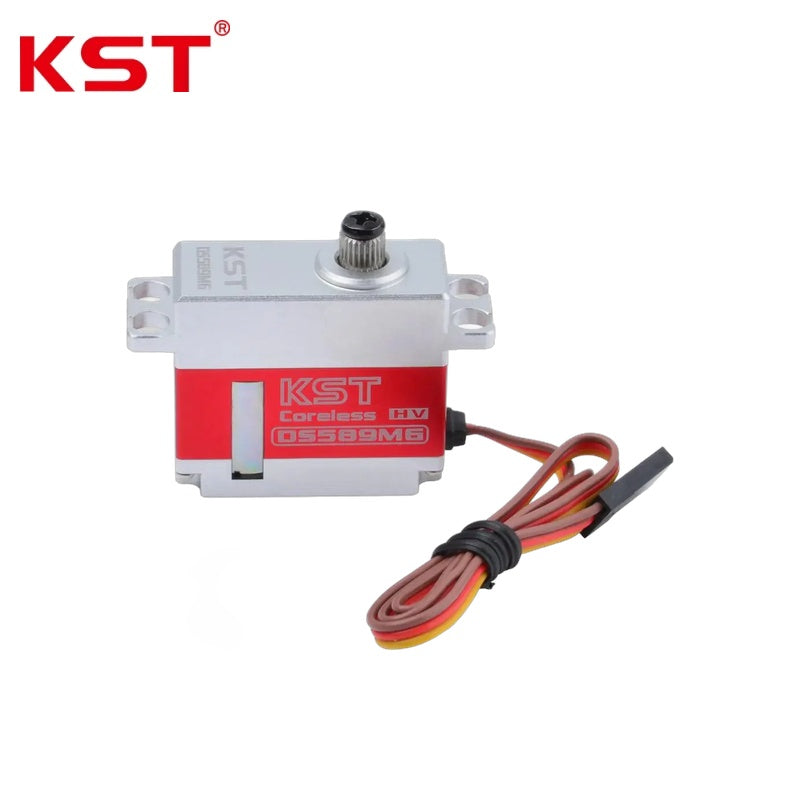

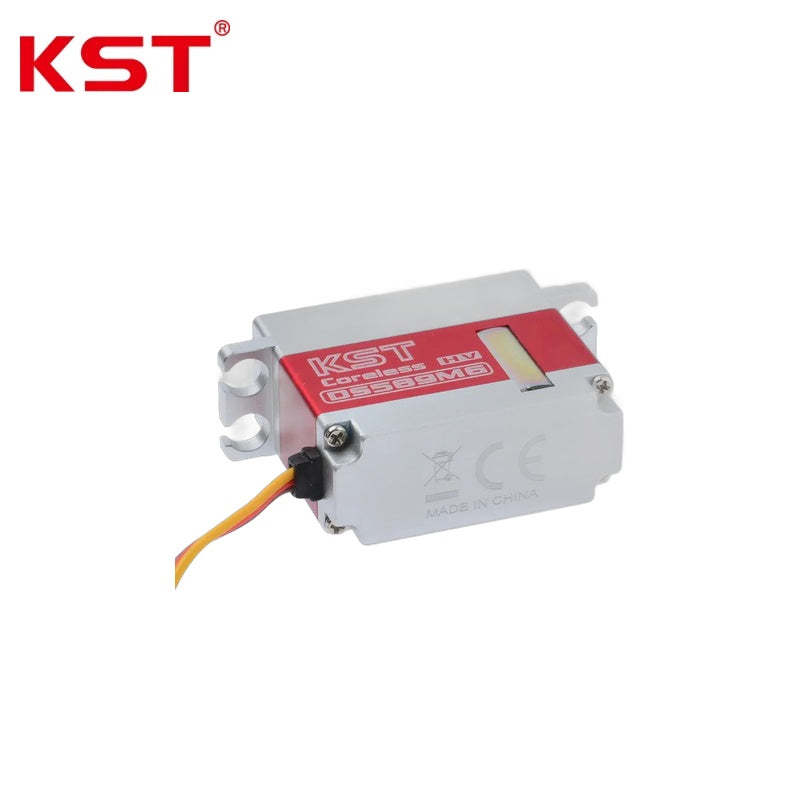

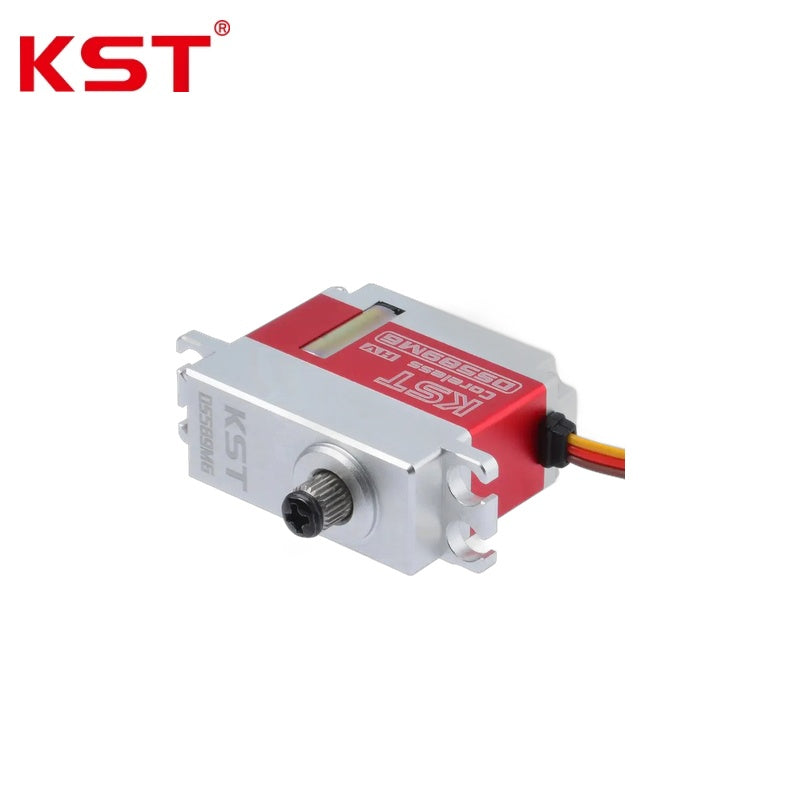

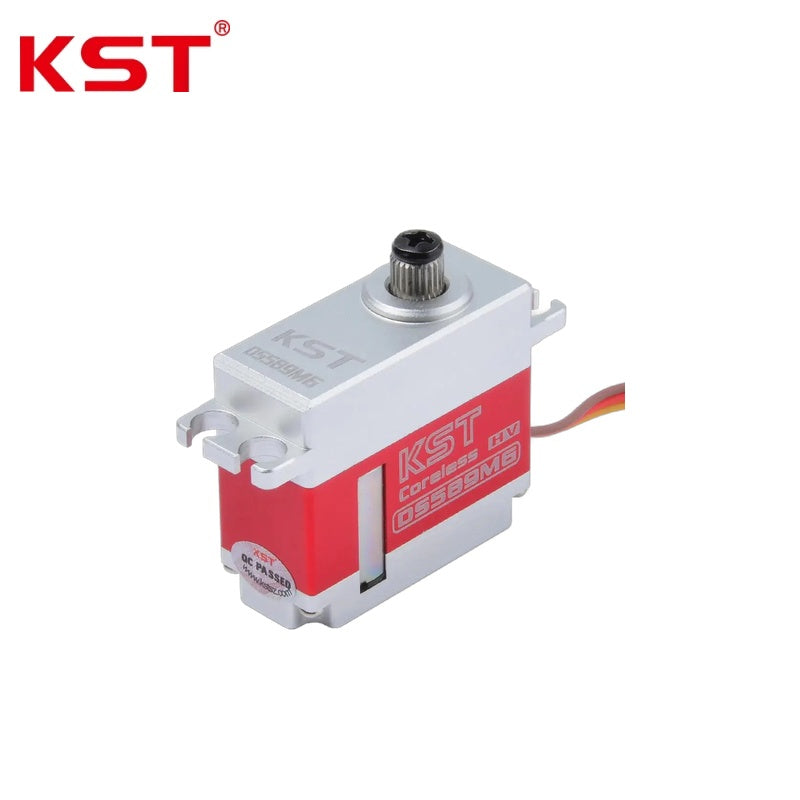

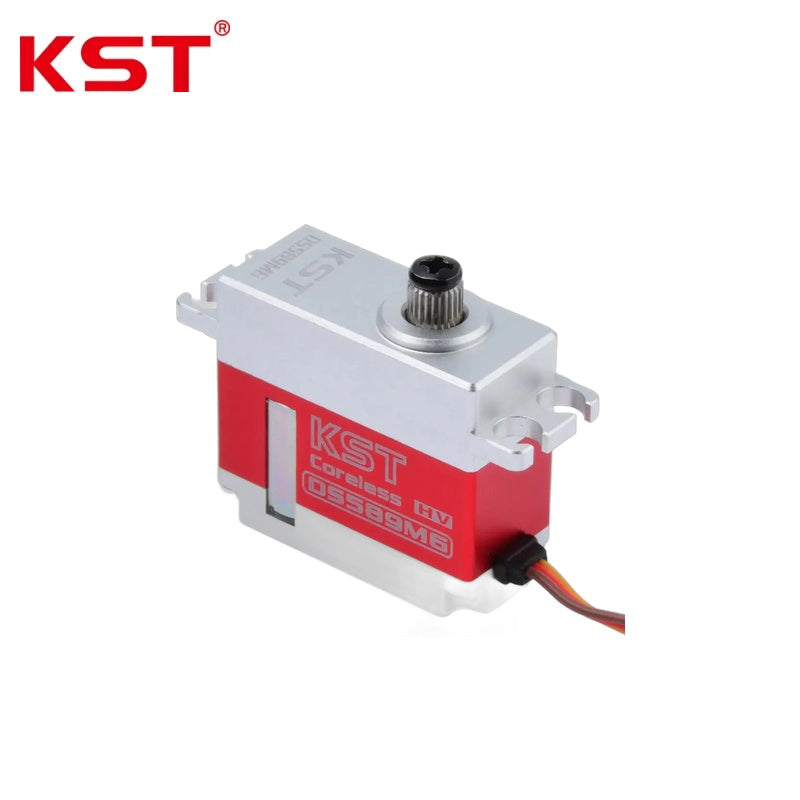

KST DS589MG Servo Motor
Regular price
$64.99
Unit price
KST DS589MG Servo Motor - DS589MG is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
KST DS589MG Servo Motor
Regular price
$64.99
Unit price
KST DS589MG Servo Motor - DS589MG is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Performance & Electrical Ratings: | |
| Rated Voltage | DC7.4V |
| Voltage Range | DC6.0V-8.4V |
| Stalling Torque | 6.5Kgf.cm@6.0V; 8.0Kgf.cm@7.4V; 9.2Kgf.cm@8.4V |
| No-load Speed | 0.10sec/60°@6.0V; 0.09sec/60°@7.4V; 0.08sec/60°@8.4V |
| Control Specifications: | |
| Working Frequency | 1520us/333Hz |
| Default Travel Angle | ±60°=120° Total |
| Internal Characteristics: | |
| Soft Start | Programmable |
| Programmable | Yes |
| Motor Type | Coreless DC Motor |
| Gear Set Material | Hardened Steel |
| Position Sensor | Potentiometer |
| Physical & Environmental: | |
| Temperature Range | -20℃...+65℃ |
| Case Material | Aluminum Alloy |
| Case Dimensions | 35.5mm*15mm*32.5mm±0.2mm |
| Weight | 40g±10% |
