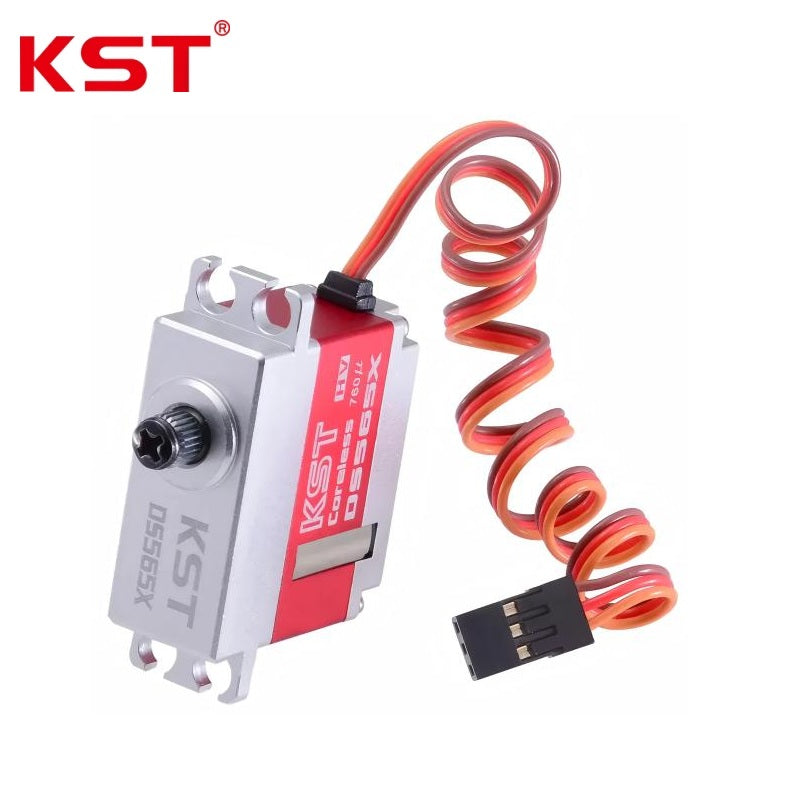

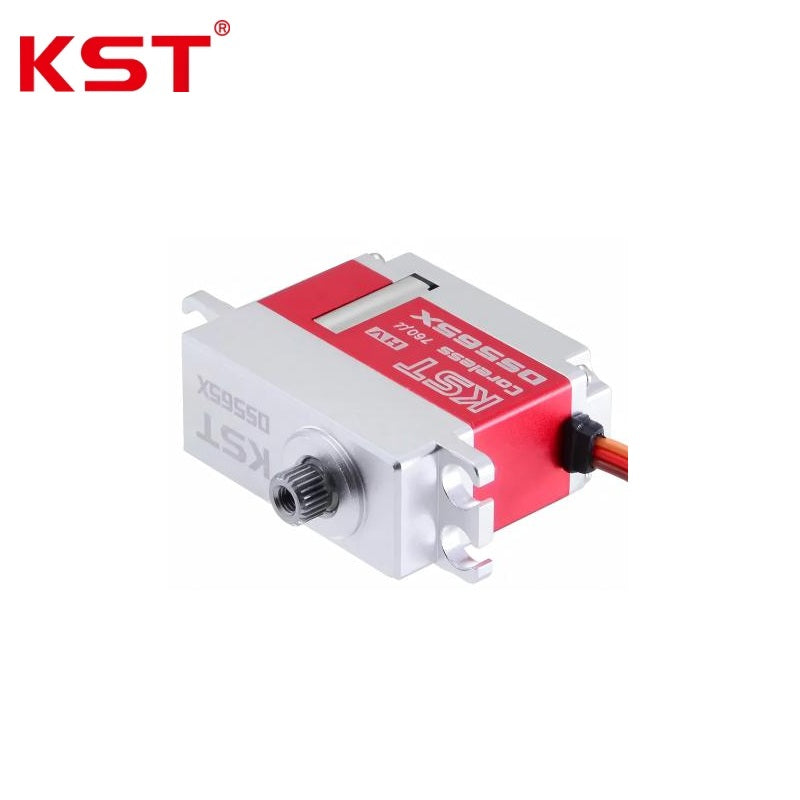

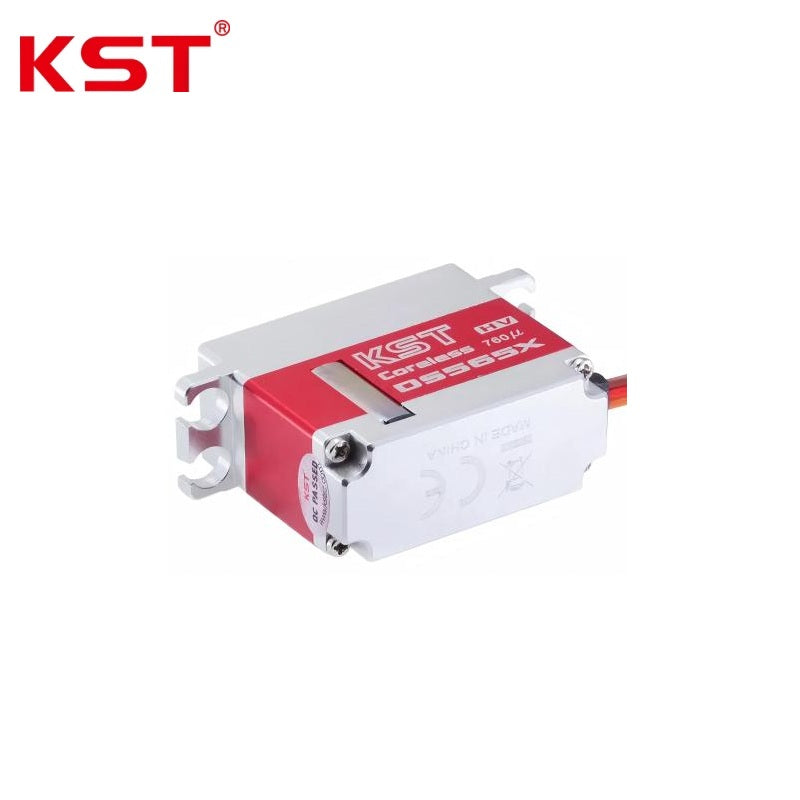

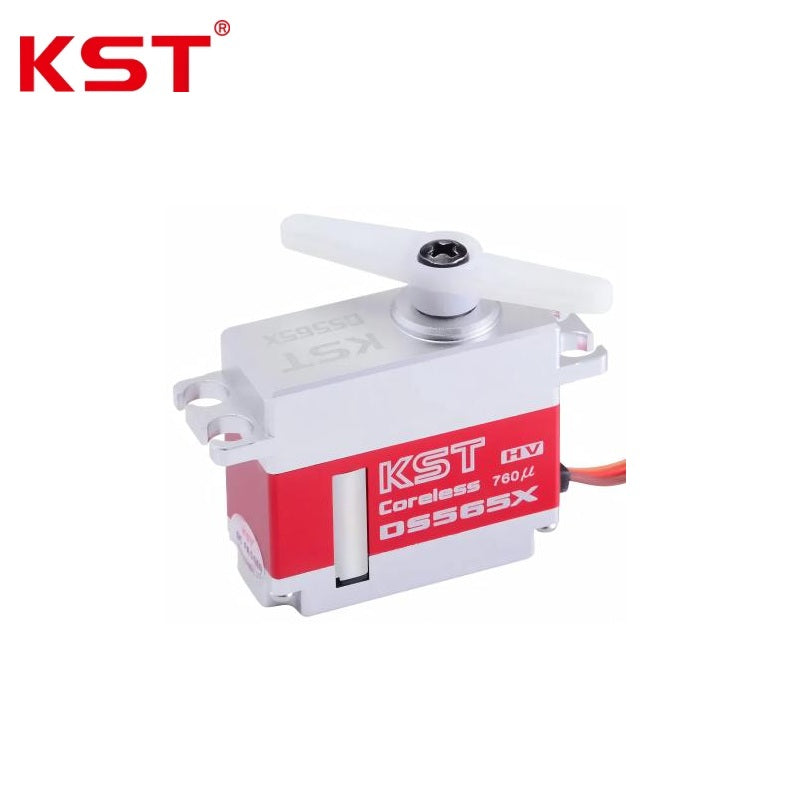

KST DS565X Servo Motor
Regular price
$64.99
Unit price
KST DS565X Servo Motor - DS565X is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
KST DS565X Servo Motor
Regular price
$64.99
Unit price
KST DS565X Servo Motor - DS565X is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Performance & Electrical Ratings: | |
| Rated Voltage | DC 7.4V |
| Operating Voltage Range | DC 6.0V - 8.4V |
| Stalling Torque | 4.0 kgf.cm @ 6.0V; 5.0 kgf.cm @ 7.4V; 6.0 kgf.cm @ 8.4V |
| No-load Rotational Speed | 0.06 sec/60deg @ 6.0V; 0.05 sec/60deg @ 7.4V; 0.04 sec/60deg @ 8.4V |
| Working Frequency | 760 us / 560 Hz |
| Control Specifications: | |
| Control Signal Voltage Level | HIGH: Min. 3.3V, Max. 5.0V; LOW: Min. 0.0V, Max. 1.5V |
| Control Pulse Width Range | 450 us - 4050 us |
| Soft Start Function | Programmable |
| Programmable Function | Yes |
| Internal Characteristics: | |
| Driving Motor Type | Coreless DC Motor |
| Gear Train Material | Hardened Steel |
| Position Sensing Component | Potentiometer |
| Physical & Environmental: | |
| Housing Material | Aluminum Alloy |
| Housing Overall Dimension | 35.5 mm x 15 mm x 32.5 mm +/- 0.2 mm |
| Product Net Weight | 40 g +/- 10% |
| Operating Temperature Range | -10 deg C ~ +65 deg C |
