KST | SKU:

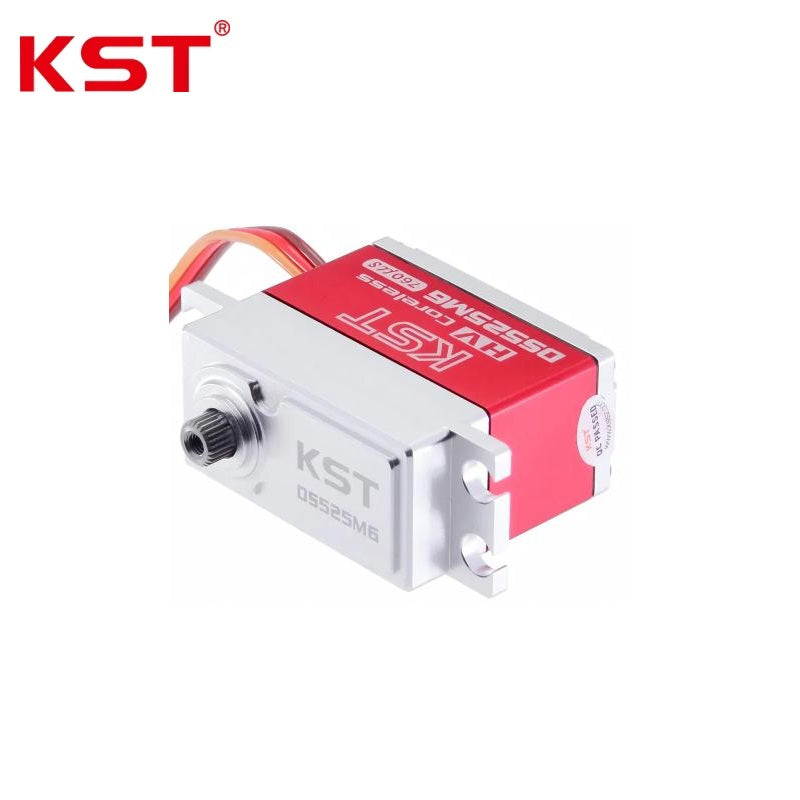

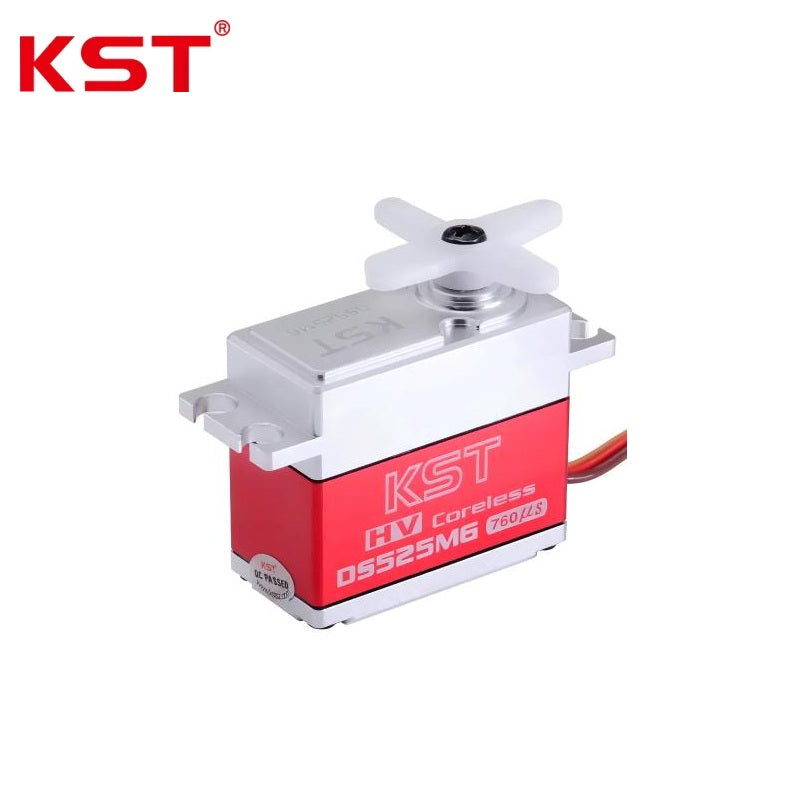

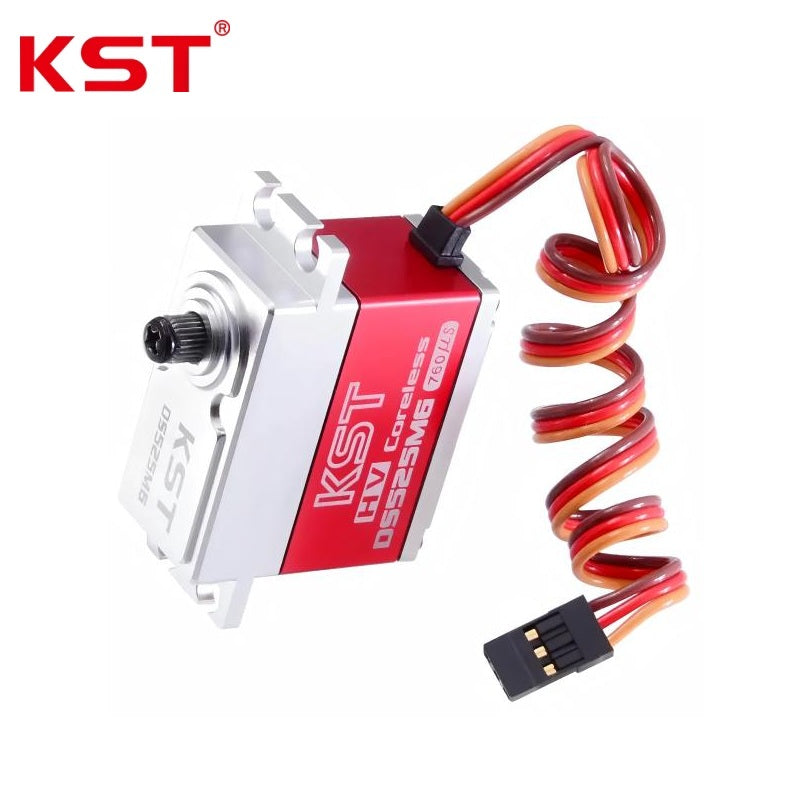

KST DS525MG Servo Motor
Regular price
$64.99
Unit price
KST DS525MG Servo Motor - DS525MG is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
KST DS525MG Servo Motor
Regular price
$64.99
Unit price
KST DS525MG Servo Motor - DS525MG is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Performance & Electrical Ratings: | |
| Rated Voltage | DC 7.4V |
| Operating Voltage Range | DC 6.0V - 8.4V |
| Output Torque | 5.5 kgf.cm @ 6.0V; 6.5 kgf.cm @ 7.4V; 7.5 kgf.cm @ 8.4V |
| Rotational Speed (60deg Rotation) | 0.050 sec @ 6.0V; 0.045 sec @ 7.4V; 0.040 sec @ 8.4V |
| Working Control Frequency | 760 us / 560 Hz |
| Control Specifications: | |
| Control Signal Voltage | High Level: Min. 3.3V, Max. 5.0V; Low Level: Min. 0.0V, Max. 1.5V |
| Control Pulse Width Range | 450 us - 1050 us |
| Internal Characteristics: | |
| Driving Motor Type | Coreless DC Motor |
| Gear Train Material | Hardened Steel |
| Position Feedback Sensor | Potentiometer |
| Ball Bearing Quantity | 2 BB (2pcs Ball Bearings) |
| Physical & Environmental: | |
| Housing Material | Aluminum Alloy |
| Overall Housing Dimension | 40.5 mm x 20 mm x 38 mm +/- 0.2 mm |
| Net Weight | 70 g +/- 10% |
| Operating Ambient Temperature Range | -10 deg C - +65 deg C |
