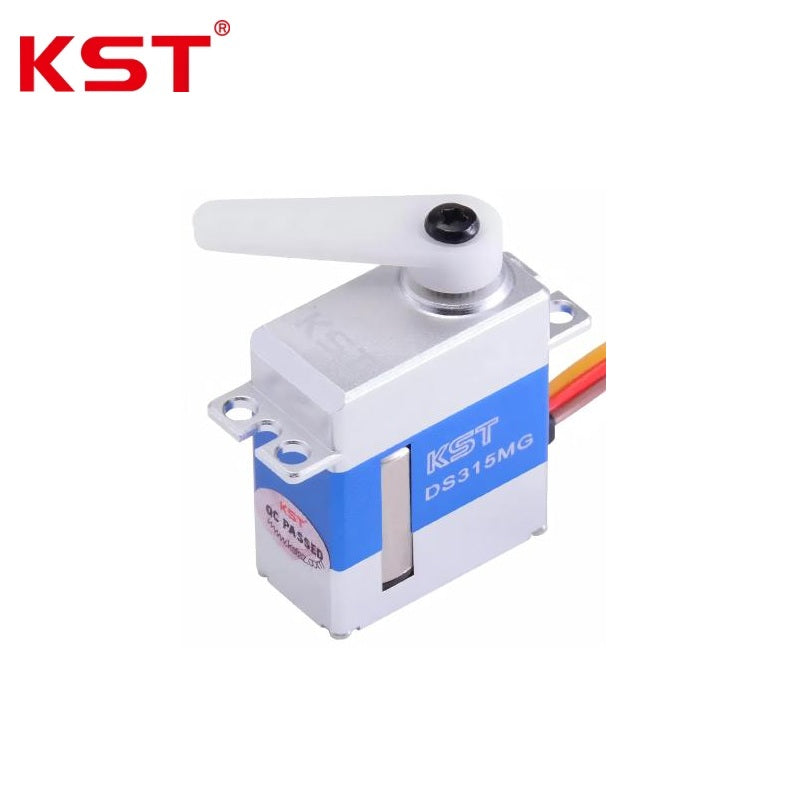

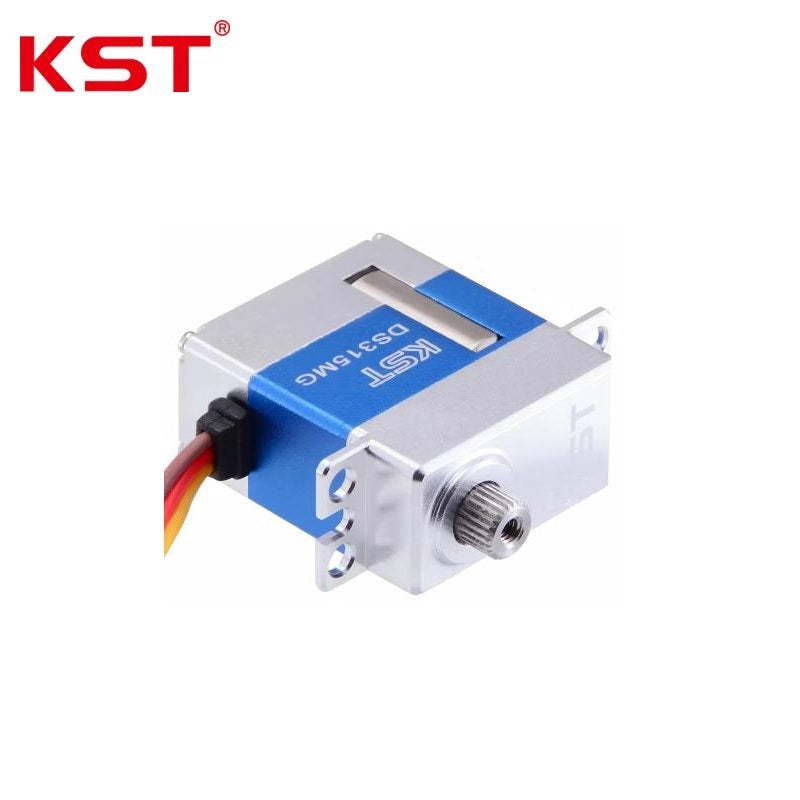

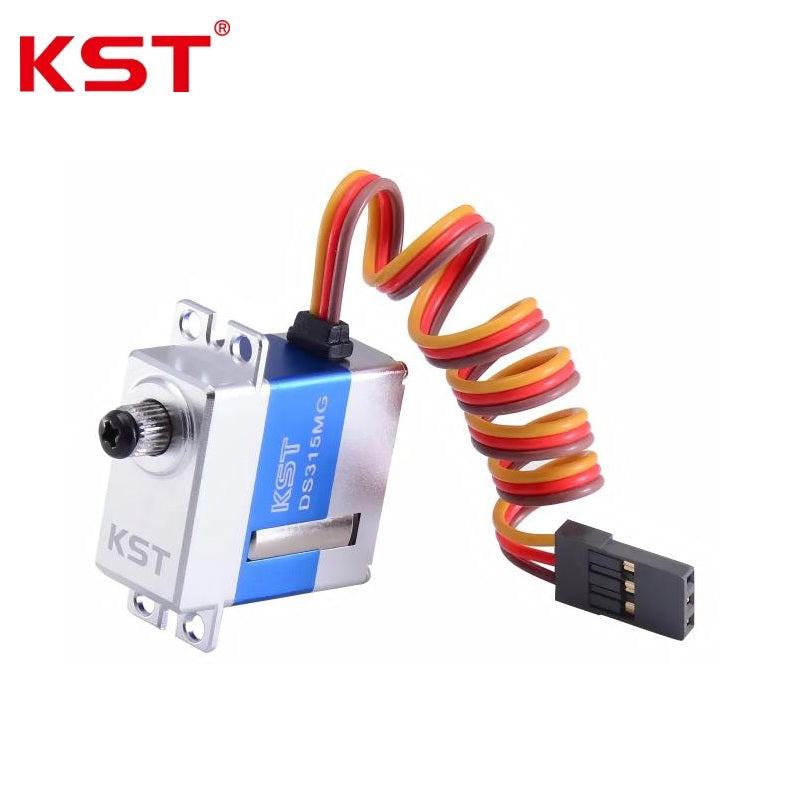

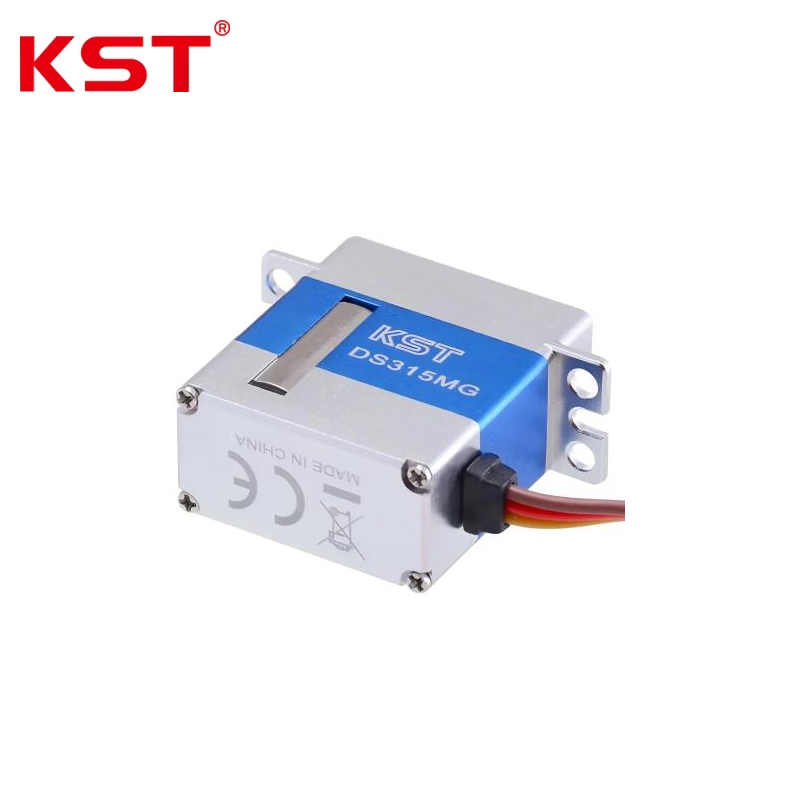

KST DS315MG Servo Motor

$34.99
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Performance & Electrical Ratings:
Rated Voltage DC 6.0V
Operating Voltage Range DC 4.8V - 8.4V
Stalling Torque 2.8 kgf.cm @ 4.80V; 3.5 kgf.cm @ 6.0V; 4.3 kgf.cm @ 7.4V; 4.8 kgf.cm @ 8.4V
No-load Rotational Speed (60deg Rotation) 0.10 sec @ 4.80V; 0.09 sec @ 6.0V; 0.08 sec @ 7.4V; 0.07 sec @ 8.4V
Operating Frequency 1520 us / 333 Hz
Control Specifications:
Default Rotational Travel Angle +/-70 deg (Total 140 deg)
Control Signal Voltage Level High Level: Min. 3.3V - Max. 5.0V; Low Level: Min. 0.0V - Max. 1.5V
Overall Control Pulse Width Range 900 us - 2100 us
Position-corresponding Control Pulse Width 1000 us -> -50 deg; 1500 us -> 0 deg; 2000 us -> +50 deg
Soft-start Function / Programmable Feature Programmable / Yes
Internal Characteristics:
Driving Motor Type Coreless DC Motor
Transmission Gear Material Hardened Steel
Position Feedback Sensor Potentiometer
Ball Bearing Configuration 2BB (2 pieces of ball bearing)
Physical & Environmental:
Housing Material Aluminum Alloy
Overall Housing Dimension 23 mm x 12 mm x 27.5 mm +/- 0.2 mm
Net Weight 20 g +/- 10%
Operating Ambient Temperature Range -20 deg C ~ +65 deg C
