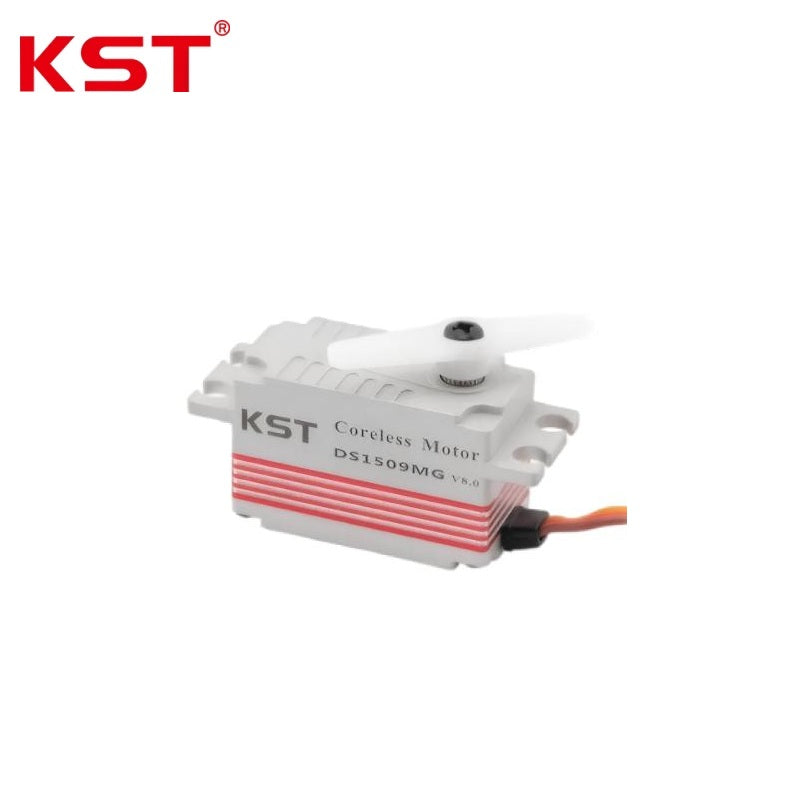

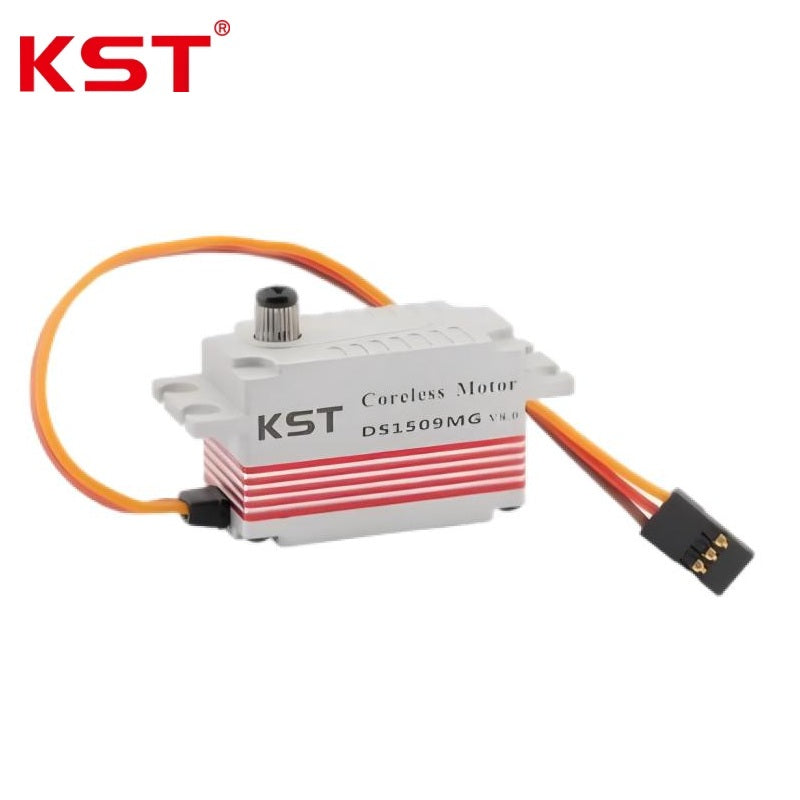

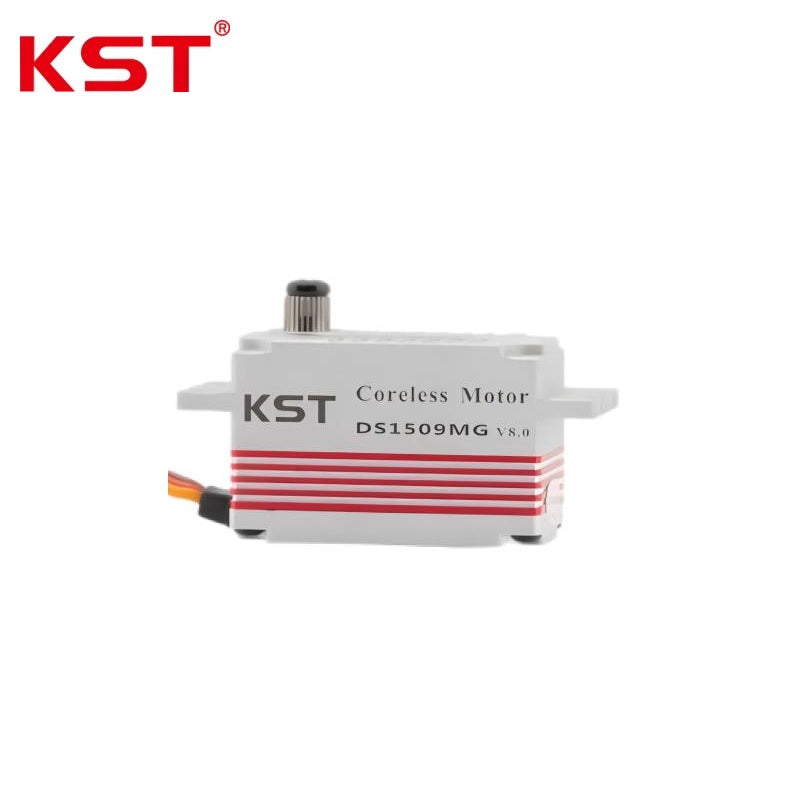

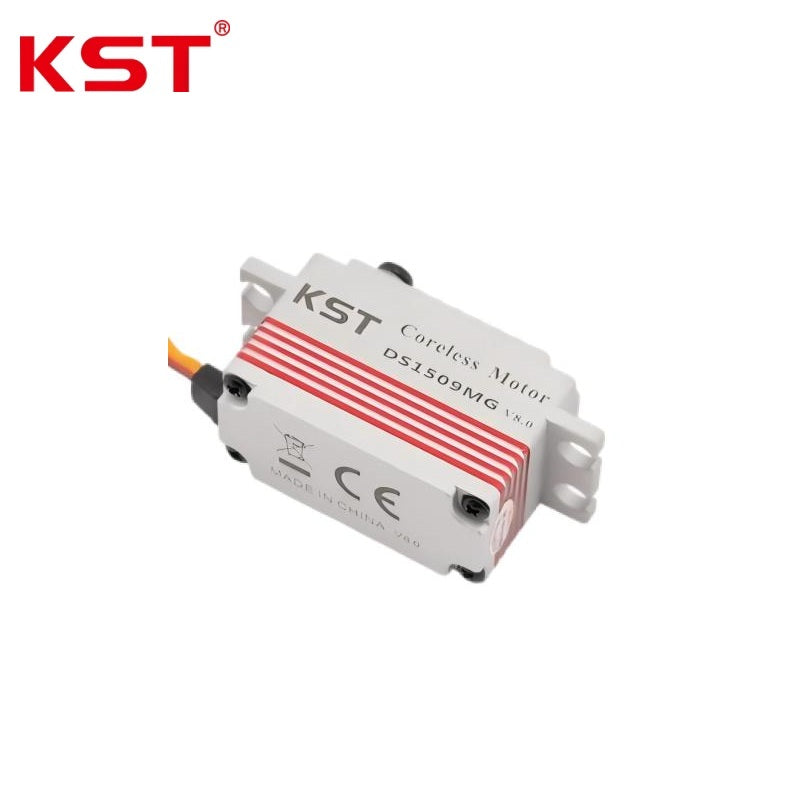

KST DS1509MG Servo Motor

$64.99

Version

DS1509MG

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	Value
Performance & Electrical Ratings:
Rated Voltage	DC 7.4 V
Operating Voltage Range	DC 4.8 V - 7.4 V
Stalling Torque	8.5 kgf.cm @ 4.8V; 10.7 kgf.cm @ 6.0V; 12.8 kgf.cm @ 7.4V
No-load Speed (60deg Rotation)	0.10 sec @ 4.8V; 0.08 sec @ 6.0V; 0.07 sec @ 7.4V
Working Frequency	1520 us / 333 Hz
Control Specifications:
Default Travel Angle	+/- 50 deg (100 deg total travel)
Control Signal Voltage Level	HIGH: 3.3V-5.0V; LOW: 0.0V-1.5V
Control Pulse Width Range	900 us - 2100 us
Position Calibration Pulse Width	1000 us (-50deg), 1500 us (0deg), 2000 us (+50deg)
Soft Start / Programmable Support	Programmable / Yes
Internal Characteristics:
Motor Type	Coreless DC Motor
Gear Set Material	Hardened Steel
Position Sensor Type	Potentiometer
Ball Bearing Configuration	2 BB (2 Ball Bearings)
Physical & Environmental:
Housing (Case) Material	Aluminum Alloy
Housing Dimensions	40.5 mm x 20 mm x 26.5 mm +/- 0.2 mm
Weight	55 g +/- 10%
Operating Temperature Range	-10 deg C - +65 deg C
