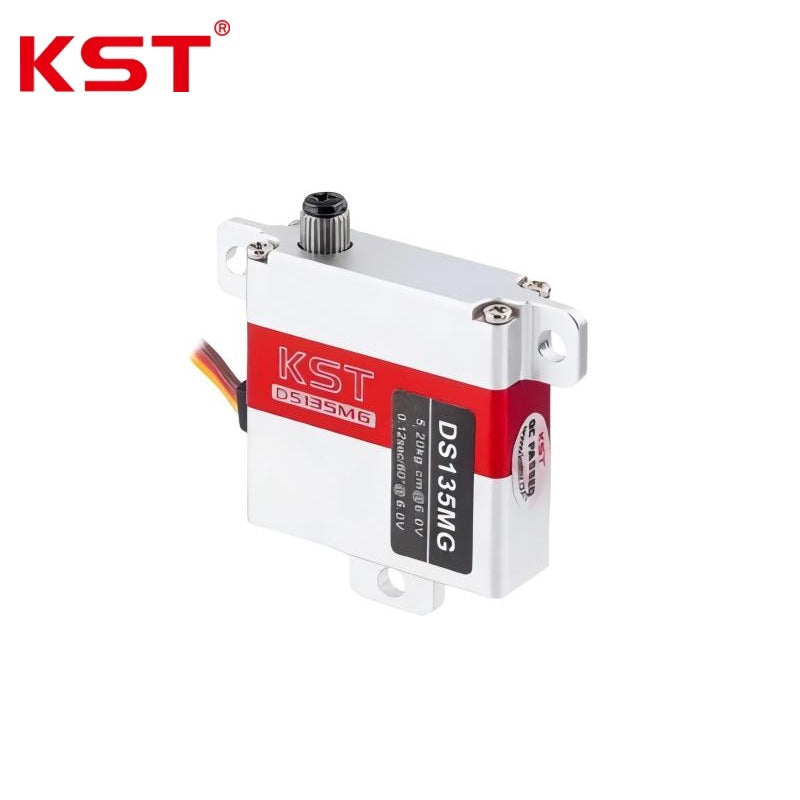

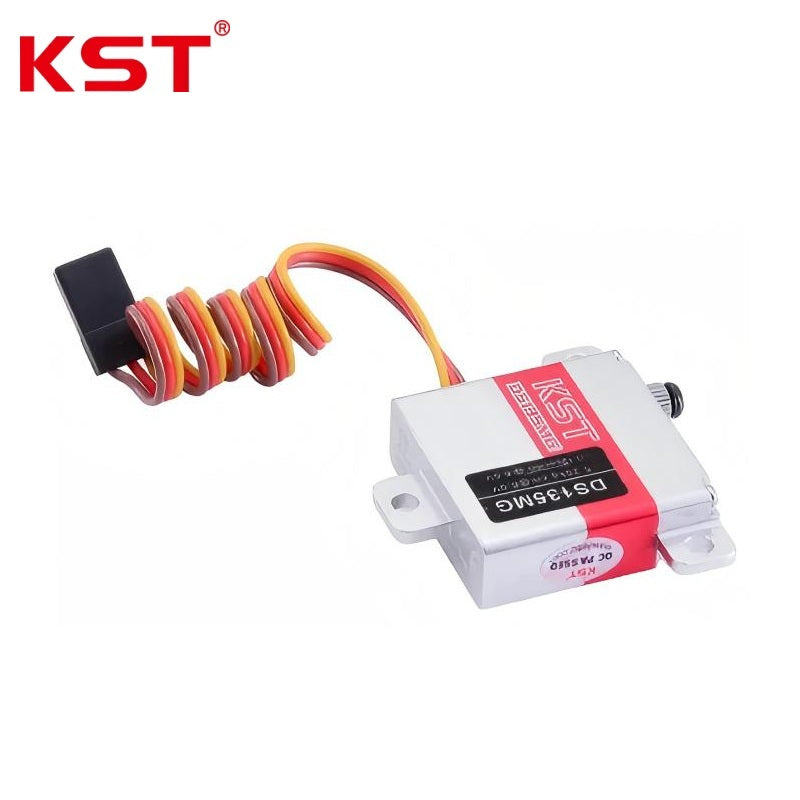

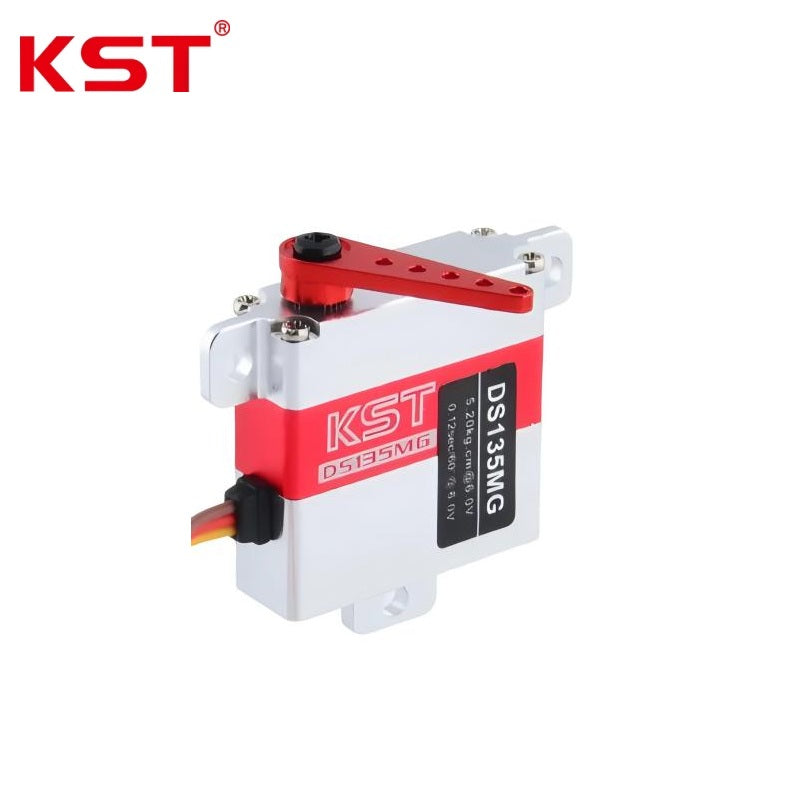

KST DS135MG Servo Motor
Regular price
$34.99
Unit price
KST DS135MG Servo Motor - DS135MG is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
KST DS135MG Servo Motor
Regular price
$34.99
Unit price
KST DS135MG Servo Motor - DS135MG is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Performance & Electrical Ratings: | |
| Rated Voltage | DC 4.8 V |
| Operating Voltage Range | DC 4.8 V ~ 6.0 V |
| Stall Torque | 4.3 kgf.cm @ 4.8 V; 5.2 kgf.cm @ 6.0 V |
| Operating Speed (per 60deg rotation) | 0.15 s @ 4.8 V; 0.12 s @ 6.0 V |
| Operating Frequency | 1520 us / 333 Hz |
| Control Specifications: | |
| Default Travel Angle | +/-50 deg (Total 100 deg) |
| Control Signal Voltage Level | HIGH: 3.3 V (min.)~5.0 V (max.); LOW: 0.0 V (min.)~1.5 V (max.) |
| Control Pulse Width Range | 800 us ~ 2200 us |
| Calibrated Pulse Width (-50 deg / 0 deg / +50 deg) | 1000 us / 1500 us / 2000 us |
| Soft Start Function / Programmable Feature | Programmable / Yes |
| Internal Characteristics: | |
| Motor Type | Coreless DC Motor |
| Gear Set Material | Hardened Steel |
| Position Sensor | Potentiometer |
| Physical & Environmental: | |
| Housing Material | Aluminum Alloy |
| Housing Dimensions | 30 mm x 10 mm x 29.6 mm +/- 0.2 mm |
| Weight | 23 g +/- 10% |
| Operating Temperature Range | -10 deg C ~ +65 deg C |
