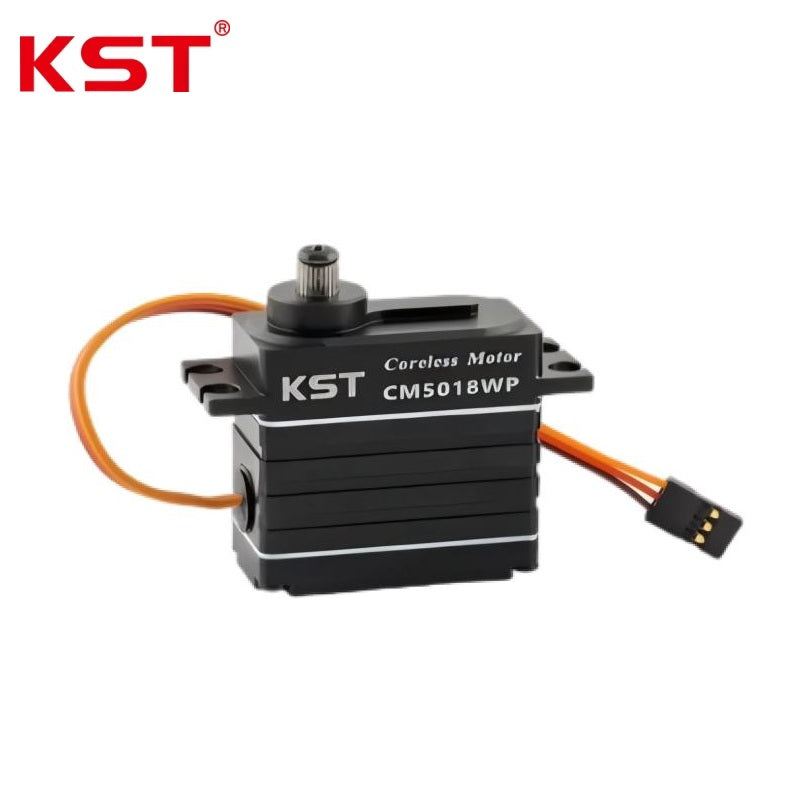

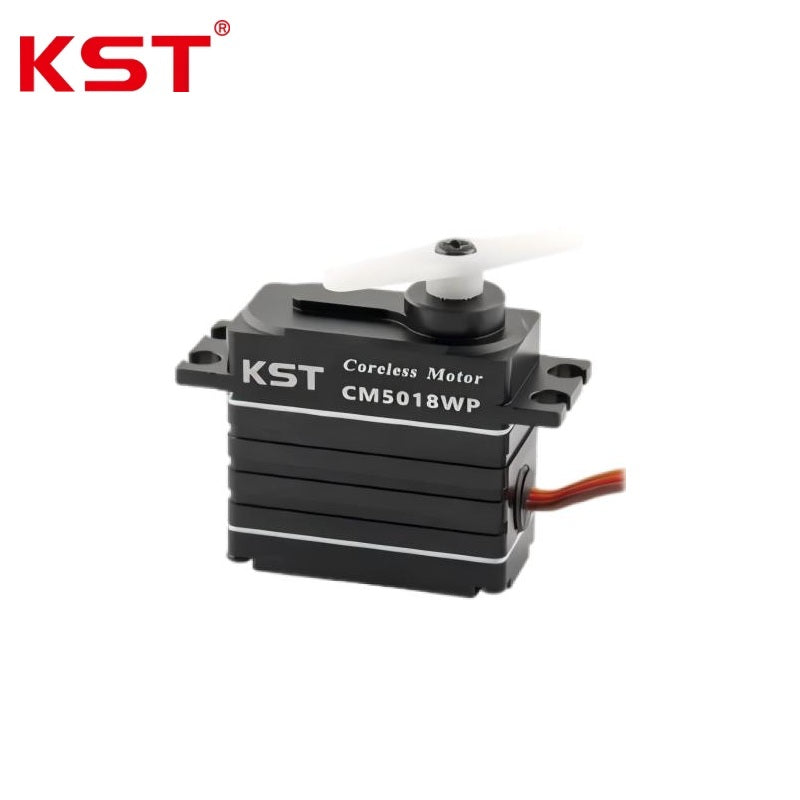

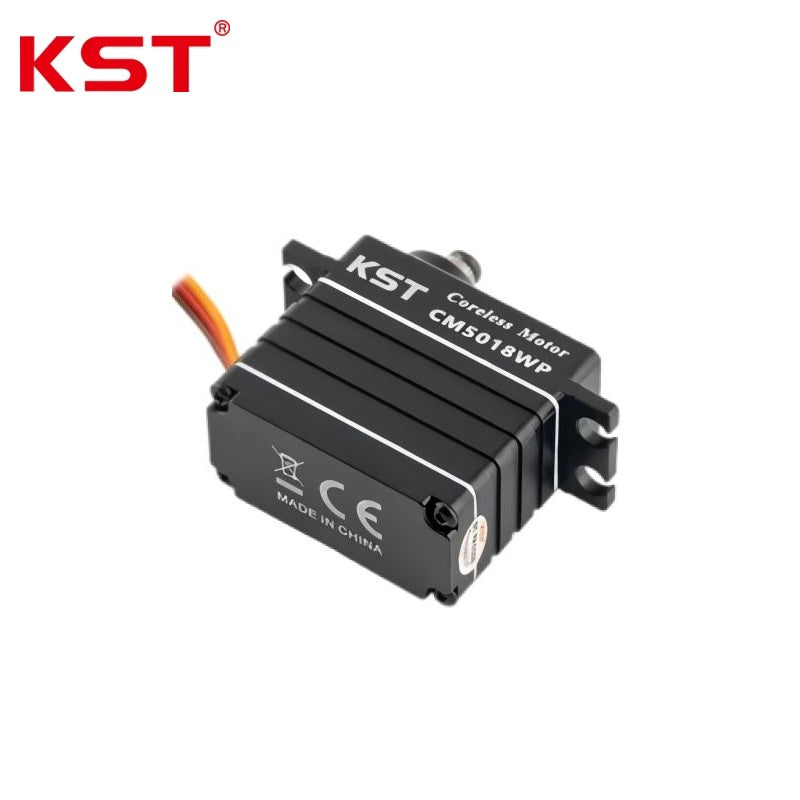

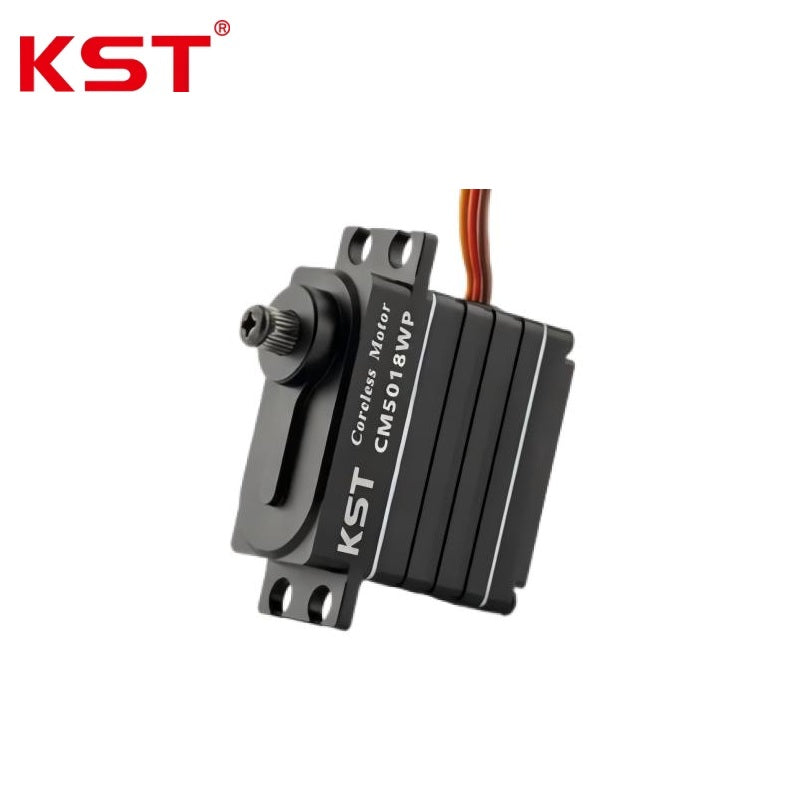

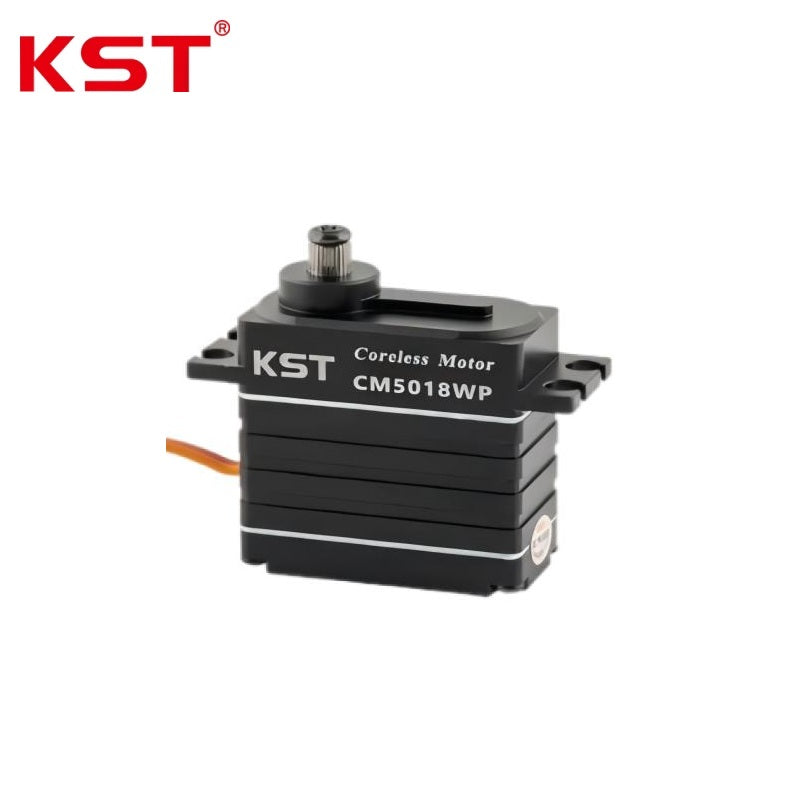

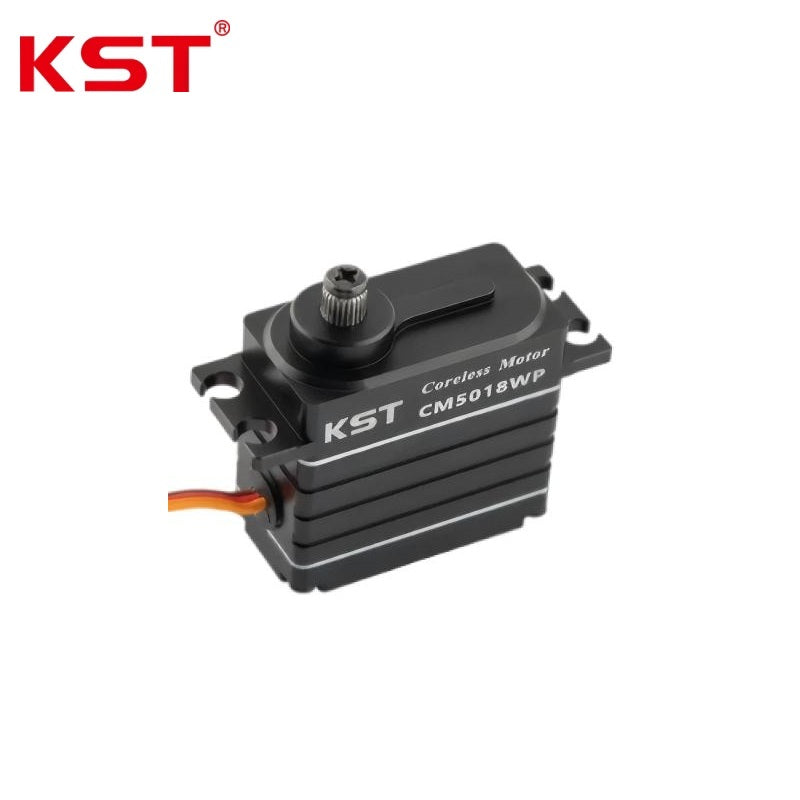

KST CM5018WP Servo Motor

$64.99

Version

CM5018WP

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	Value
Performance & Electrical Ratings:
Rated Voltage	DC 7.4 V
Operating Voltage Range	DC 4.8 V - 8.4 V
Stall Torque	35kgf.cm @ 4.8V; 40kgf.cm @ 6.0V; 45kgf.cm @ 7.4V; 50kgf.cm @ 8.4V
Operating Speed (60deg Rotation)	0.25s @ 4.8V; 0.23s @ 6.0V; 0.20s @ 7.4V; 0.18s @ 8.4V
Starting Current	4.68A @ 4.8V; 5.70A @ 6.0V; 7.25A @ 7.4V; 8.15A @ 8.4V
Working Frequency	1520 us / 333 Hz
Control Specifications:
Default Travel Angle	+/- 50 deg (100 deg Total)
Control Signal Voltage	HIGH: 3.3V - 5.0V; LOW: 0.0V - 1.5V
Internal Characteristics:
Motor Type	Coreless DC Motor
Gear Set Material	Hardened Steel Gear
Position Sensor	Potentiometer
Ball Bearings	2BB (Double Ball Bearings)
Soft Start / Programmable	Programmable / Yes
Physical & Environmental:
Housing Material	Aluminum Alloy
Waterproof Rating	IP67
Case Dimensions	40.5 mm x 20.5 mm x 41.3 mm +/- 0.2 mm
Weight	80 g +/- 10%
Operating Temperature Range	-10 deg C - +65 deg C
