KST | SKU:

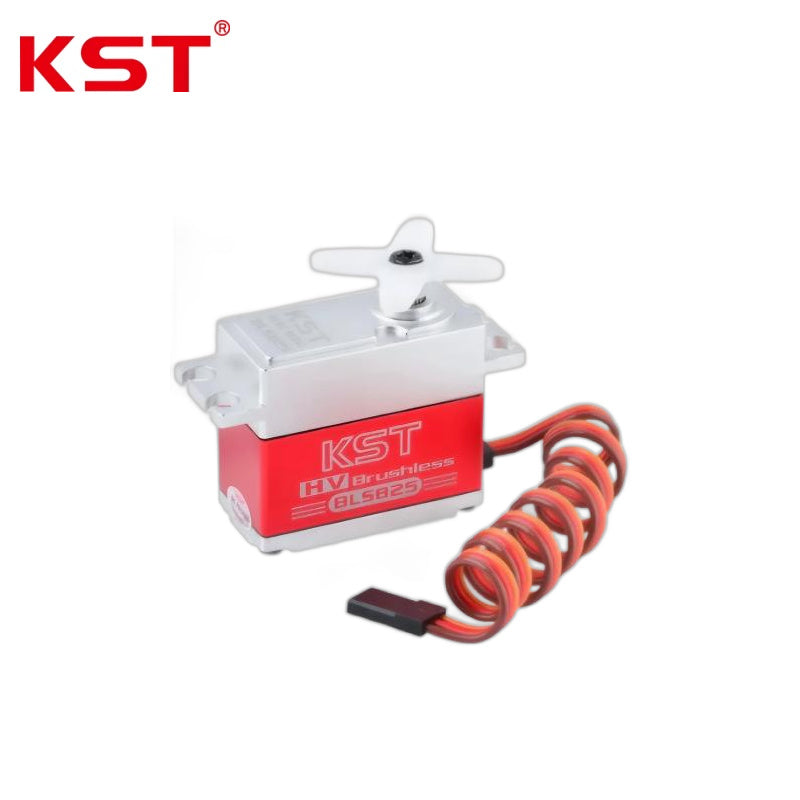

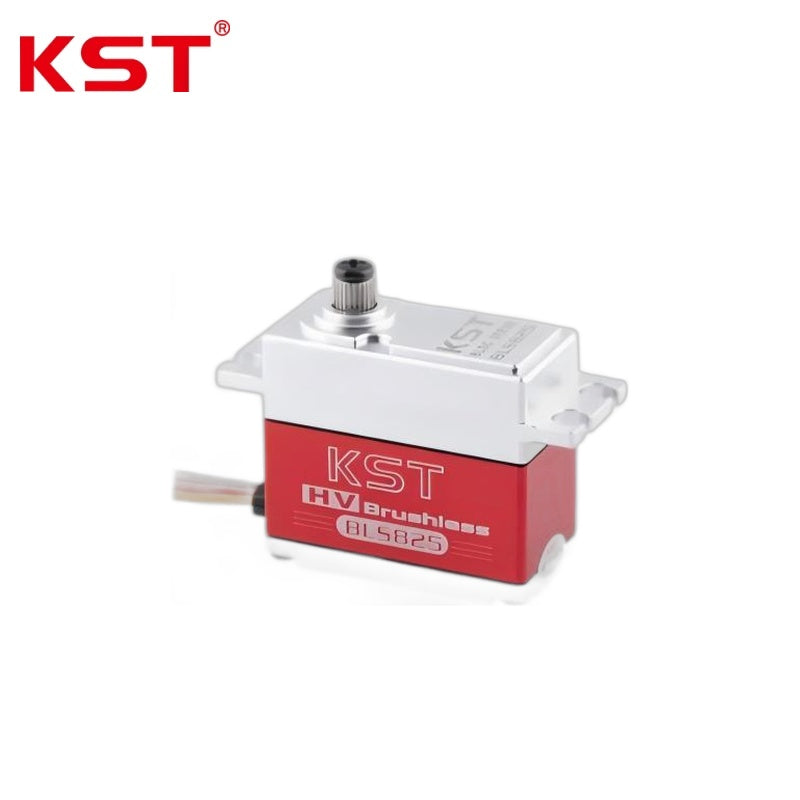

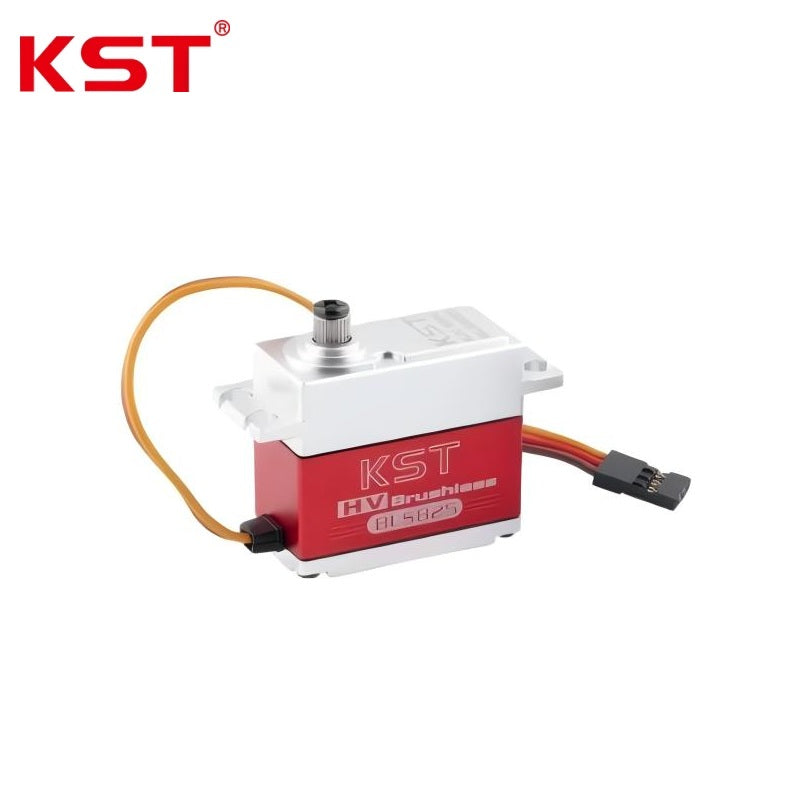

KST BLS825 Servo Motor
Regular price
$79.99
Unit price
KST BLS825 Servo Motor - BLS825 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
KST BLS825 Servo Motor
Regular price
$79.99
Unit price
KST BLS825 Servo Motor - BLS825 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Performance & Electrical Ratings: | |
| Rated Voltage | DC 7.4V |
| Operating Voltage Range | DC 6.0V ~ 8.4V |
| Stalling Torque | 25 kgf.cm @ 6.0V; 30 kgf.cm @ 7.4V; 35 kgf.cm @ 8.4V |
| No-load Speed | 0.15 sec/60deg @ 6.0V; 0.13 sec/60deg @ 7.4V; 0.11 sec/60deg @ 8.4V |
| Working Frequency | 1520 us / 333 Hz |
| Default Travel Angle | +/-60deg (Total 120deg) |
| Control Specifications: | |
| Control Signal Voltage Level | HIGH: 3.3V (min) ~ 5.0V (max); LOW: 0.0V (min) ~ 1.5V (max) |
| Control Pulse Width Range | 900 us ~ 2100 us |
| Calibrated Pulse-Position Reference | 1000 us -> -50deg; 1500 us -> 0deg; 2000 us -> +50deg |
| Soft Start / Programmable Support | Programmable / Yes |
| Internal Characteristics: | |
| Motor Type | Brushless DC Motor (BLDC) |
| Gear Set Material | Hardened Steel |
| Position Sensor | Potentiometer |
| Physical & Environmental: | |
| Case Material | Aluminum Alloy |
| Case Dimensions | 40.5 mm x 20 mm x 38 mm +/- 0.2 mm |
| Weight | 70 g +/- 10% |
| Operating Temperature Range | -20 deg C ~ +65 deg C |
| Ingress Protection Rating | IP54 |
