KST

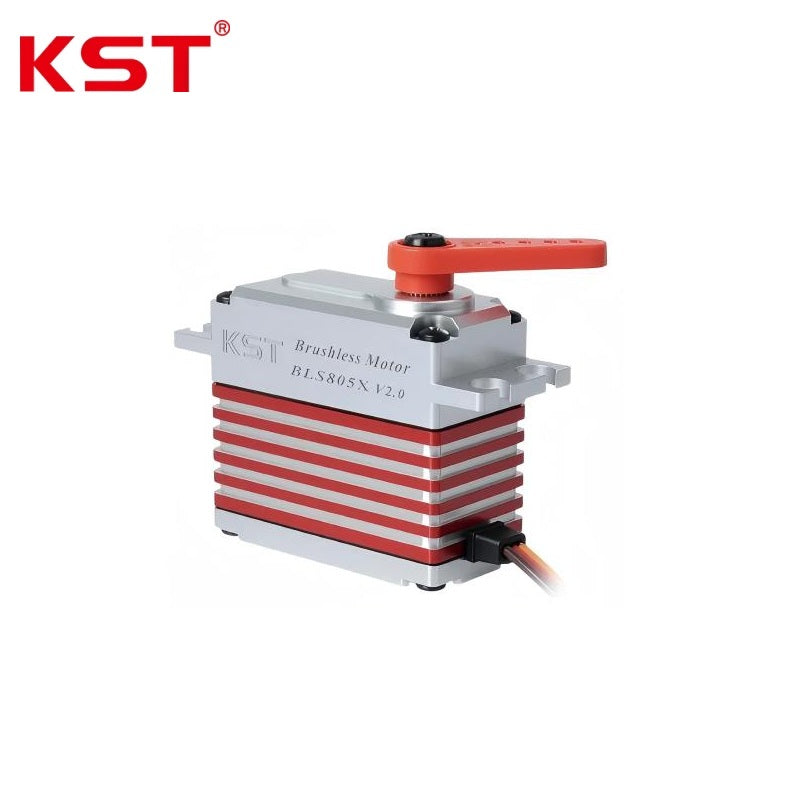

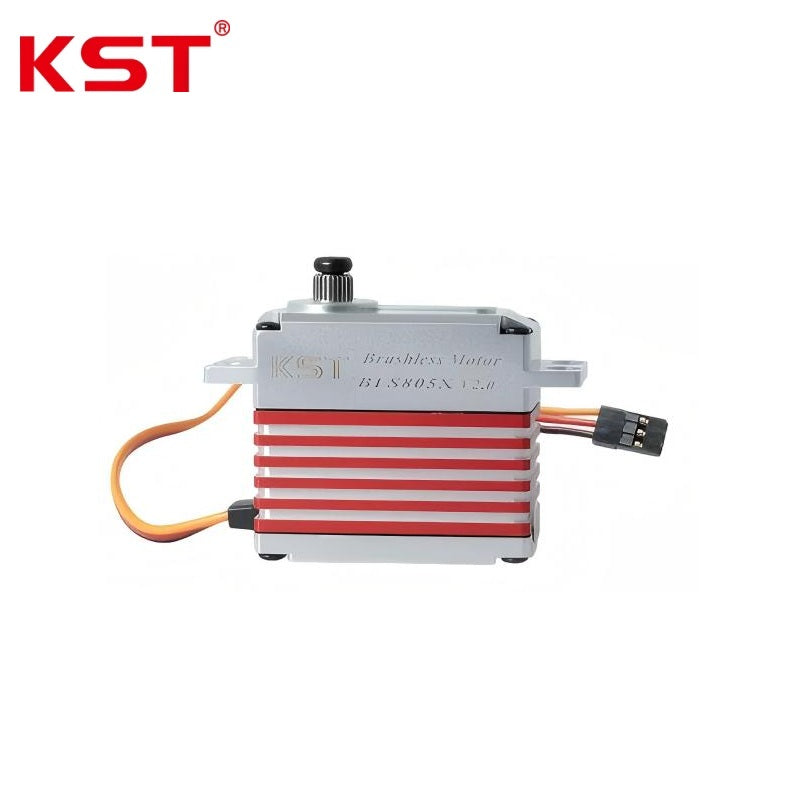

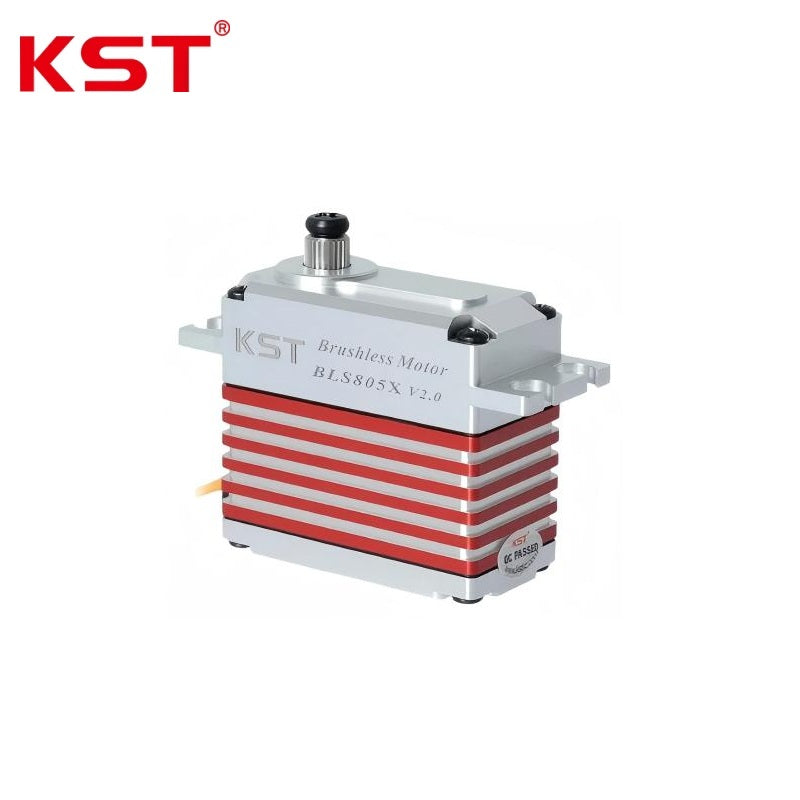

KST BLS805X Servo Motor

$79.99
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Performance & Electrical Ratings:
Rated Voltage DC 7.4 V
Operating Voltage Range DC 6.0 V - 8.4 V
Output Torque 5.5 kgf.cm @ 6.0 V; 6.5 kgf.cm @ 7.4 V; 7.5 kgf.cm @ 8.4 V
Operating Speed (Angular Response) 0.048 sec/60deg @ 6.0 V; 0.042 sec/60deg @ 7.4 V; 0.039 sec/60deg @ 8.4 V
Working Frequency 760 us / 560 Hz
Control Specifications:
Control Signal Voltage HIGH Level: 3.3 V (min.) to 5.0 V (max.); LOW Level: 0.0 V (min.) to 1.5 V (max.)
Control Pulse Width Range 450 us - 1050 us
Internal Characteristics:
Motor Type Brushless DC (BLDC) Motor
Gear Train Material Hardened Steel
Position Feedback Sensor Potentiometer
Ball Bearing Configuration 2 Ball Bearings (2 BB)
Physical & Environmental:
Housing Material Aluminum Alloy
Housing Dimensions 40.5 mm x 20 mm x 38 mm +/- 0.2 mm
Weight 70 g +/- 10%
Operating Temperature Range -10 to +65 deg C
