KST | SKU:

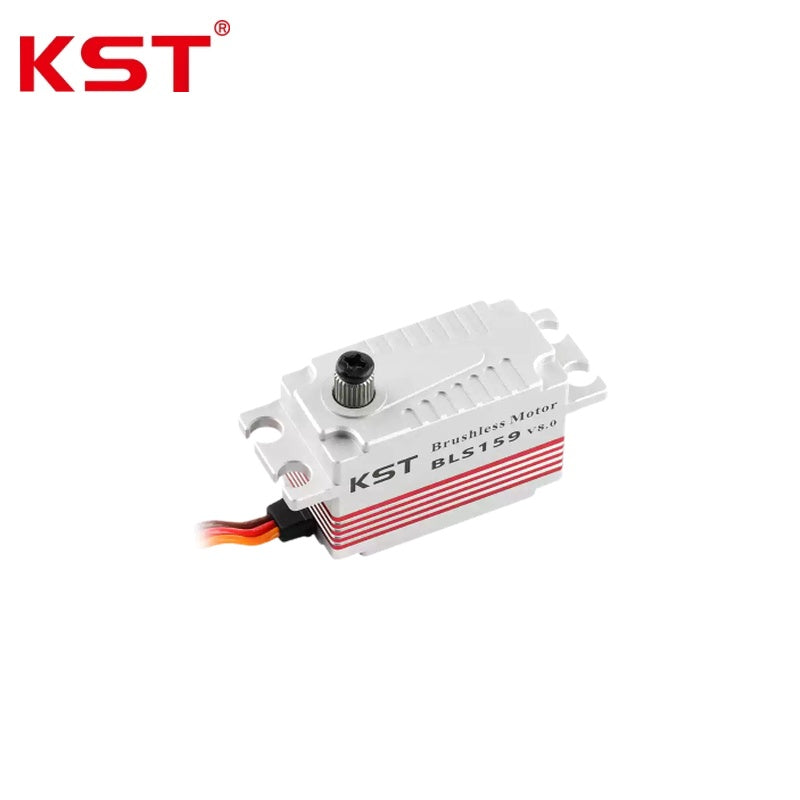

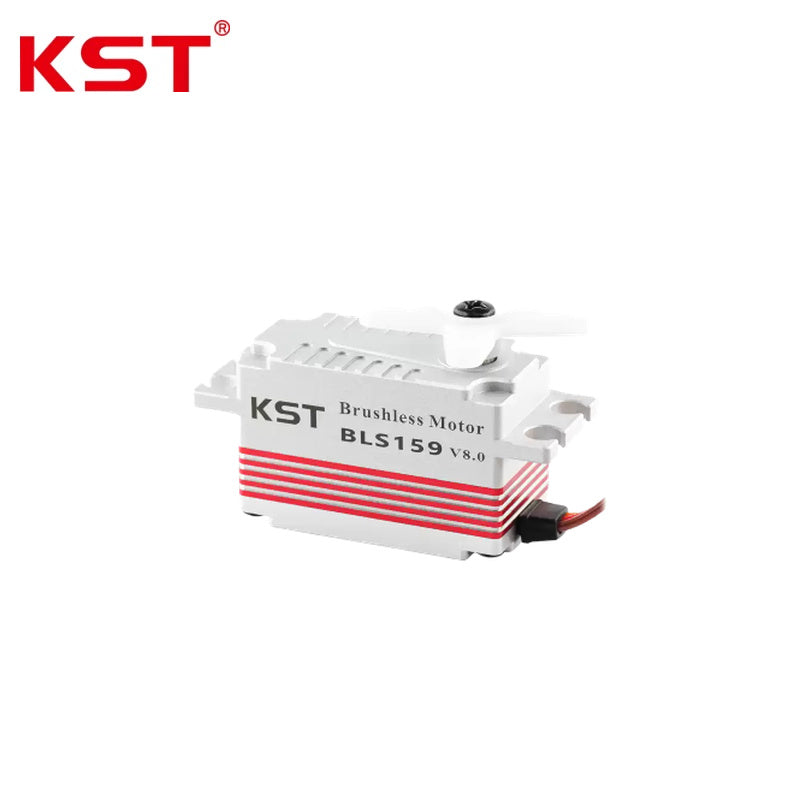

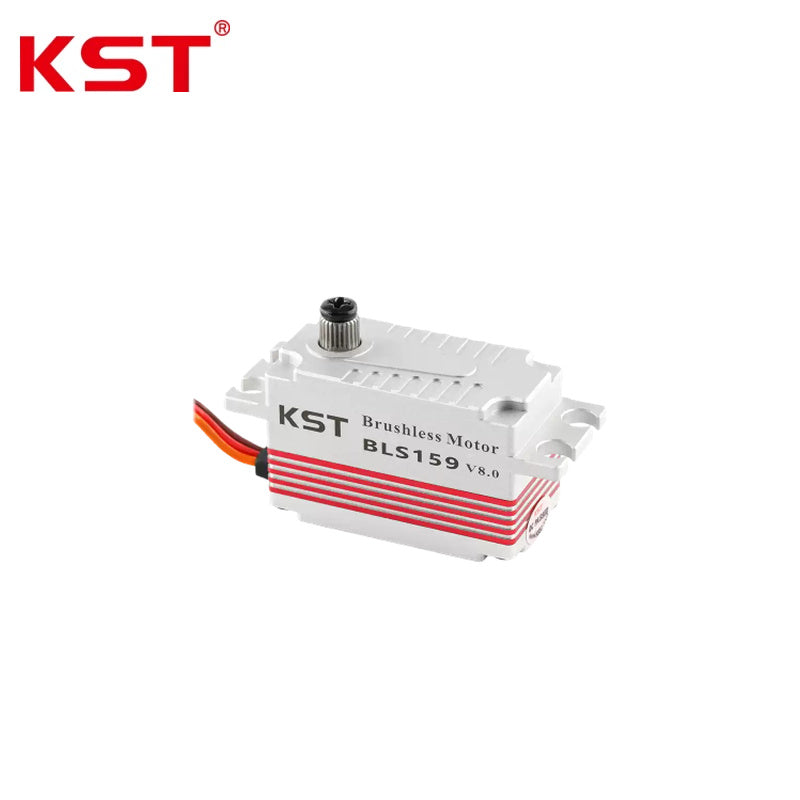

KST BLS159MG Servo Motor
Regular price
$89.99
Unit price
KST BLS159MG Servo Motor - BLS159MG is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
KST BLS159MG Servo Motor
Regular price
$89.99
Unit price
KST BLS159MG Servo Motor - BLS159MG is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Performance & Electrical Ratings: | |
| Rated Voltage | DC7.4V |
| Voltage Range | DC6.0V-8.4V |
| Stalling Torque | 15Kgf.cm@7.4V |
| Rated Torque | 4Kgf.cm@7.4V |
| Stalling Current | 3.85A |
| Rated Current | 0.65A |
| No-load Speed | 0.11sec/60°@7.4V |
| Rated Speed | 0.15sec/60°@7.4V |
| Control Specifications: | |
| Working Frequency | 1520us/333Hz |
| Default Travel Angle | ±50°=100° Total |
| Internal Characteristics: | |
| Soft Start | Programmable |
| Programmable | Yes |
| Motor Type | Brushless DC Motor |
| Gear Set Material | Hardened Steel |
| Position Sensor | Potentiometer |
| Ball Bearing | 2BB |
| Physical & Environmental: | |
| Temperature Range | -10°C — +65°C |
| Case Material | Aluminum Alloy |
| Case Dimensions | 40mm*20mm*26.5mm±0.2mm |
| Weight | 55g±10% |
