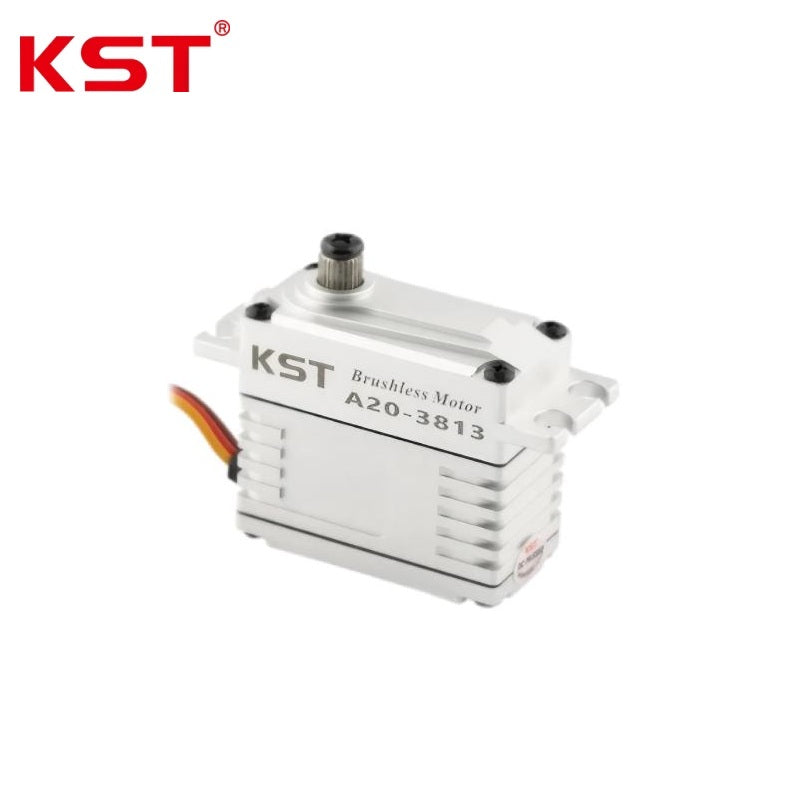

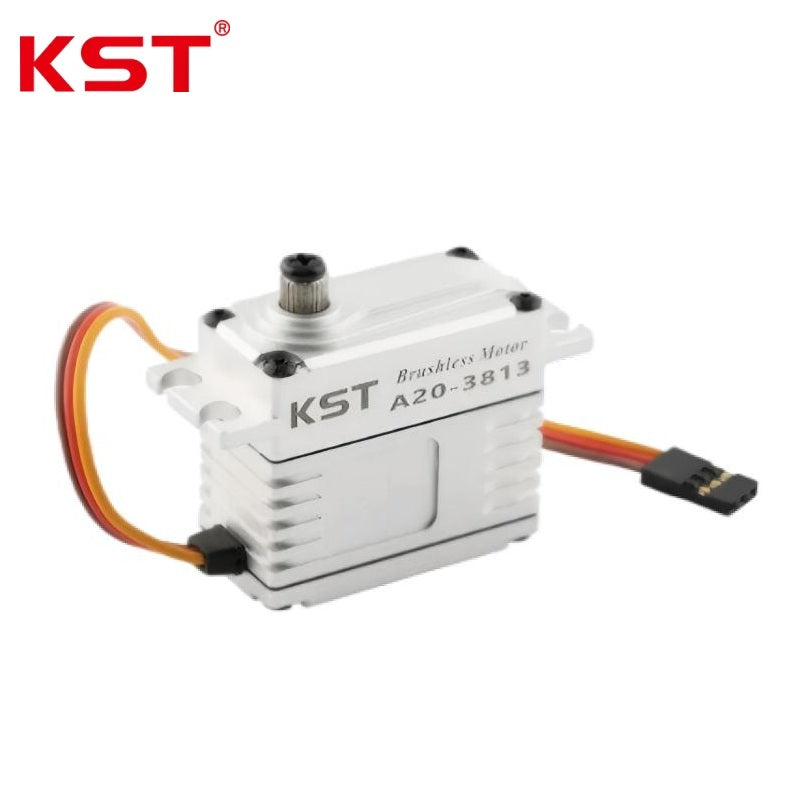

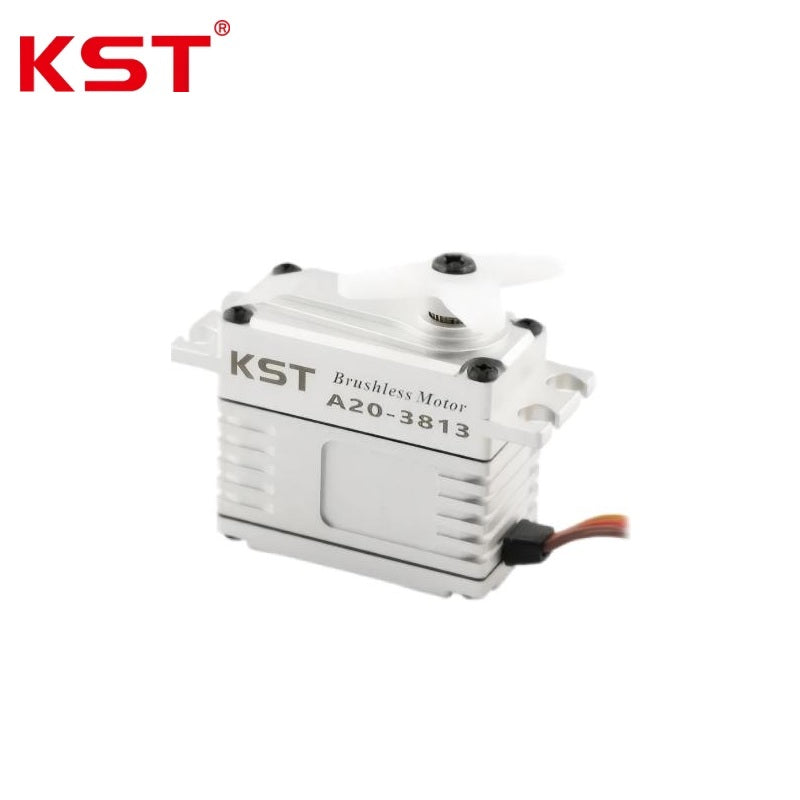

KST A20-3813 Servo Motor

$89.99

Version

A20-3813

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	Value
Performance & Electrical Ratings:
Rated Voltage	DC 7.4 V
Operating Voltage Range	DC 6.0 V - 8.4 V
Stalling Torque	30 kgf.cm @ 6.0V; 38 kgf.cm @ 7.4V; 43 kgf.cm @ 8.4V
No-load Speed (60deg Rotation)	0.18s @ 6.0V; 0.13s @ 7.4V; 0.12s @ 8.4V
Working Frequency	1520 us / 333 Hz
Control Specifications:
Default Travel Angle	+/- 50 deg (200 deg Total Mechanical Travel)
Control Signal Voltage (TTL Level)	HIGH: 3.3V - 5.0V; LOW: 0.0V - 1.5V
Control Pulse Width Range	900 us - 2100 us
Position Calibration Pulse Width	1000 us (-50 deg); 1500 us (0 deg); 2000 us (+50 deg)
Internal Characteristics:
Motor Type	Brushless DC Motor (BLDC)
Gear Set Material	Hardened Steel
Position Feedback Sensor	Potentiometer
Ball Bearing Configuration	2 Ball Bearings (2BB)
Physical & Environmental:
Housing Material	Aluminum Alloy
Housing Dimensions	40.5 mm x 20 mm x 38 mm +/- 0.2 mm
Weight	72 g +/- 10%
Operating Temperature Range	-10 deg C - +65 deg C
