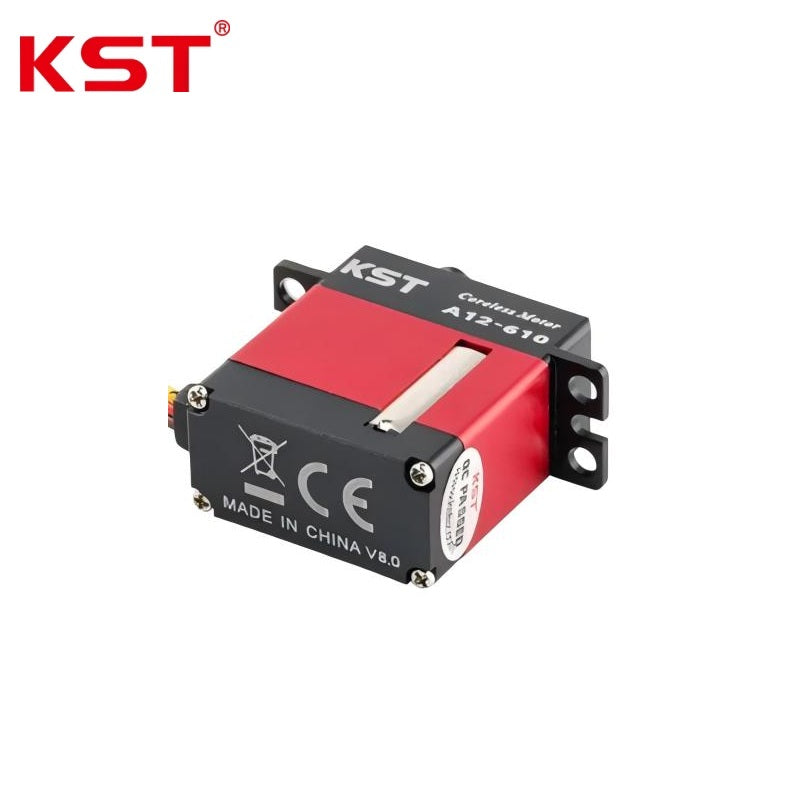

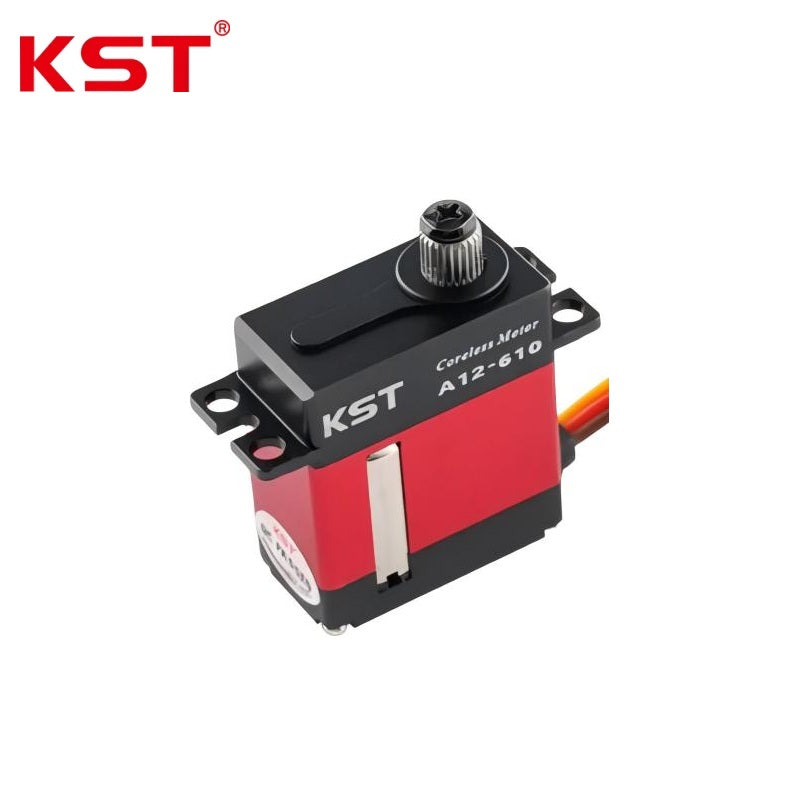

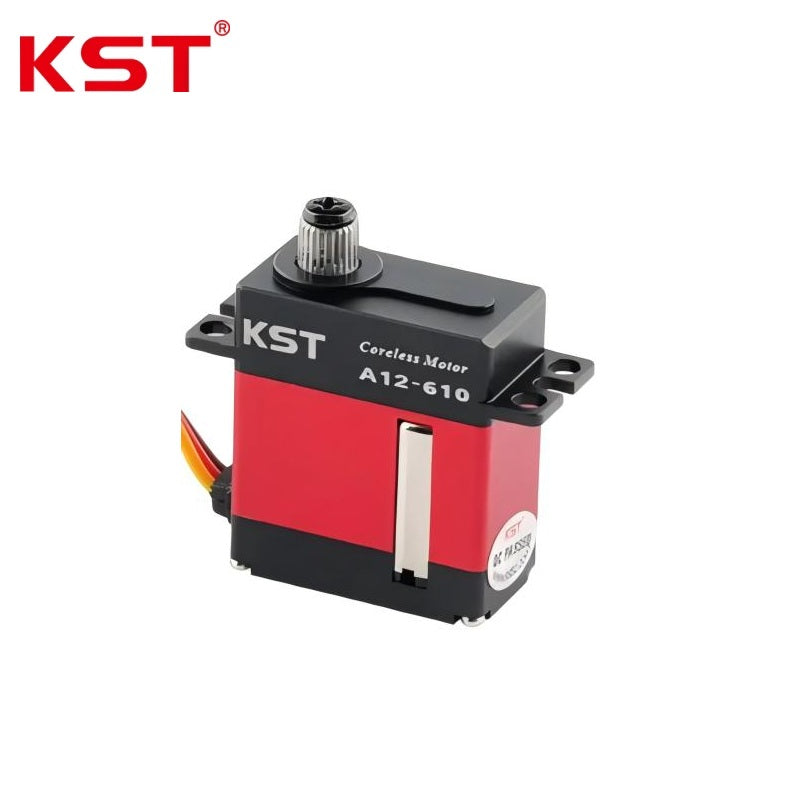

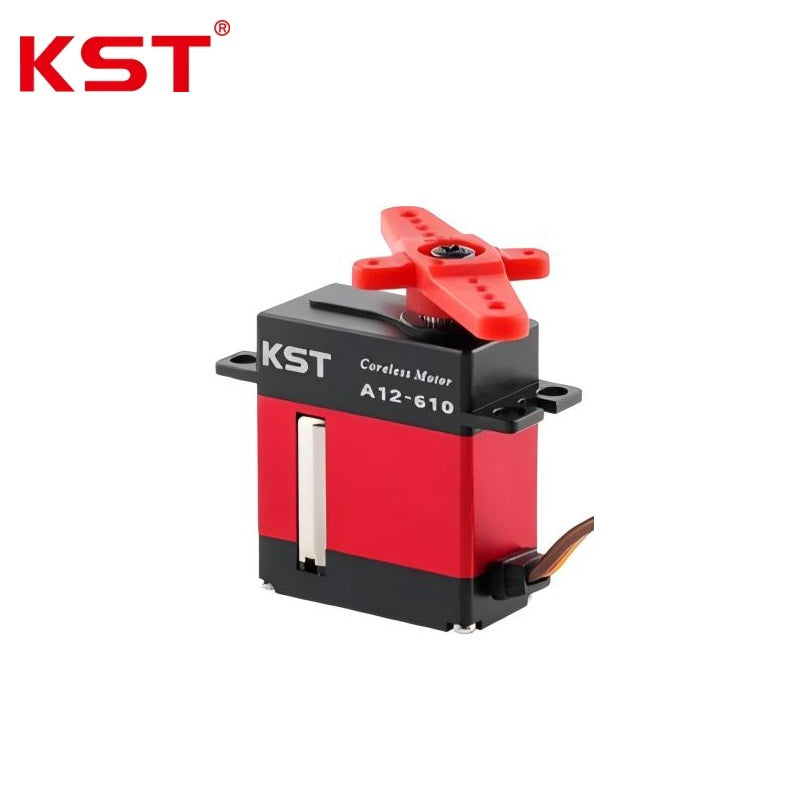

KST A12-610 Servo Motor

$35.99

Version

A12-610

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	Value
Performance & Electrical Ratings:
Rated Voltage	DC 7.4 V
Operating Voltage Range	DC 4.8 V - 8.4 V
Stall Torque	0.55 N.m @ 4.8 V; 0.65 N.m @ 6.0 V; 0.80 N.m @ 7.4 V; 0.90 N.m @ 8.4 V
Operating Speed (60deg Rotation)	0.13 sec @ 4.8 V; 0.12 sec @ 6.0 V; 0.11 sec @ 7.4 V; 0.10 sec @ 8.4 V
Working Frequency	1520 us / 333 Hz
Control Specifications:
Default Travel Angle	+/-50 deg (Total 100 deg)
Control Signal Voltage	HIGH: 3.3 V (min) ~ 5.0 V (max); LOW: 0.0 V (min) ~ 1.5 V (max)
Control Pulse Width Range	800 us - 2200 us
Position Command Pulse Width (-50 deg / 0 deg / +50 deg)	1000 us / 1500 us / 2000 us
Internal Characteristics:
Motor Type	Coreless DC Motor
Gear Set Material	Hardened Steel
Position Feedback	Potentiometer
Physical & Environmental:
Housing Material	Aluminum Alloy
Overall Dimensions	23 mm x 12 mm x 27 mm +/- 0.2 mm
Weight	20 g +/- 10%
Operating Temperature Range	-10 deg C ~ +65 deg C
