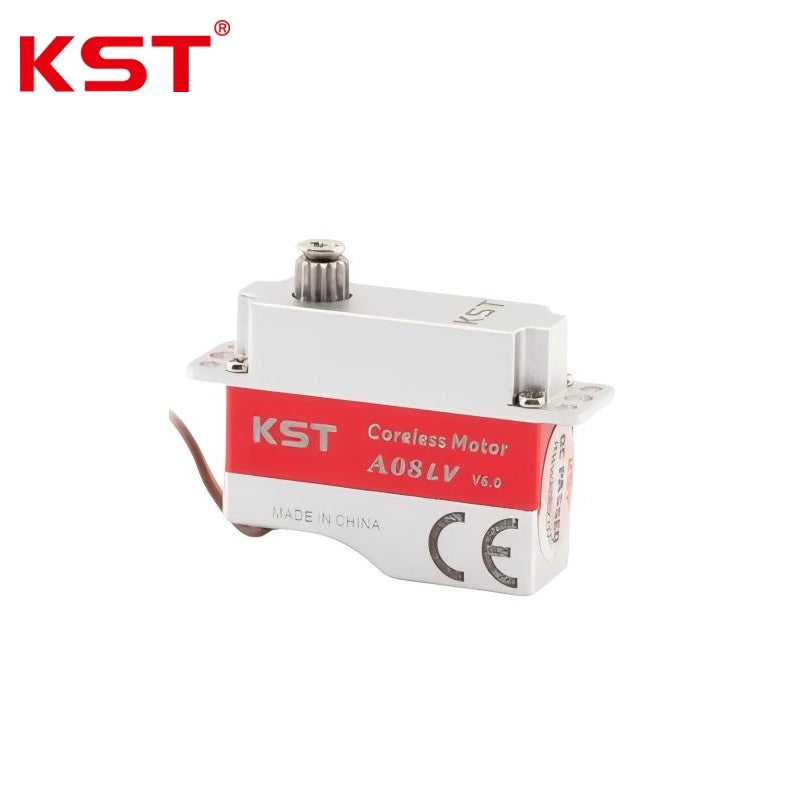

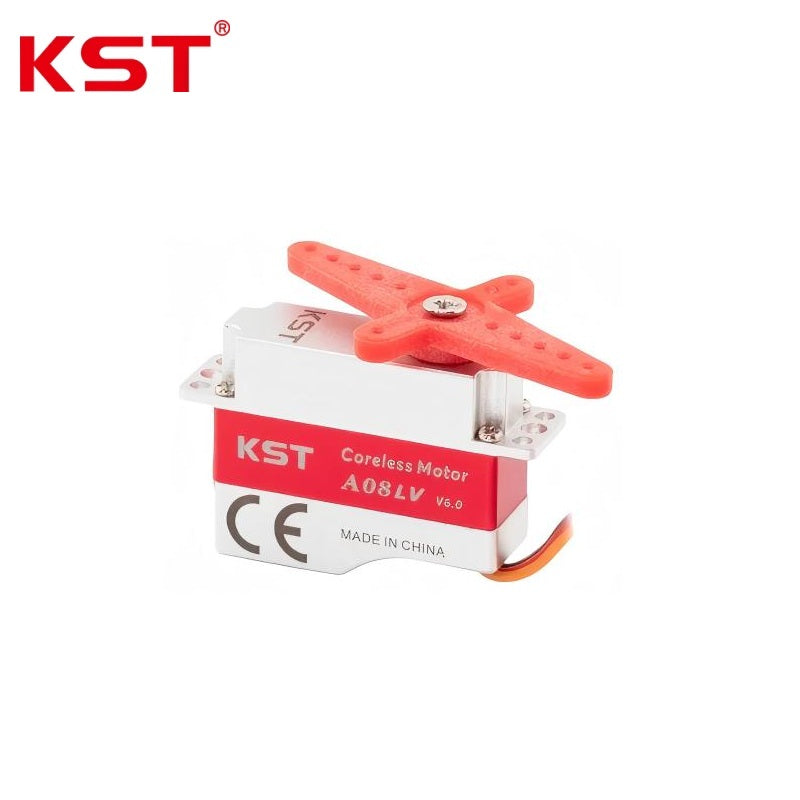

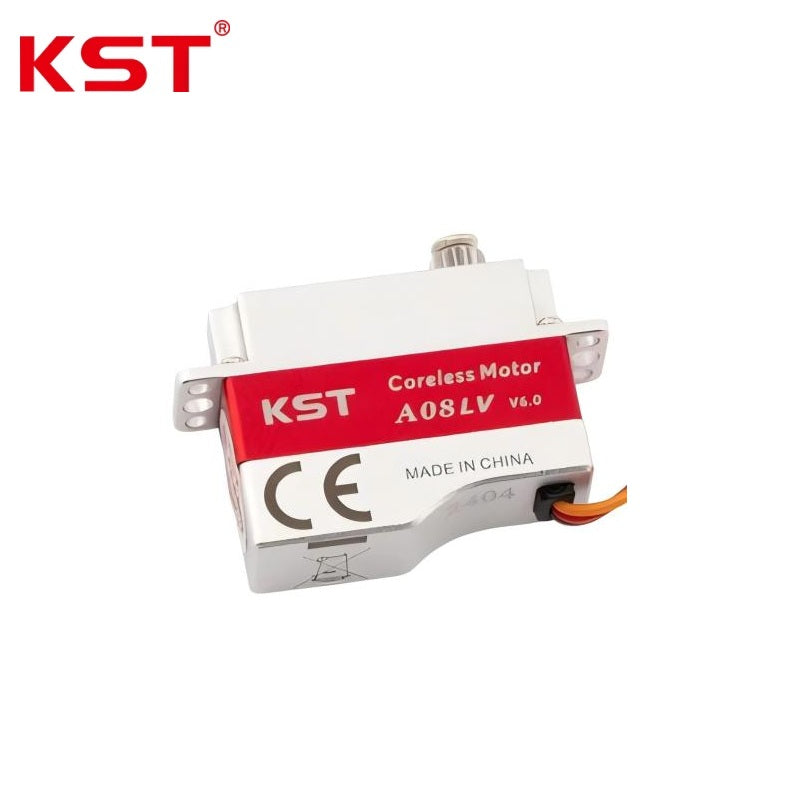

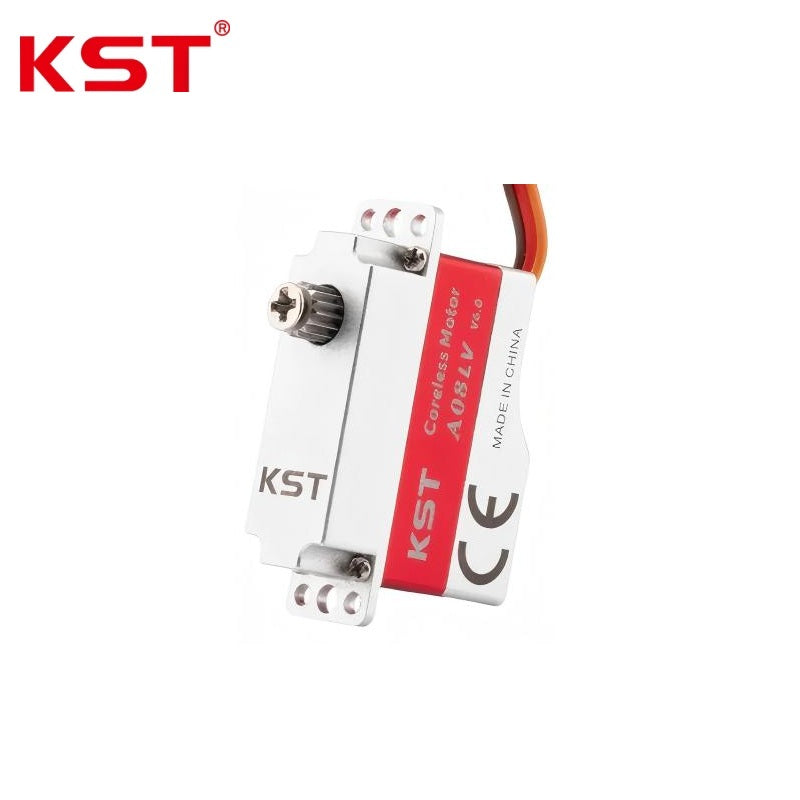

KST A08-LV Servo Motor
Regular price
$44.99
Unit price
KST A08-LV Servo Motor - A08-LV is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
KST A08-LV Servo Motor
Regular price
$44.99
Unit price
KST A08-LV Servo Motor - A08-LV is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Performance & Electrical Ratings: | |
| Rated Voltage | DC 4.2V |
| Operating Voltage Range | DC 3.5V - 4.2V |
| Output Torque | 1.2 kgf.cm @ 3.5V; 2.0 kgf.cm @ 4.2V |
| Rotational Speed | 0.18 sec/60deg @ 3.5V; 0.15 sec/60deg @ 4.2V |
| Operating Frequency | 1520 us / 333Hz |
| Control Specifications: | |
| Default Rotation Travel Angle | +/-60 deg (Total 120 deg) |
| Control Signal Voltage | High level: Min.3.3V, Max.5.0V; Low level: Min.0.0V, Max.1.5V |
| Effective Control Pulse Width | 900 us - 2100 us |
| Position-matched Pulse Width (-60 / 0 / +60 deg) | 1000 us (-60 deg) / 1500 us (0 deg) / 2000 us (+60 deg) |
| Internal Characteristics: | |
| Driving Motor Type | Coreless DC Motor |
| Gear Train Material | Hardened Steel |
| Position Feedback Sensor | Potentiometer |
| Ball Bearing Quantity | 2BB (2 pieces of ball bearing) |
| Physical & Environmental: | |
| Housing Case Material | Aluminum Alloy |
| Overall Housing Dimension | 23.5 mm x 8 mm x 19 mm +/- 0.2 mm |
| Net Weight | 7 g +/- 10% |
| Operating Temperature Range | -10 deg C ~ +65 deg C |
