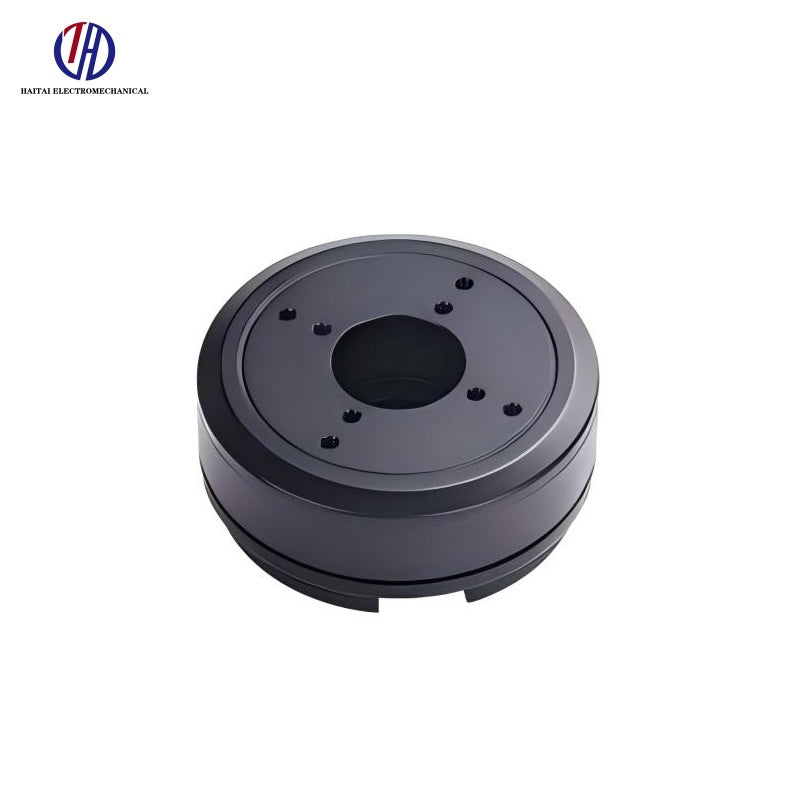

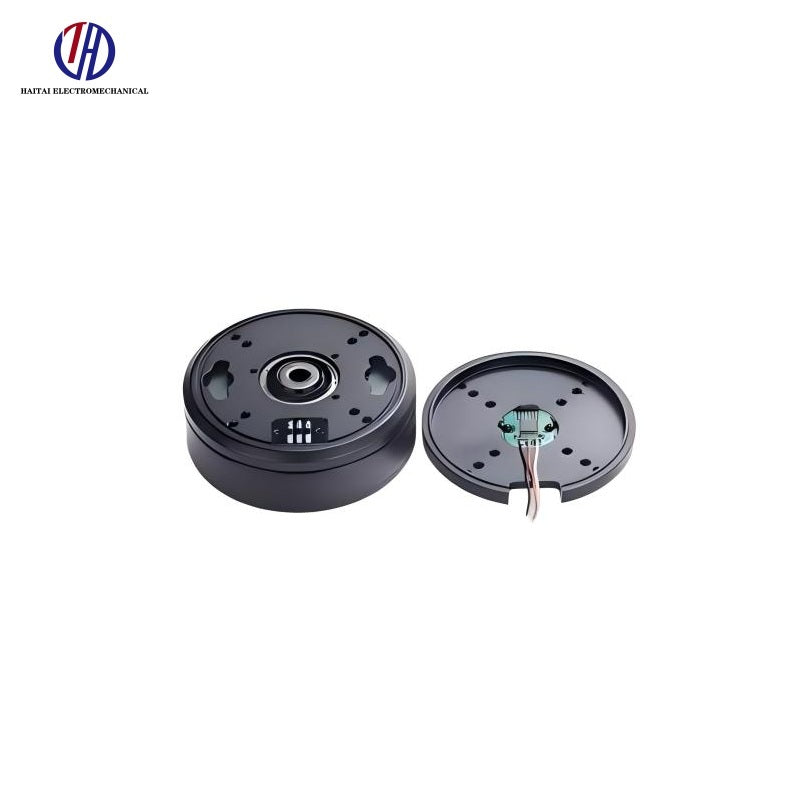

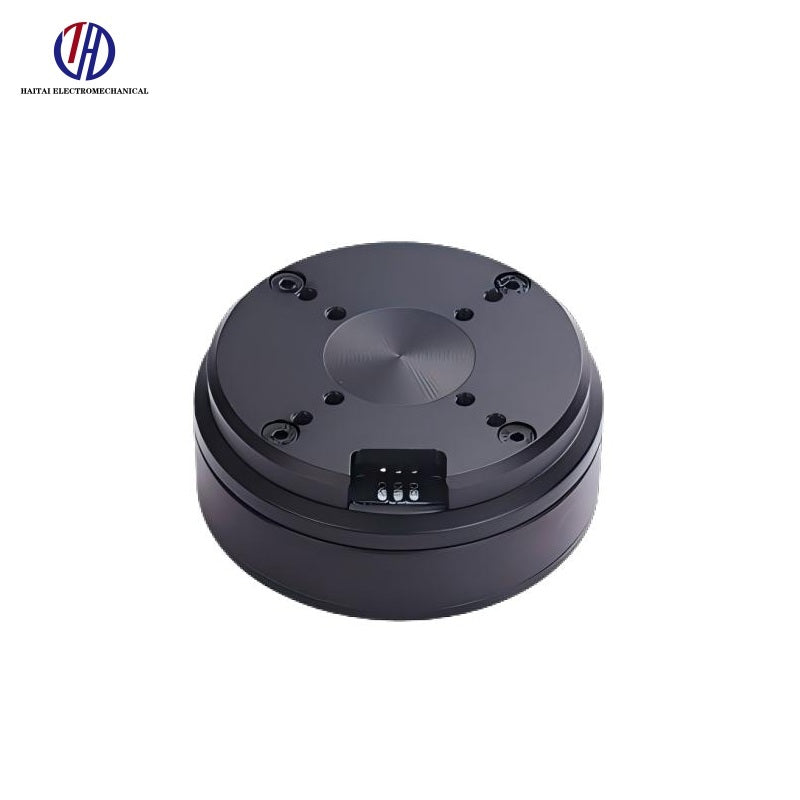

HAITAI HT6010 Motor
Regular price
$60.00
Unit price
HAITAI HT6010 Motor - HT6010 / Without encoder is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
HAITAI HT6010 Motor
Regular priceFrom
$60.00
Unit price
HAITAI HT6010 Motor - HT6010 / Without encoder is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Voltage | 36 V |
| Rated Current | 1.30 A |
| Rated Torque | 0.80 N.m |
| Rated Speed | 294 RPM |
| Peak Speed | 564 RPM |
| Peak Torque | 1.59 N.m |
| Peak Current | 2.70 A |
| Interphase Resistance | 10.28 Ω |
| Interphase Inductance | 12.35 mH |
| Speed Constant | 16 rpm/V |
| Torque Constant | 0.61 N.m/A |
| Rotor Inertia | 514 gcm² |
| Number of Pole Pairs | 14 |
| Motor Weight without Encoder | 241.4 g |
| Motor Weight with Encoder | 270.4 g |
| Motor Size without Encoder | Ø68 × 24 mm |
| Motor Size with Encoder | Ø68 × 30 mm |
| Encoder Type | AS5048A / AS5600 / AS5047P |
| Working Temperature | -10 ~ 80 °C |
| Max Demagnetize Temperature | 120 °C |
